Product Description

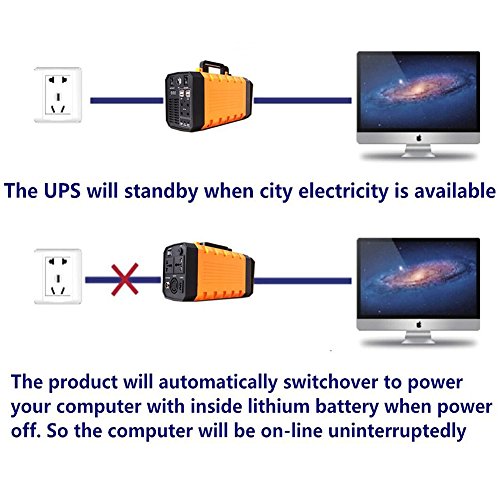

Portable Uninterruptible Power Supply, Pure Sine Wave Output, 500W UPS Battery Backup 12V 26AH 288WH Online UPS for Outdoor or Indoor,
Emergency power back up, Convenient to use, AC power unit, also used as lithium generator, can connect with solar panel (solar panel can
be Mono Poly with 18V, less than 100W)
Activities Long Time Standby
Backup Time
3 hours (PC Display)
96 hours (12V LED)
55 times (for 5V mobile charger)
8 hours (Laptop 13')
6 hours (50W Fan)
4 hours ( 32' LCD TV)
14 hours (20W Energy-saving lamps)
Electricity Parameter
MODEL: CBC-500
Battery Capacity: 12V 26Ah 288Wh
Output power: Rated:500W Peak:1000W
intput voltage: AC 110V 50/60Hz
Output voltage: 220V 50Hz / 110V 60Hz
DC Output(4 ports): 12V/4A 5V/2A
LED Lighting: 1W ,Max Can be 3W
Output Waveform: Pure Sine Wave
The Reaction Time: ≤5MS
Charge Input Solar Panel(Optional): 18V 100W
Overload: After disconnecting the AC output overload,AC indication red.Disconnect the load,after rebooting recovery
Short circuit protect: After a short circuit Disconnect the AC output,disconnect the load,after rebooting recovery

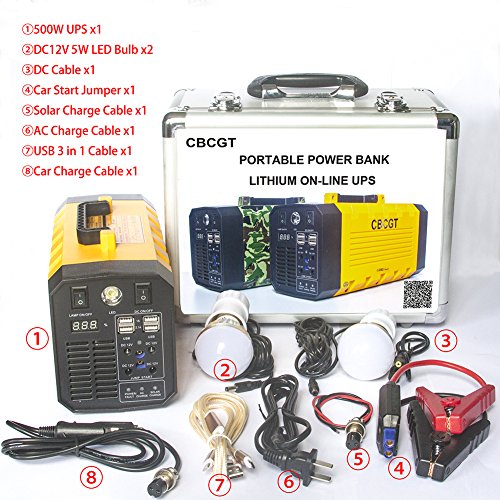

Package Including
1*Iron Container Box
1*UPS Power Bank
1*Power cord
1*Solar Connector
2*5W DC 12V LED Bulbs
1*USB Cable
1*Car Start Jumper
1*User Manual
1*DC Cable
