Product Description

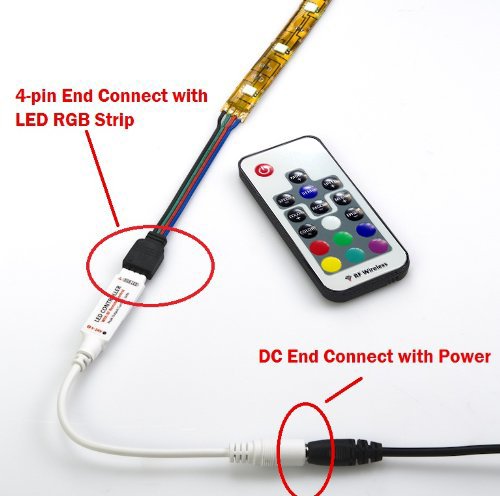

Our new LED controller kit is with such a purpose. This time, we combined the mini controller with RF remote, providing a more convenient way to realize the best visual effect of your RGB strip.

About the Mini Controller
this mini controller is tiny in its size(easy to be concealed) but great in its function. Through connecting with this controller, it will be able to control the LED RGB strips bu the accompanied RF controller,achieving different modes and colors.

Specifications:

--Input voltage: 5V-24V/DC
--Working current : 12A
--Output : 3 channels, common anode connection
--Overall dimension: 1.6(L)×0.5(W)×0.2(H) inch
--Female connector on the other side for connecting with power supply

About the RF Remote
the RF wireless remote signal can pass through barrier, it gets a longer control distance(about 15 meters at open area) so it is not necessary to aim at the main unit when operating.

Function buttons on RF remote:

--ON / Standby: to turn ON or switch to standby mode.
--MODE+ / MODE-:dynamic mode adjustment. Switch to dynamic mode from static color mode, or change between dynamic modes.
--SPEED+ / SPEED- : Adjust speed in dynamic mode for 5 levels.
--COLOR+ / COLOR- :static color adjustment. Swith to static color from dynamic mode,or between static colors, 20 static colors.
--BRIGHT+ / BRIGHT- : adjust static color brightness. Strip will switch to static color if press it at dynamic mode.
--DEMO : switch to Demo mode. At Demo mode, strip will cycle 9 dynamic modes and 3 times for each mode.
--SINGLE COLOR SELECT:white/red/green/blue/yellow/ching/pink

Caution: RF remote is driven by 3V CR2025 button battery. Please try to replace with the same type battery.

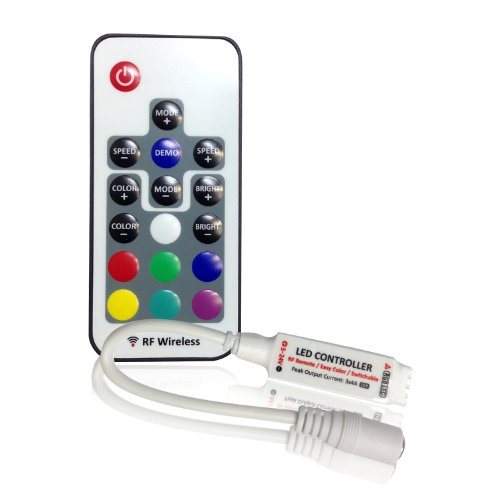

Package including: 1×mini RGB controller and 1×RF wireless remote.

Feature

Convenient LED controller kit--mini RGB controller + RF wireless remote
Ultra slim design RF remote, Memory function
Input voltage 5-24V , 3 output channels with 12A working current Controller
1 controller matches with 1 RF remote, both enable you to control RGB strip
19 dynamic mode, 20 static colors, 5 brightness grade and 10 speed grade
Brand : TORCHSTAR
Item model num : Y009C2Z3D6
MPN(PartNumber) : KBCRLK-5V24V12-17KYRM
EAN : 0741459502072
