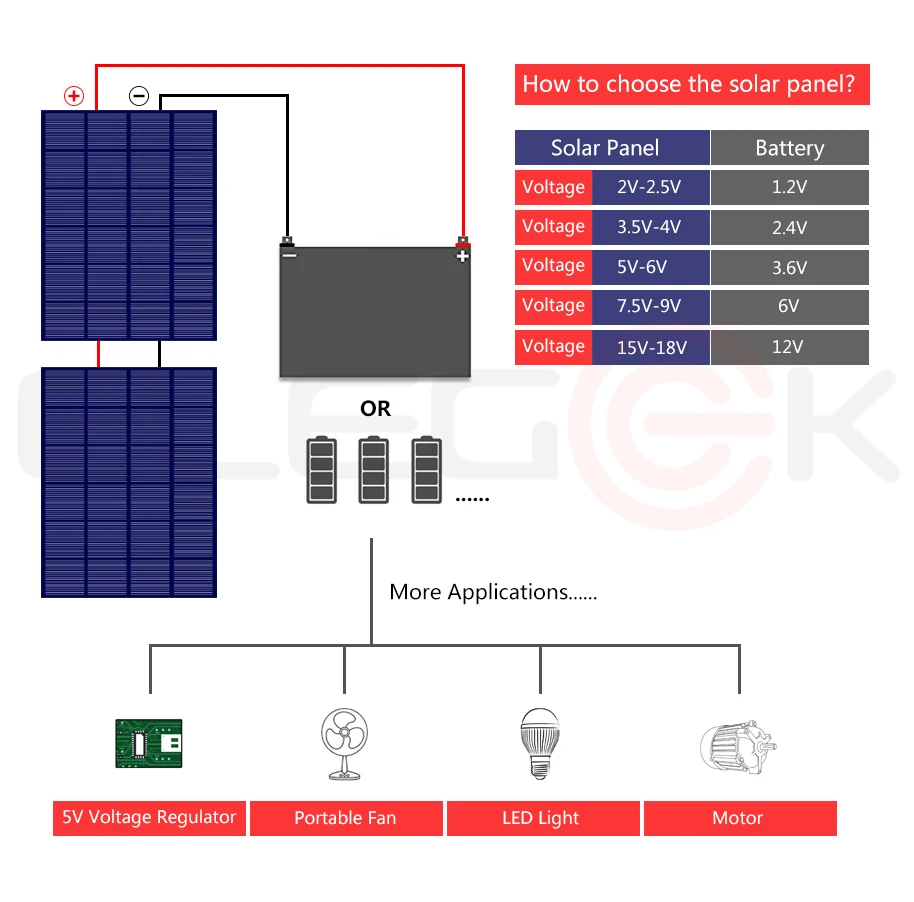

Below table show the solar system configuration relationship between storage batteries and solar cell panels.
| Your storage DC Battery | Solar panel |
| 1.2V | 2V-2.5V |
| 2.4V | 3.5V-4V |
| 3.6V | 5V-6V |
| 6V | 7.5V-9V |
| 12V | 15V-18V |
Features:
-High Efficiency Miniature Solar Cell, can easily be arranged for larger load applications including higher voltage and current loads.
-Miniature compact size with solid attractive casing. With these solar cell panels to power a convenient appliance with free green energy from the sun.
Technical Date:
-Semi-flexible
-DC Output with alligator clip
-Size: 440mm*190mm
-Voltage: 18V±1V
-Current: 550mA Max
-Power: 10W
-Efficiency: 17~21%
-Material: Polycrystalline Solar Cell
-Weight: 0.365kg/Piece
-DC Output with alligator clip
-Size: 440mm*190mm
-Voltage: 18V±1V
-Current: 550mA Max
-Power: 10W
-Efficiency: 17~21%
-Material: Polycrystalline Solar Cell
-Weight: 0.365kg/Piece
Packages include:
1 * Solar Panel Charger
1 pair * Alligator Clip
Remark:
1. Normally we use standard black colour base board, but the colour might be tiny different because of different producing batch.
2. To achieve a certain parameter, the arrangement of the solar cell silicon wafers might be with tiny difference, but the specification is the same as described.
3. The solar cell panel will be covered by PE film, some may with air bubble under the film, it will not effect the performance, you can remove the film, just like the film on the cellphone panel.
4. The colour of silicon solar cell is blue or black.
5. As solar panel, the sunlight strength will effect the performance of the solar cell, please use it in good sunlight.
