Features:
* Full-motion CCTV video at distances up to 330m(1082ft) when used with any passive transceiver.
* Up to 1500m(4921ft) with any active UTP video receiver.
* "Press-Fit" terminal block.
* NTSC， PAL， and SECAM video formats.
* No power required.
* 60dB crosstalk and noise immunity.
* Compact size and easy installation.

Specifications:
Frequency response: DC to 8MHz
Attenuation: 0.5dB typ
CMRR: 60dB
Connectors: Male BNC and "Press-Fit"terminal blocks
Impedance: BNC : 75 ohms ， Terminal: 100 ohms
Working Temperature: -10°C to + 70°C
Storage Temperature: -30°C to + 70°C
Humidity: 0 to 95%
Material: ABS plastic
Package Size: Approx. 8.7*11.2*2.2cm/3.42*4.41*0.86in
Package Weight: Approx. 48g/1.69oz

Package List:

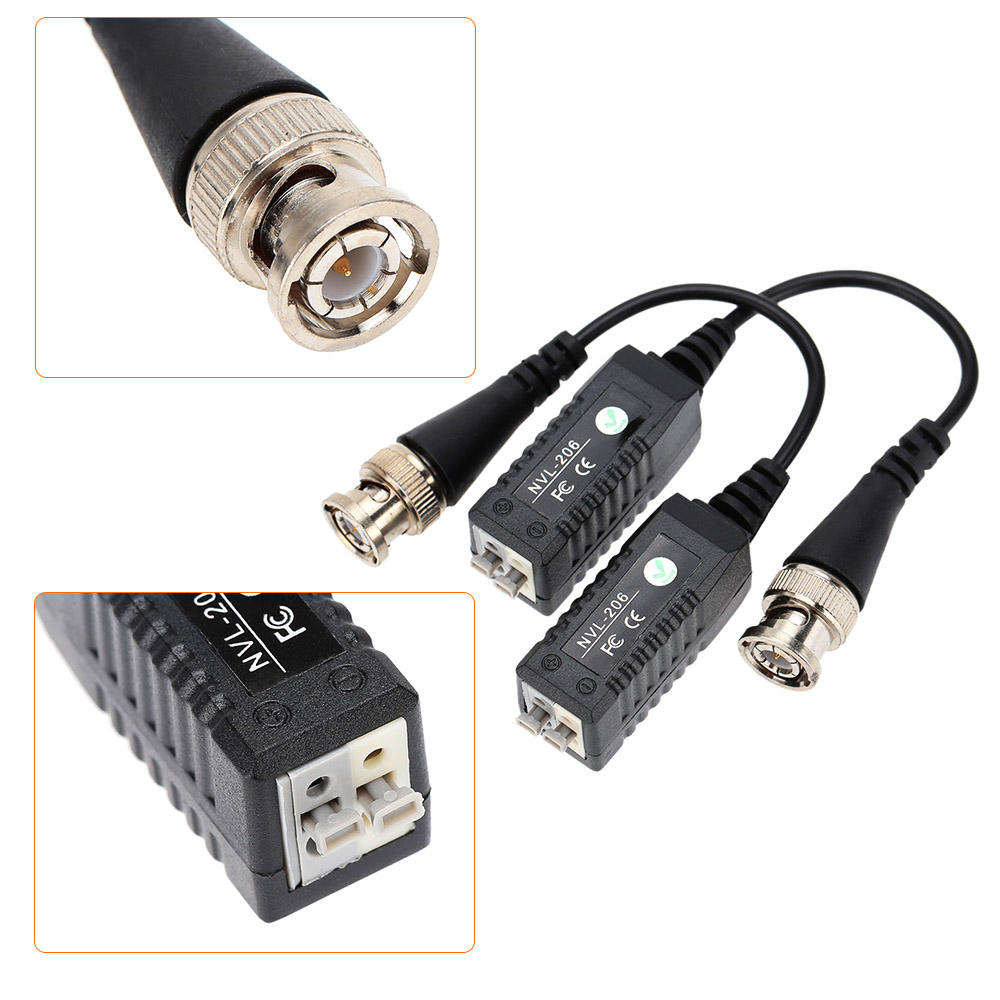

2 * Video Balun Transceivers
