Item Descriptions:
Wavlink USB 3.0 UG39D4 docking station features:
Using this product, you can connect various devices to a laptop computer, tablet, ultra book, etc. with just one USB cable.
We also support Windows 10 by updating the driver and firmware.
Even PCs with USB 2.0 ports are compatible, so you can connect without problems.

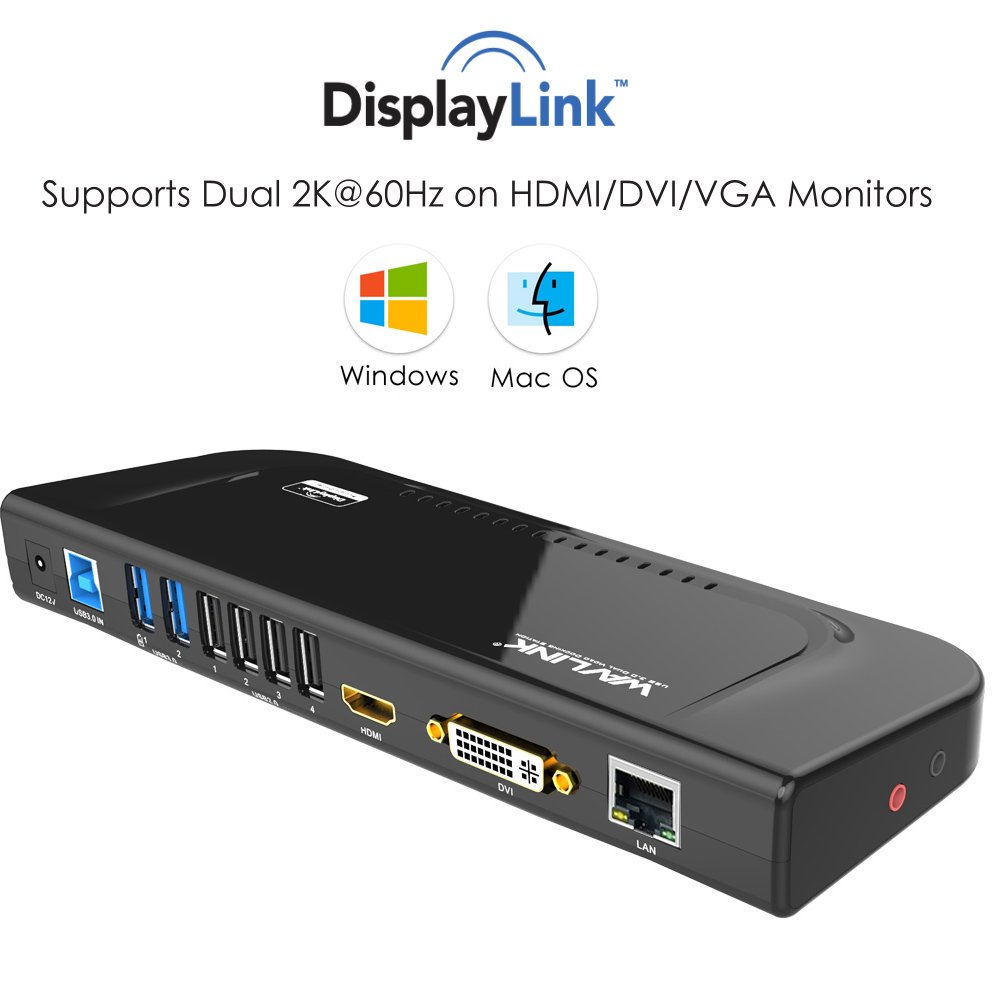

If you connect an external monitor via two graphic ports, HDMI and DVI, you can configure it as mirroring or extended desktop, just like a monitor directly connected to the system.

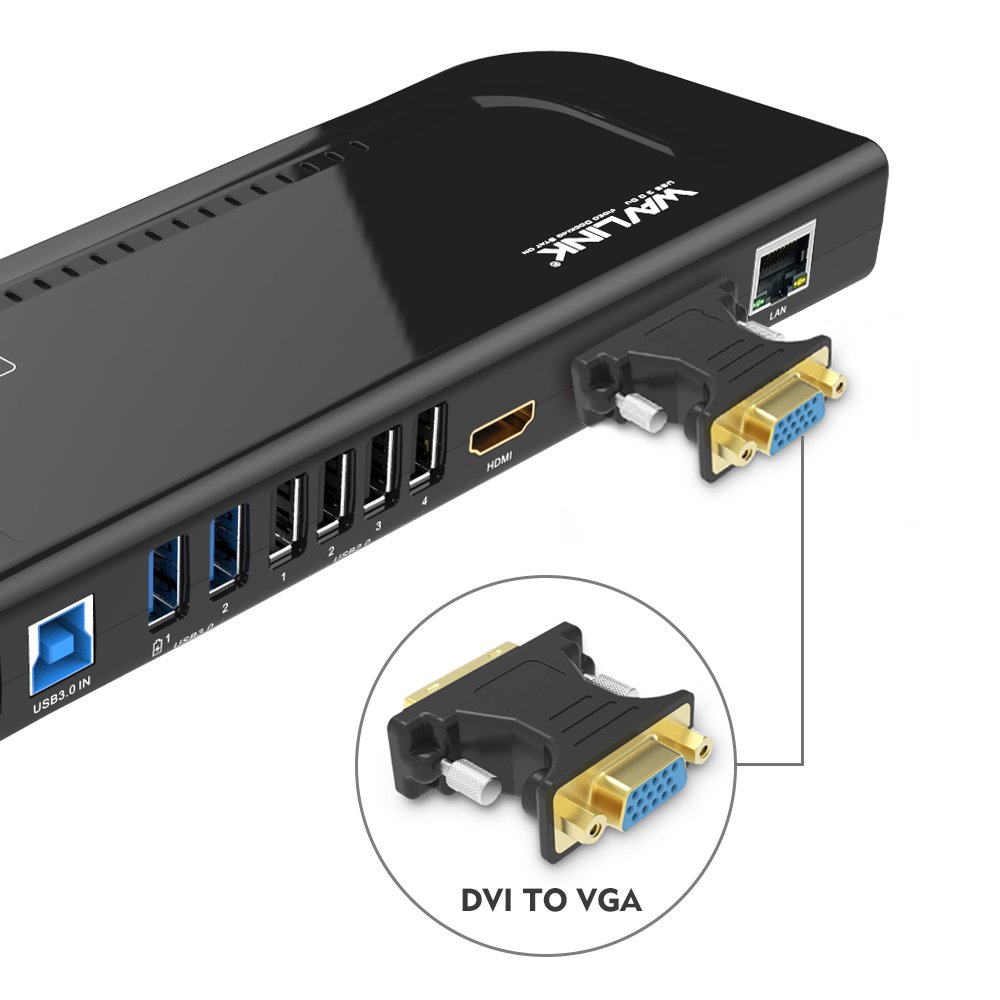

Since a DVI to VGA conversion adapter is also included, you can also connect a VGA monitor.

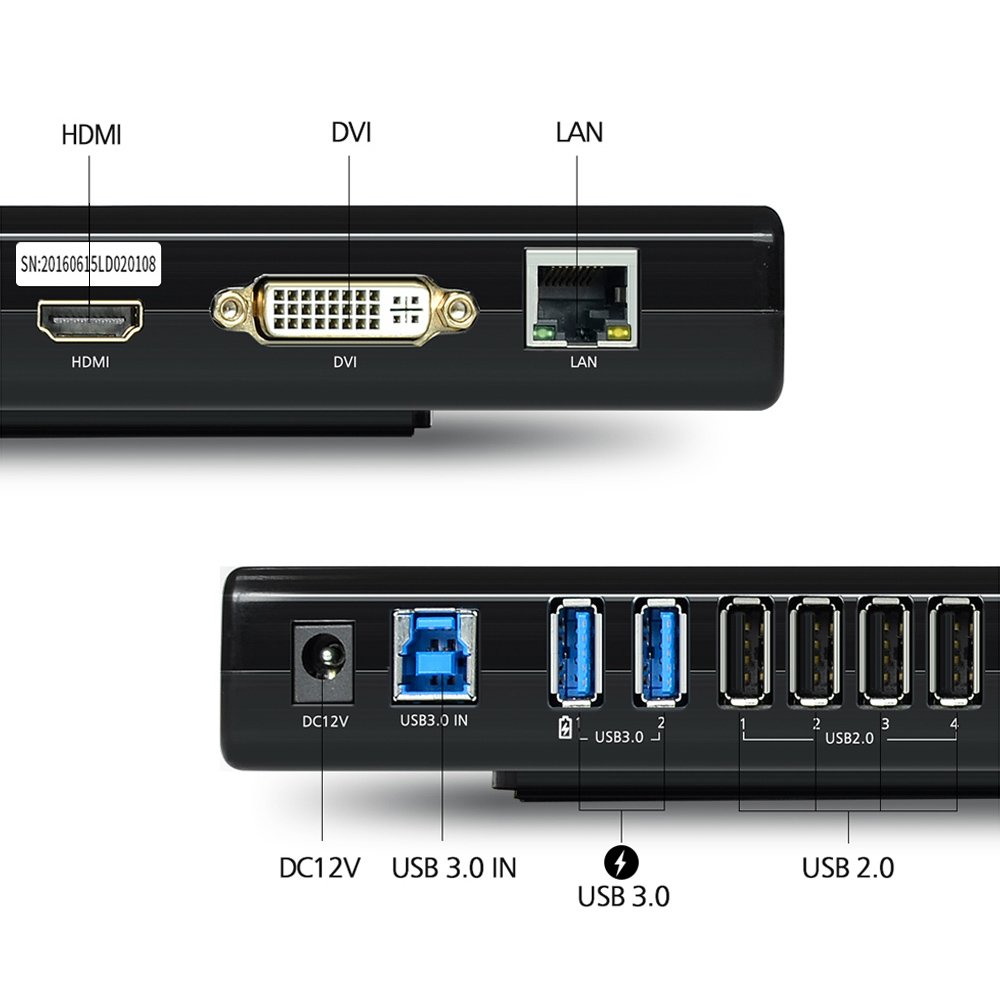

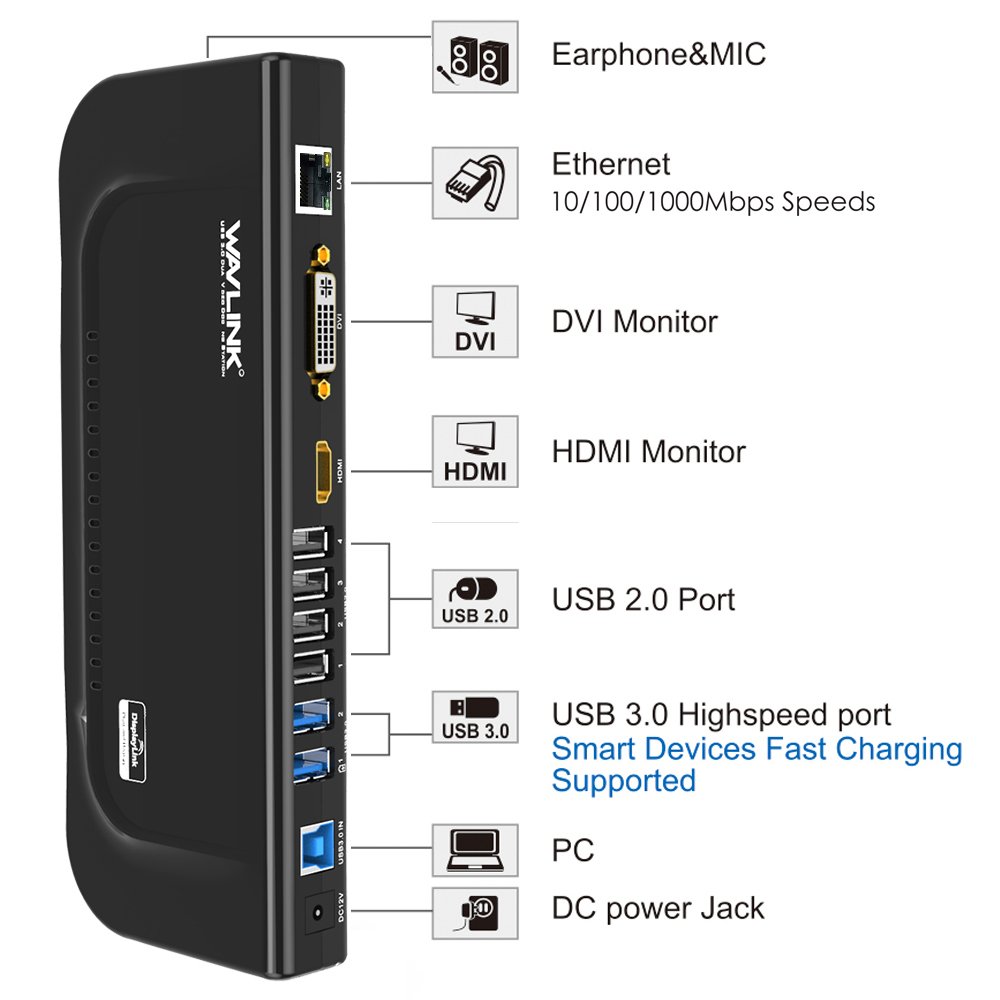

It also has a Gigabit Ethernet port, a voice input / output port, and two quick 3.0 charging ports, two USB 3.0 and two USB 2.0 ports.
Note: The fast charge function is available when the PC is in sleep mode or when the device is not connected to the PC.
Wavlink USB 3.0 UG39DK4 docking station specification:

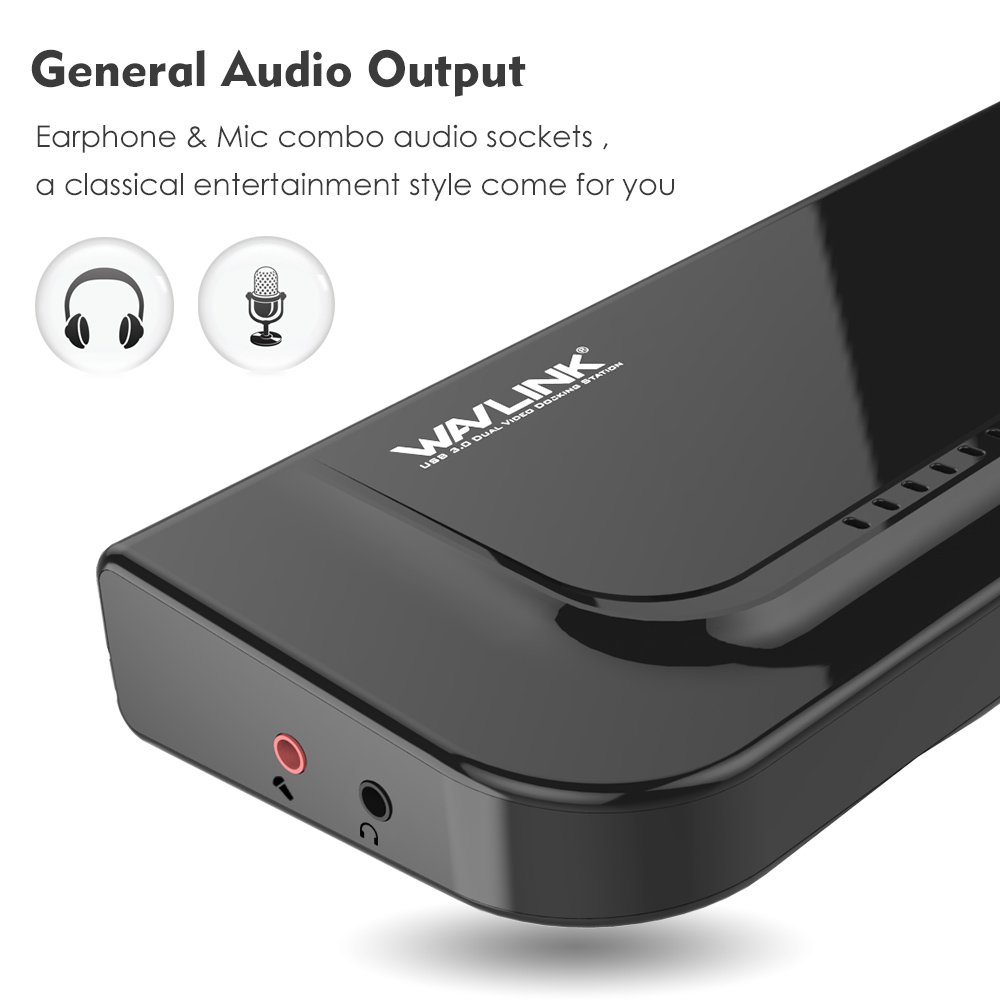

One HDMI port and one HDMI port (HDMI and DVI output maximum resolution supports display resolution of 2048x1152), RJ-45 Gigabit Ethernet port (also supports 10/100/1000 Ethernet), external headphones
, Speaker audio output port, microphone input port, two USB 3.0 ports (corresponding to external hard disk and USB graphic adapter etc), 4 USB 2.0 ports (corresponding to mouse, keyboard, printer etc.)
Note 1) When setting the HDMI monitor resolution to 2560 × 1440, only one monitor can be connected.
The maximum resolution for each of the two monitors is limited to 1920 x 1200.
When setting to 2560 x 1440 resolution, you need to use high speed HDMI cable and the refresh rate is up to 50 Hz.
It supports up to 60 Hz at lower resolutions.
When setting to 2560 x 1440 resolution, the monitor side must also support this resolution.
Please note that many 2560 x 1600 compatible monitors do not support 2560 x 1440 resolution.
System requirements:
It supports Windows Vista / 7/8 / 8.1 / 10 / XP, Mac OS 10.2 or later, Linu.
Note: 64-bit version of Windows XP is not supported.
Windows Server version is not supported.
Processor: 2.0 Ghz Core 2 Duo or later
RAM: 1 GB
Recommended requirement
(Full Screen Video Playback)
Processor: Core i3 i5 or i7 2 + GHz
RAM: 4 GB
Packing content:
1 x Wavlink USB 3.0 Universal Docking Station
1 x 12V / 2A (24W) PSE certified power adapter
1 x USB Type A - Type B 3.0 cable (USB 2.0 compatible)
1 x DVI to VGA conversion adapter -
1 x Driver - CD
1 x Owner's Manual
Features:
- Please enter model number Confirm this is compatible:
- Two USB 3.0 ports support up to 5 Gbps super speed data transfer rate.
- Four USB 2.0 are also available.
- HDMI and DVI (or converted to VGA using the attached conversion adapter) display output can be extended to two monitors at the same time.
- Gigabit Ethernet ports support speeds of 10/100/1000 Mbps for wired connections to the Internet.
- It supports Windows 10 / 8.1 / 8/7 and Legacy XP system and Mac OS X.
- Linux / Unix is not supported.
- Compact size, LED display status, easy setup, multi-function operation performance bring a new lifestyle.
Product information:
Shipping Weight: 698 g
Package Dimensions: 5.99 x 15.19 x 34.80 cm
