Product Description

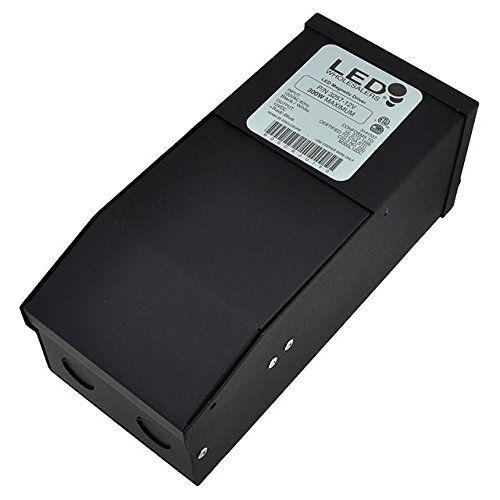

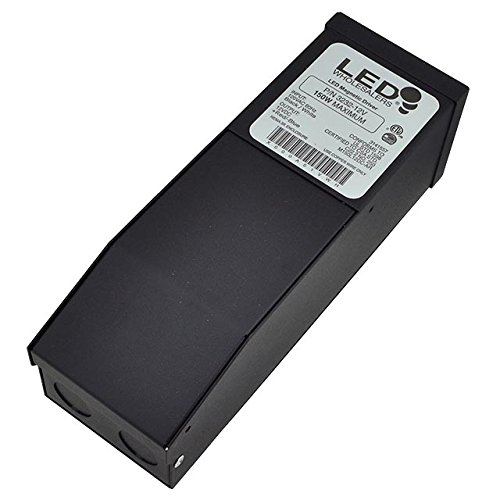

This is the most compact LED driver on the market with a magnetic transformer core. It is equipped with two circuit breakers, one on the input and one on the output, which protect both the load and driver. The driver is encased in a coated metal box that includes 2 knock-outs to enable easy installation that complies with electrical code requirements.

Specifications
* Max Load: 60W
* Input Voltage: 120V AC, 60Hz
* Open Circuit Output Voltage: 11.9V DC
* Output Voltage Full Load: 10.8V DC
* Max Output Current Full Load: 5.9A
* Power Factor: 0.84
* Coil Former: Double Section Bobbin
* Thermal Class: B130℃
* Primary Leads: PVC 600V #18
* Secondary Leads: PVC 300V #16

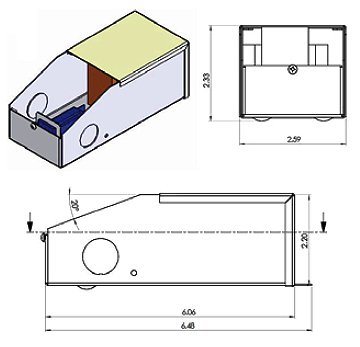

* Dimensions (LxWxD): 6.55 x 2.25 x 2.55"
* Warranty: 1 year

Feature

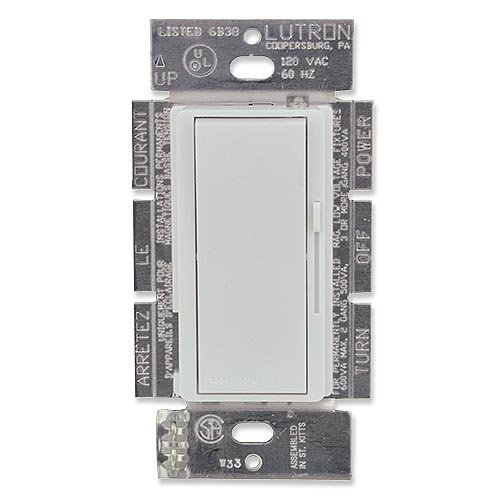

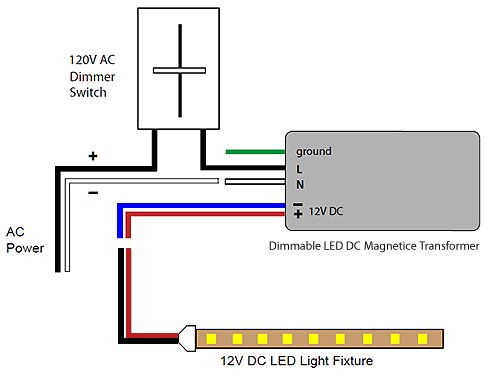

Dimmable with most standard MLV TRIAC (leading edge) dimmer switch
Dual protection - primary and secondary circuit breakers
Nema 3R Enclosure - suitable for outdoor use
Two knock-outs for conduit
Class 2; ETL listed; certified to CSA standard
Brand : LEDwholesalers
Item model num : 3231-12V
MPN(PartNumber) : 3231-12V
