JJRC JJPRO P130 racing quadcopter owns a mini designed but tough structure. The 800TVL camera provides an exciting first person view for players. JJPRO P130 is the latest racer from JJRC model with a tough structure， so any 3D movement can be precise， stable and flexible. Take a breath， open your eyes， a new world before you. If you don't get one， you will never know how much fun it can bring to you!













Features:
CC3D Flight Control.
Lightweight airframe with nice durability.
It can do 3D aerobatic flight.

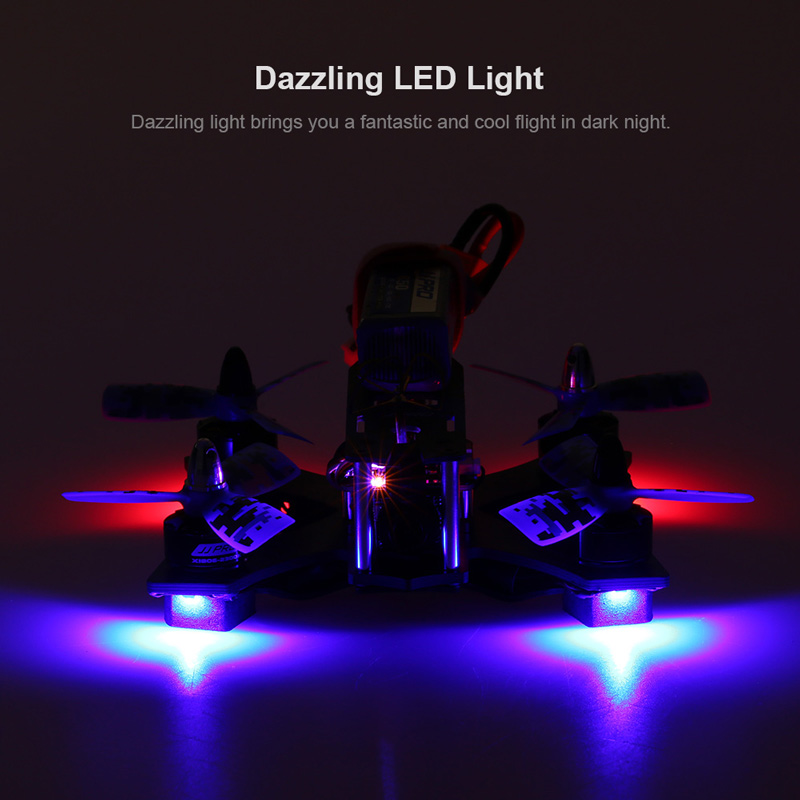

Dazzling LED light brights you a fantastic and cool flight in dark night.
1806 2300KV brushless motor. Support 2-3S Lipo battery， the max current is 13A， the max force is 200-350G.

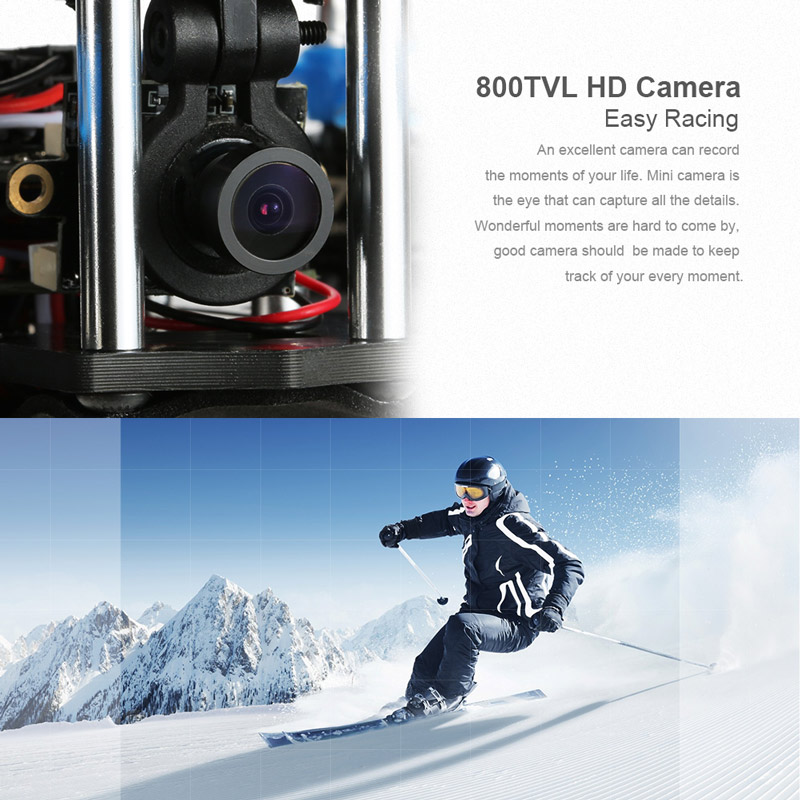

800TVL HD camera with 5.8G 40ch transmitter provide you with a clean image and reliable link to your FPV goggles or monitors (not included).
Flycolor Multi-Rotor Brushless ESC. Bulit-in BES MINI ESC with 5V 1A. The Max Current of ESC is 12A， the moment current is 18A， support 2-4S Lipo.
New 3K pure carbon fiber frame， excellent body design， light while strong. Humanized design of parts， good to assemble and disassemble for the professional player.

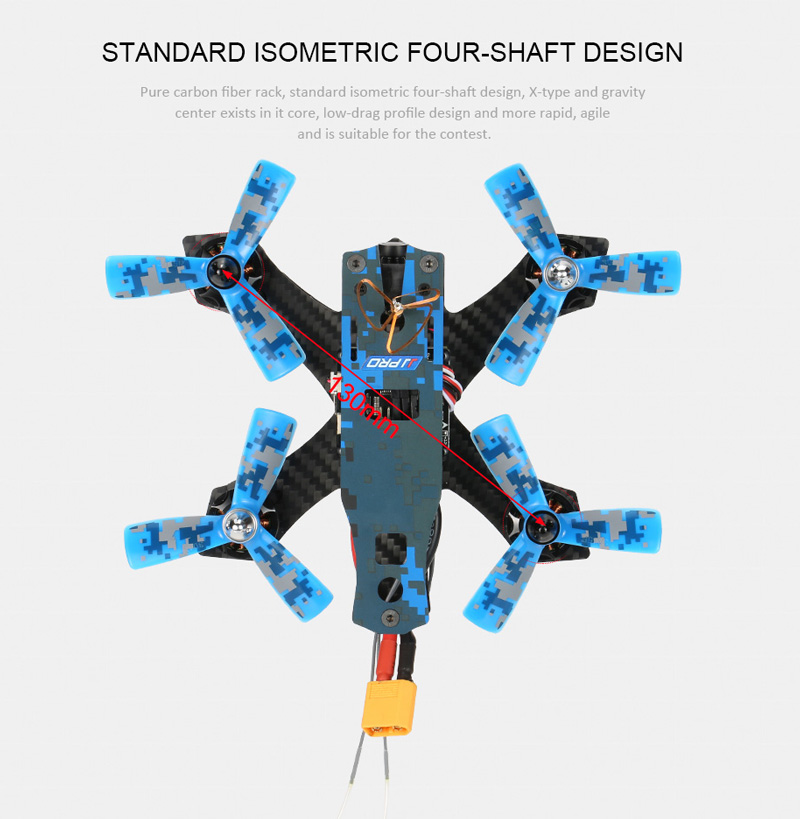

Isometric four shaft design， X-type and its gravity center exists in its core， low-drag profile design and more rapid， agile and is suitable for the contest.

Specifications:
Brand: JJRC
Name: JJPRO-P130 Racing Drone
Wheelbase: 130mm

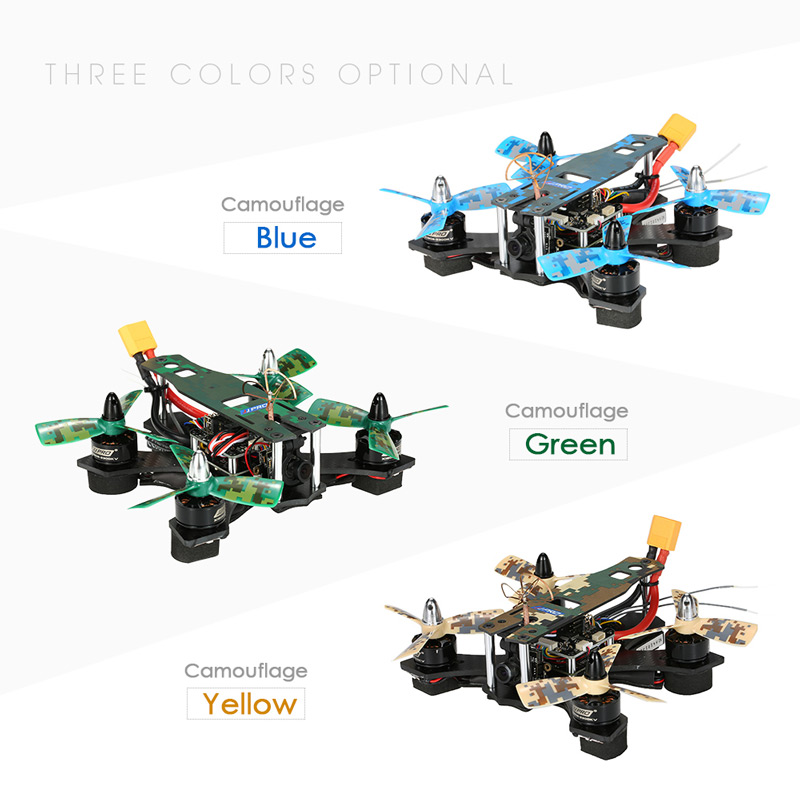

Color: Camouflage blue/green/yellow optional
Material: Carbon fiber
Flight controller: CC3D
Brushless motor: X1806-2300kv
ESC: Flycolor 12A
Receiver: FS-iA6 6CH

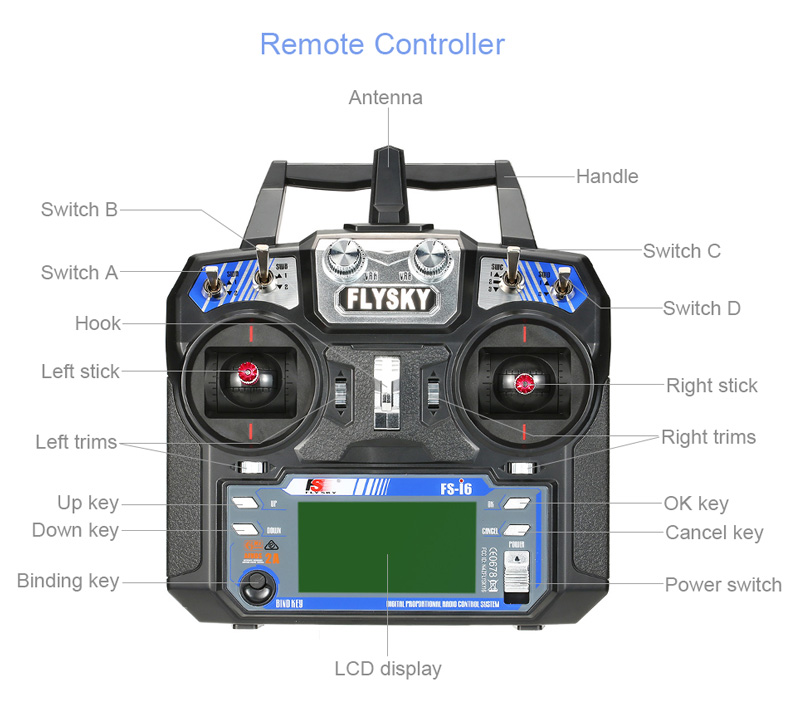

Remote controller: 2.4GHz
Controller battery: 4 * AA batteries not included
Propeller: 3 inch(3045) propeller

Camera
Resolution: 800TVL Lens
Operating voltage: 3.6-5.5V
Image sensor: 1/3" CMOS
Angle: 150° FOV horizontal angle
170° DFOV opposite view angle
Signal system: NTSC/PAL(one key switch)
Power consumption: 380mA@3.7V
Output impedance: 75 Ohm
Lens diameter: 2.1mm IR coated FOV150°

Image Transmission
Signal system: NTSC/PAL
Output impedance: 75 Ohm
Intensity of the output signal: 12-14dB
Output power: 25mW
Wireless channels: 40CH
Operating voltage: 2.7-5.5v
Power supply: 370mA@3.7V

Quadcopter battery: 11.1V 850mAh 30C Li-po
Battery dimension: 65 * 25 * 23mm
Plug: US/UK/EU plug optional
Flying time: About 6 minutes
Charging time: 25-30 minutes
Item weight(not including battery): 220g

There may be some deviation due to manual measurement.

Package information:
Package size: 42.5 * 28 * 10.5cm / 16.7 * 11 * 4.1in
Package weight: 1232g / 2.7lb
Brand gift box package

Notice:
The package used for these series of product is the same， please prevail in kind.
This RC model is not a toy and is not suitable for children under 14 years old， keep it away from children.
Carefully read the instruction before any use， if you are a beginner， it's advisable to be assisted by an experienced adult.

Caution for the battery:
Don't over-charge， or over-discharge batteries.
Don't put it beside the high temperature condition.
Don't throw it into fire.
Don't throw it into water.

Package list:
1 * JJPRO P130 Racing Drone
1 * Remote Controller
1 * Receiver
1 * 5.8G Image Transmitter(with CMOS 800TVL camera)
1 * Compact Charger
1 * Charger Cable
8 * Propellers
1 * 11.1V 850mAh 30C Li-po Battery
1 * Battery Tape
1 * Sticker
1 * Wrench
2 * Camera Mount
1 * English Manual

$$
$$
$$
$$
$$
$$
$$
$$
$$
$$
$$
$$
$$
$$
$$
$$
$$
$$
