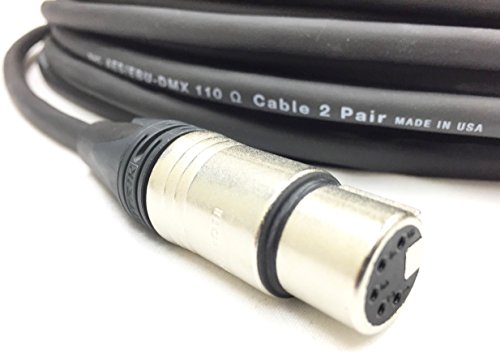

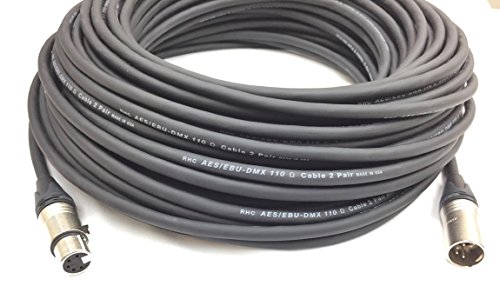

1ft 5-Pin XLR DMX512 Data Cable Male to Female


Studio : Custom Cable Connection

Publisher : Custom Cable Connection

Binding : Electronics

Product Description
The communications standard "DMX512" covers digital multiplexed signals. It is the most common communications standard used by lighting and related stage equipment. DMX512 provides up to 512 control "channels" per data link. Each of these channels was originally intended to control lamp dimmer levels. You can think of it as 512 sliders on a lighting console, connected to 512 light bulbs.

Pinout

  • Pin 1: Shield (ground)
  • Pin 2: Primary Data Complement (-)
  • Pin 3: Primary Data True ( )
  • Pin 4: Optional Secondary Data Complement (-)
  • Pin 5: Optional Secondary Data 2 True ( )

    We use DMX 110ohm Digital 2 Pair Shielded 24Awg Cable.
  • Shield Coverage: 95%
  • Jacket: Matte PVC
  • O.D.: 0.29

    Straight Through Pinout
  • 1- Shield
  • 2- Black
  • 3- White
  • 4- Red
  • 5- Green
