Product Description
Introduction

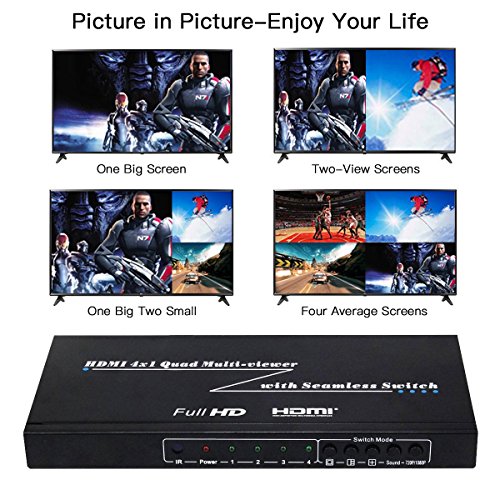

IBIT HDMI Quad Multi-viewer splitter is a high-performance 4 by 1 Quad Multi-view splitter with four HD screens to output on one screen. It supports four High definition input sources to display on one screen, and have three Multi-view effect mode.

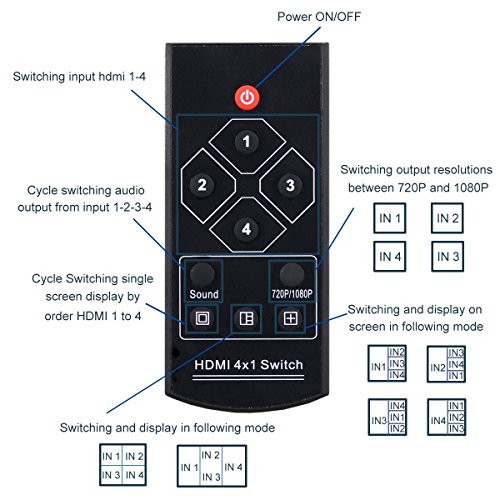

As a switcher, it can also seamlessly switch the four HD input freely. The control methods of the switch is flexible, it can be switched by IR control or the front button.

Note
If you encounter picture cutting problem, please set your TV or monitor in point to point display mode. Installs in minutes, hot plug-and-play. No loss of quality.

Specification
- Excellent Quality and best service
- Compliant with HDMI 1.3a,HDCP 1.2
- Supports 4 by 1 Quad Multi-viewer and seamless switch( 4 in 1 out)
- HDMI input resolution: 24/50/60fps/480i/480p/576i/576p/720p/1080i/1080p
- HDMI output resolution: 720p/1080p/60Hz up to 1080p High Definition resolution
- Supports video color formal: 24bit/deep color 30bit, 36bit
- Supports scaler up, scaler down function
- Max bandwidth:225MHz
- Max band-rate: 6.7Gbps
- Input/Output DDC signal: 5Volts p-p(TTL)
- Operating Temperature:(-15 to -55)

Compatibility

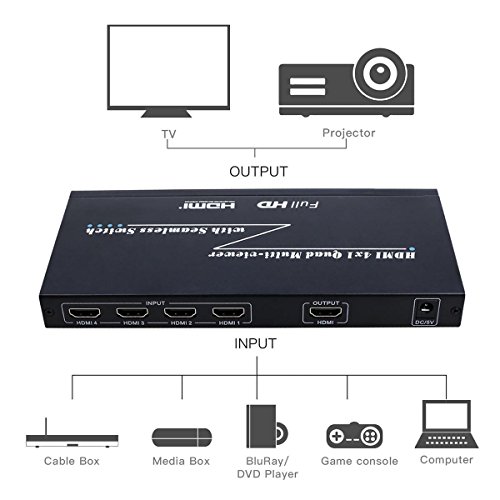

Compatible with HDMI display sources like laptops, Apple TV, or cable boxes, and HDMI display inputs on HDTVs, projectors, and computer monitors.

24-Month Warranty
IBIT products are with 24 months limited warranty and very friendly customer service.

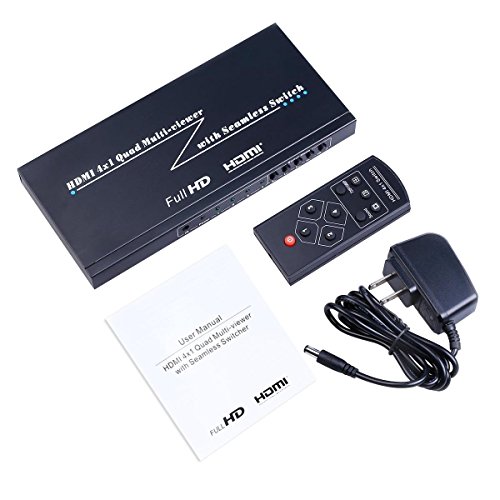

Package Contents
1x HDMI 4x1 Quad Multi-Viewer
1x IR Remote controller
1x User Manual
1x DC 5V Power Adapter
