Item Descriptions:

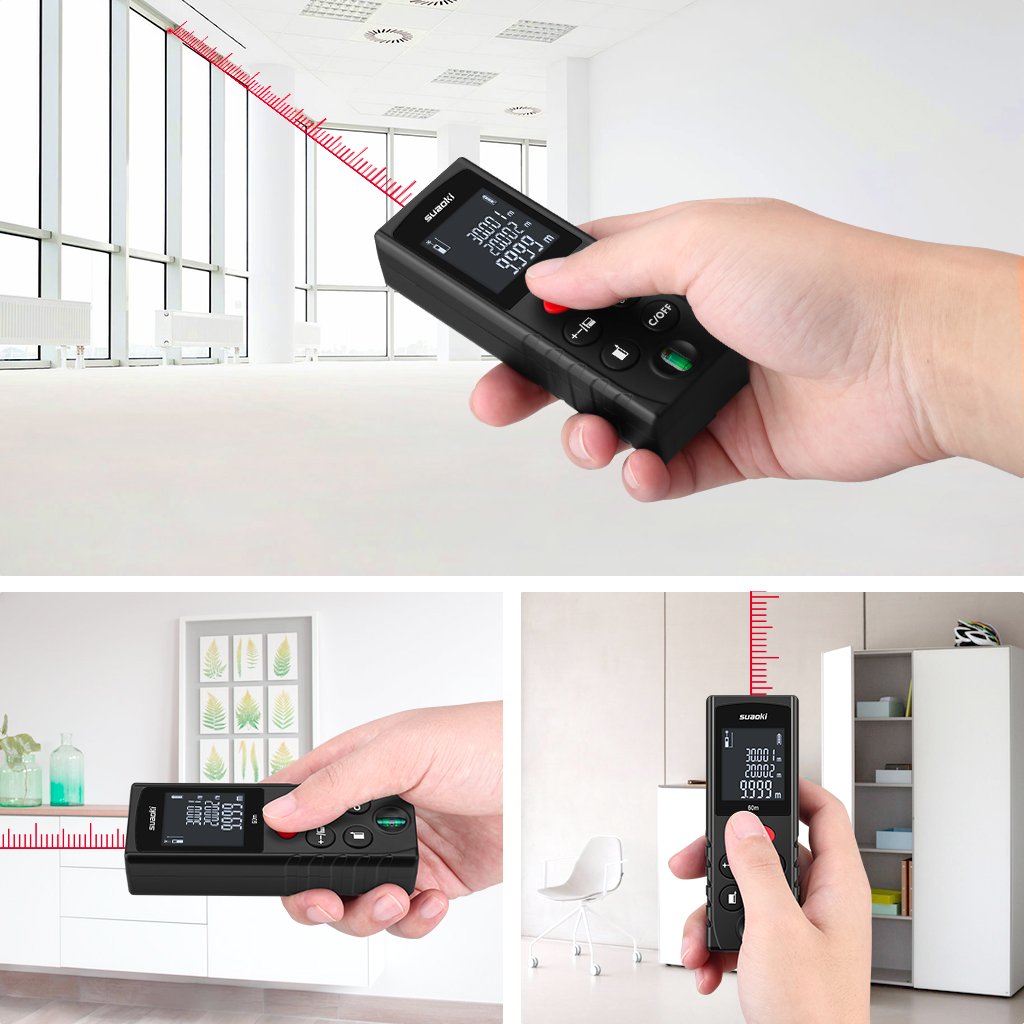

Instantaneous measurement with laser light

Just press the visible laser light on the object and press the button, the measured value is instantly displayed on the display.

Suaoki's fashionable, compact new professional laser rangefinder instantly measures distance, area, volume, etc.

Addition / subtraction of measured values ​​is also possible.

60 m measurement margin for daily use, error ± 2 mm.

We will do measurement work accurately and precisely even by one person.

Type of measurement mode

Single distance measurement:

Just by pressing the measurement button, the measured distance value is displayed on the LCD display.

Continuous measurement (maximum / minimum distance):

Continuous measurement starts when the measurement button is pressed for a long time.

The measured maximum distance is displayed on the first line, the minimum distance is displayed on the second line, and the last measured distance is displayed on the third line.

Area measurement:

Measurement button is pushed and the length and width are measured and it is displayed on the first and second lines of the LCD display.

In the third line, the automatically calculated area is displayed.

Volume measurement:

Measurement button is pushed and the length, width and height are measured and displayed on LCD display sequentially.

Finally, the automatically calculated volume is displayed.

Pythagoras

Edge measurement

Pressing the measurement button measures the two sides (a and b) of the right triangle and the remaining hypotenuse value (c) is automatically calculated.

Smart features installed

Addition / subtraction of measured values:

After measuring once, press the Add / Subtract button, the addition / subtraction mark will be displayed on the display.

Then press the measurement button and measure again.

The second measurement value is automatically added / subtracted based on the first measurement value.

Auto off:

If you do not operate for 30 seconds, the laser light turns off automatically.

If you do not operate for about 3 minutes, the main unit automatically turns off the power, you can prevent the forgetting of electric switching.

It saves energy and extends battery life.

Save history data:

The latest data of 20 are automatically stored.

There is nothing to say "I forgot to save!"

Two measurement reference points:

Optionally, you can select the measurement reference point (front end or rear end).

please note:

1, This product is a Class 2 laser product.

Please do not stare into the laser beam even if you wear a visual aid tool (glasses, telescope etc.).

2. If the diffuse reflection of sunlight condition and target is weak, please use reflector.

3, Because the laser light penetrates through the water, it can not measure the water surface.

4, This product is warranted for 1 year from the date of purchase, if initial malfunction or normal use breakdown, please contact directly our shop.

Product Specifications:

Measurable range: 0.05 to 60 m

Measurement accuracy: ± 2 mm

Auto power off: laser light: about 30 seconds Body: about 3 minutes

Laser type: 620 to 690 nm, <1 mW

Laser class: Class 2

Power supply: 2 AA alkaline batteries

Battery life: Approximately 5000 times (when using a new alkaline dry battery)

Operating temperature range: 0 to 40 ℃

Storage temperature range: -20 to 65 ° C

Weight: 157 g (including batteries)

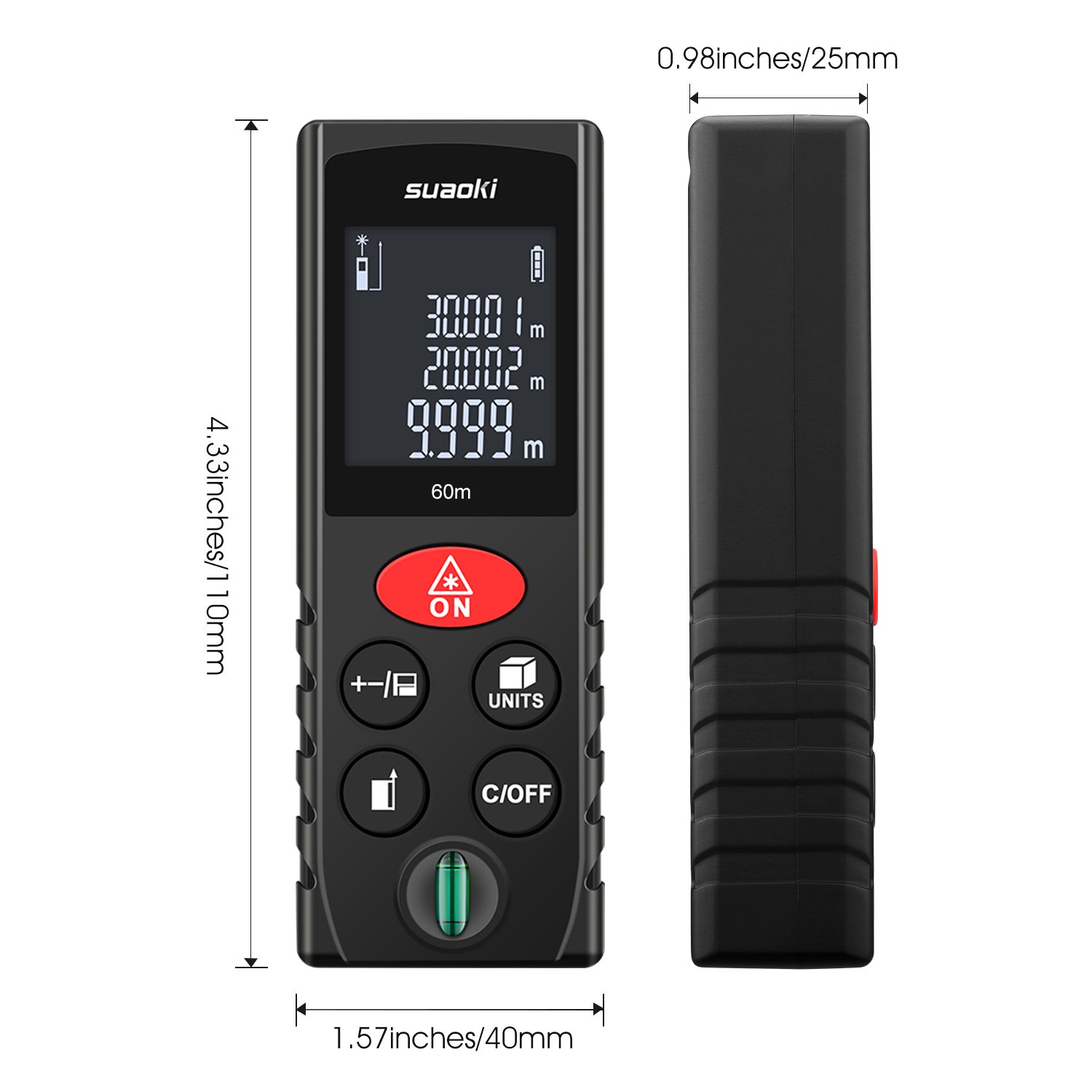

Size: 110 X 40 X 25 mm

Package contents:

1 x Suaoki D 60 laser range finder

2 x AAA alkaline battery

1 x Owner's Manual (for Japanese)

Features:

• Measurable range: 0.05 to 60 m Measurement accuracy: ± 2 mm Laser class: Class 2
• Measurement mode: Single distance measurement, continuous measurement (maximum / minimum distance), area · volume · Pythagorean (side measurement) measured.
• Addition / subtraction of measured values is also possible.
• Measurement reference point: front end of the main body, rear end
• History data storage (20), laser automatic OFF (after 30 seconds), power supply automatic OFF (after 3 minutes)
• Size: 110 X 40 X 25 mm Weight: 157 g Battery: 3 A alkaline dry battery x 2 Battery life: About 5000 times

Product information:

Shipping Weight: 167 g

Package Dimensions: 4.70 x 14.50 x 18.59 cm
