Product Description

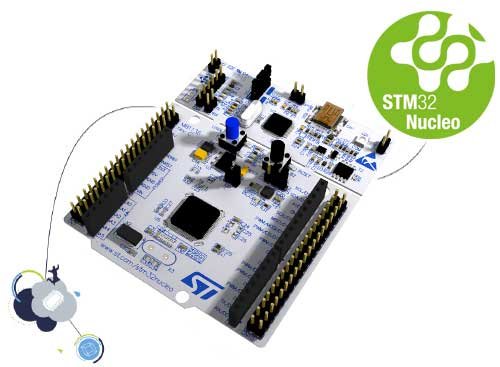

The STM32 Nucleo board provides an affordable and flexible way for users to try out new concepts and build prototypes with the STM32 microcontroller, choosing from the various combinations of performance, power consumption and features. The ArduinoTMUno V3 connectivity support and the ST morpho headers allow to expand easily the functionality of the STM32 Nucleo open development platform with a wide choice of specialized shields. The STM32 Nucleo board does not require any separate probe as it integrates the ST-LINK/V2-1 debugger and programmer. The STM32 Nucleo board comes with the STM32 comprehensive software HAL library together with various packaged software examples, as well as direct access to the ARM®mbedTMonline resources at http://mbed.org.

Key Features
STM32 microcontroller in QFP64 package
Two types of extension resources: ArduinoTM Uno V3 connectivity and ST morpho extension pin headers for full access to all STM32 I/Os
ARM® mbedTM (see http://mbed.org)
On-board ST-LINK/V2-1 debugger/programmer with SWD connector: Selection-mode switch to use the kit as a standalone ST-LINK/V2-1
Flexible board power supply: USB VBUS or external source(3.3V, 5V, 7 - 12V), Power management access point
Three LEDs: USB communication (LD1), user LED (LD2), power LED (LD3)
Two push-buttons: USER and RESET
USB re-enumeration capability. Three different interfaces supported on USB: Virtual COM port, Mass storage, Debug port
Support of wide choice of Integrated Development Environments (IDEs) including IARTM, ARM® Keil®, GCC-based IDEs

Feature

STM32L452RE MCU Ultra-low-power with FPU ARM Cortex-M4 MCU 80 MHz with 512 kbytes Flash, USB Device, DFSDM
On-board ST-LINK/V2-1 debugger/programmer with SWD connector
Can be powered from USB
Three LEDs, Two Push-buttons
Support of wide choice of Integrated Development Environments (IDEs) including IARTM, ARM® Keil®, GCC-based IDEs
Brand : STMicroelectronics
MPN(PartNumber) : NUCLEO-L452RE
EAN : 0717520032083
Product Dimensions(LxWxH) : 16x8x3cm ; 68 g
Package Dimensions(LxWxH) : 14x11x3cm ; 68 g
