Product Description

Description

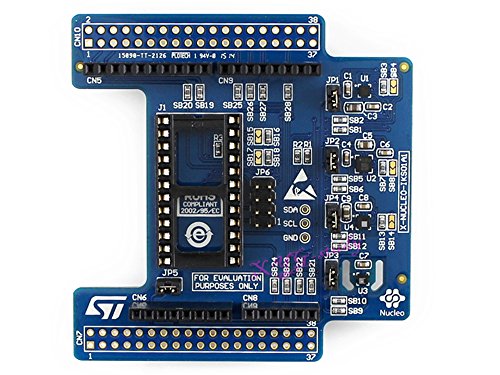

The X-NUCLEO-IKS01A1 is a motion MEMS and environmental sensor evaluation board system.

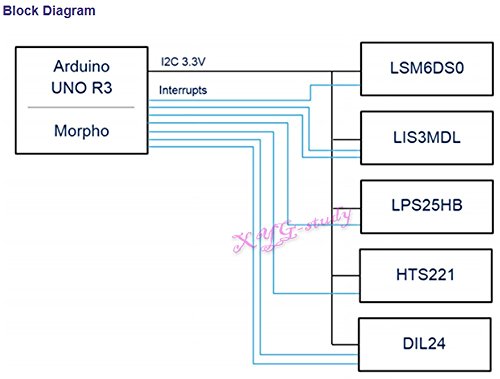

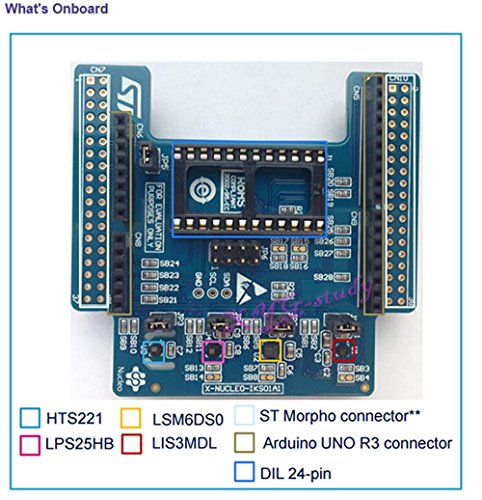

It is compatible with the Arduino UNO R3 connector layout, and is designed around STMicroelectronics' LSM6DS0 3-axis accelerometer + 3-axis gyroscope, the LIS3MDL 3-axis magnetometer, the HTS221 humidity and temperature sensor and the LPS25HB* pressure sensor.
The X-NUCLEO-IKS01A1 interfaces with the STM32 microcontroller via the I²C pin, and it is possible to change the default I²C port.

Key Features
LSM6DS0: MEMS 3D accelerometer (±2/±4/±8 g) + 3D gyroscope (±245/±500/±2000 dps)
LIS3MDL: MEMS 3D magnetometer (±4/ ±8/ ±12/ 16 gauss)
LPS25HB*: MEMS pressure sensor, 260-1260 hPa absolute digital output barometer
HTS221: capacitive digital relative humidity and temperature
DIL 24-pin socket available for additional MEMS adapters and other sensors (UV index)
Free comprehensive development firmware library and example for all sensors compatible with STM32Cube firmware
Compatible with STM32 Nucleo boards
Equipped with Arduino UNO R3 connector
RoHS compliant

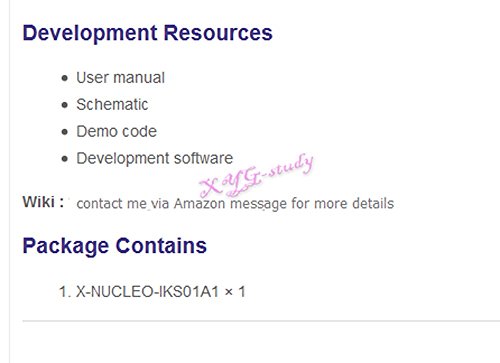

Package Contains

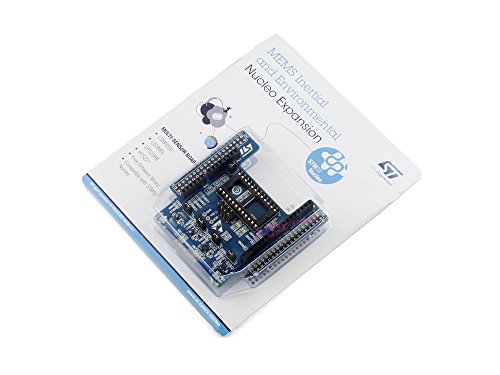

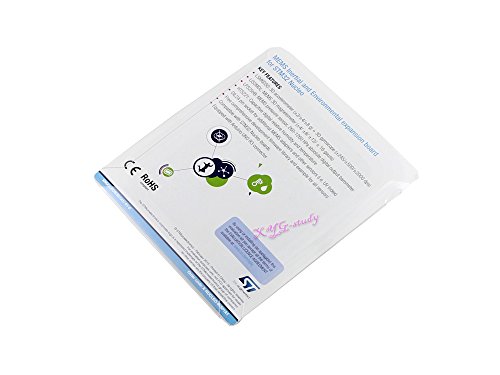

X-NUCLEO-IKS01A1 × 1

For more details you may need to know, pls firstly send me message via Amazon,
I will then send attached link including User Guide for you, thank you for patience.:)

Feature

X-NUCLEO-IKS01A1, Motion MEMS and environmental sensor expansion board for STM32 Nucleo
The X-NUCLEO-IKS01A1 is a motion MEMS and environmental sensor evaluation board system.
It is compatible with the Arduino UNO R3 connector layout, and is designed around STMicroelectronics' LSM6DS0 3-axis accelerometer + 3-axis gyroscope,
the LIS3MDL 3-axis magnetometer, the HTS221 humidity and temperature sensor and the LPS25HB* pressure sensor.
The X-NUCLEO-IKS01A1 interfaces with the STM32 microcontroller via the I²C pin, and it is possible to change the default I²C port.
Brand : XYG-ST
MPN(PartNumber) : LYSB014JEH8CA-CMPTRACCS
EAN : 0742920642990
Package Dimensions(LxWxH) : 13x13x2cm ; 0 g
