Item Type:Code Readers & Scan Tools
Language:English,Russian
Hardware Version:ELM327 Bluetooth V1.5 obd2
Software Update:No
Brand Name:ylsfc
Special Features:Bluetooth
Software Version:ELM327 Bluetooth V2.1 obdii
Name:ELM327 obd2 Bluetooth v1.5
software version:elm327 v2.1 Bluetooth obd2 scanner
Features:elm327 Bluetooth obd2 v1.5
Hardware version:elm 327 Bluetooth v 1.5
elm327 Bluetooth v1.5:obd2 ,obd 2,obdii
elm327 v1.5 obd2:car Diagnostic Tool
elm 327 Bluetooth obd2:obd2 scanner

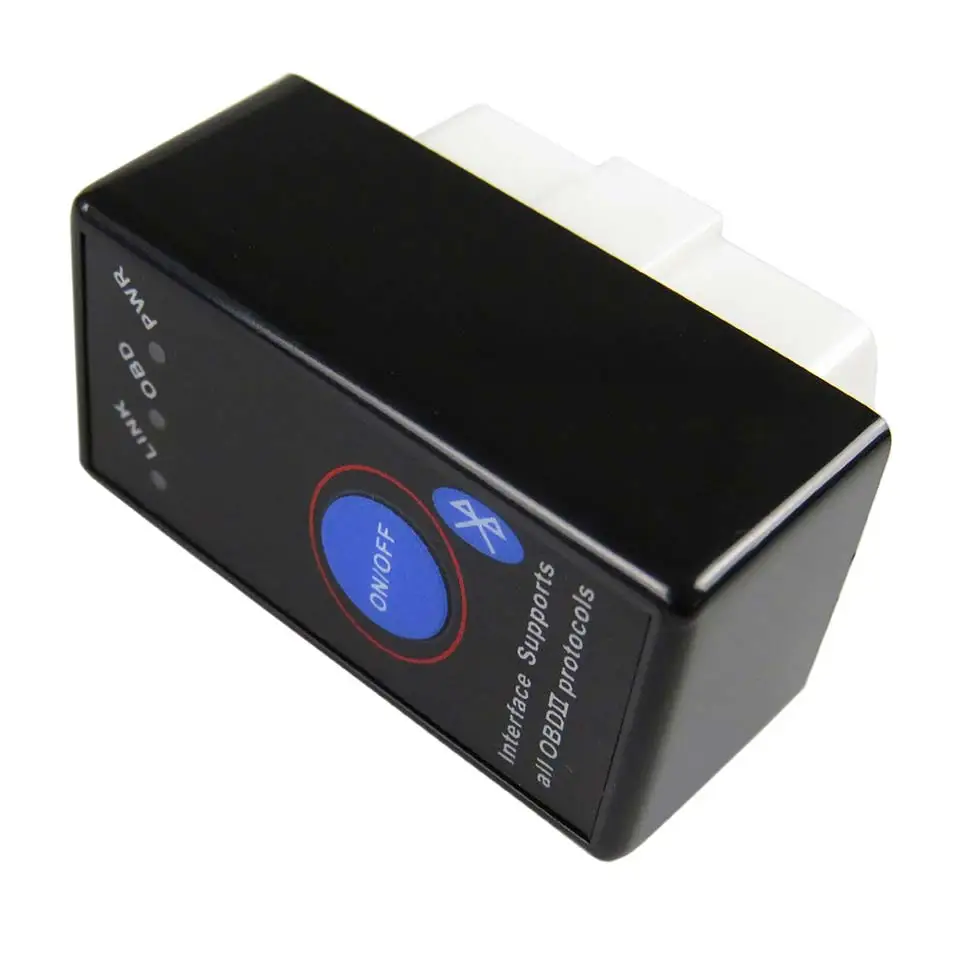

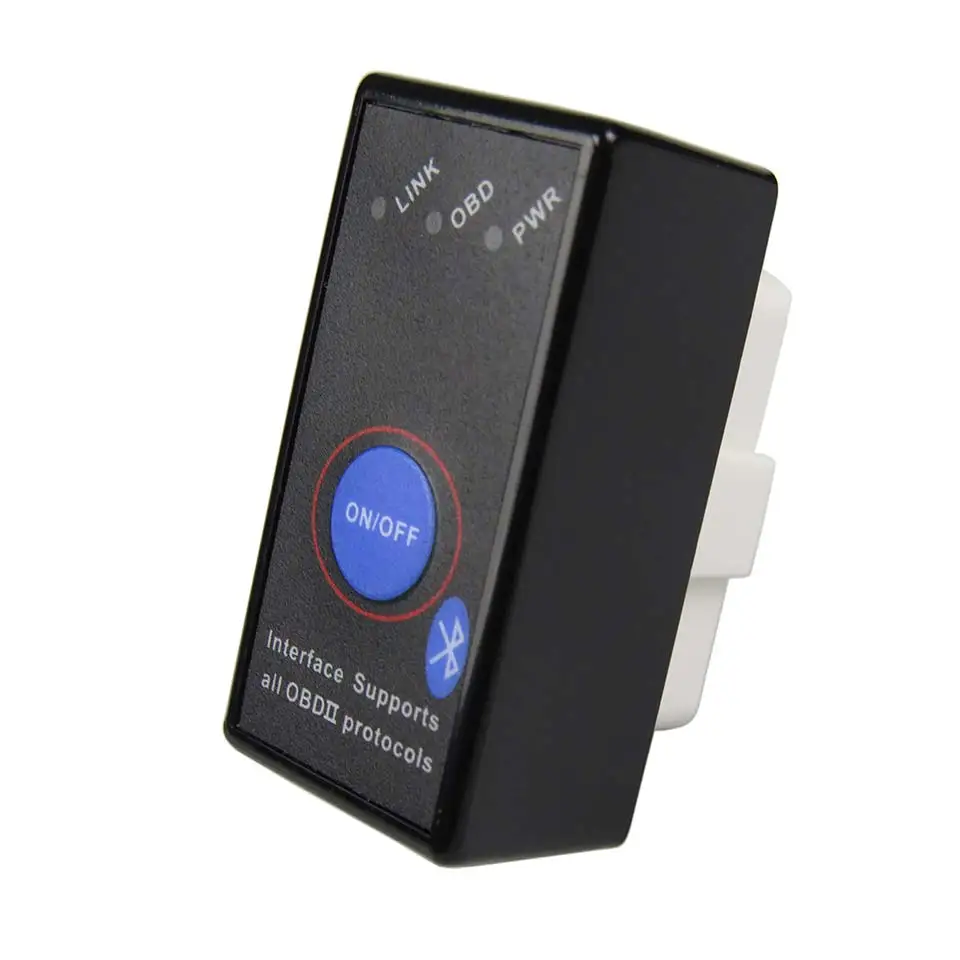

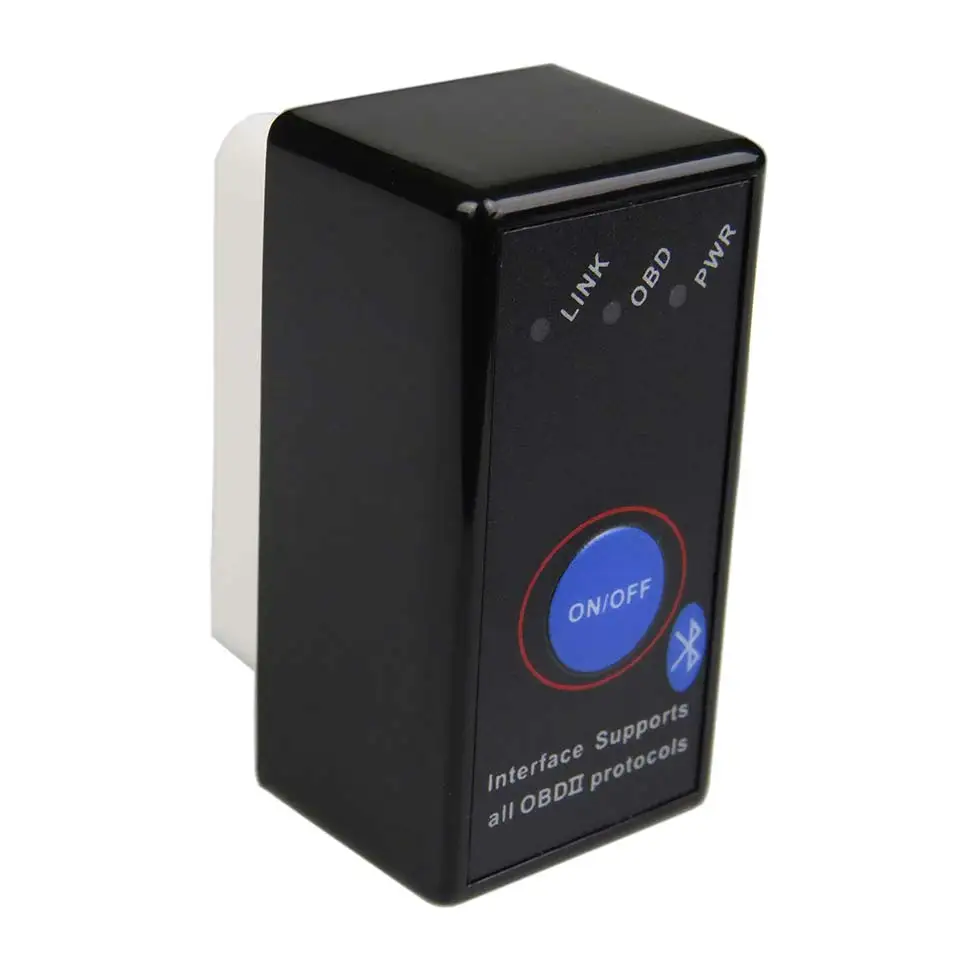

Mini Bluetooth ELM327:

1.Software Version:V2.1

2.Hardware version:V1.5

3.It supports all OBD-II protocols

4.Over 3000 generic code definitions in the database

MINI ELM327 Features:

OBD SCAN is the newly developed wireless scan tool

0.Automatic

1.SAE J1850 PWM(41.6Kbaud)

2.SAE J1850 VPW(10.4Kbaud)

3.ISO9141-2(5 baud init,10.4Kbaud)

4.ISO14230-4 KWP(5 baud init,10.4 Kbaud)

5.ISO14230-4 KWP(fast init,10.4 Kbaud)

6.ISO15765-4 CAN(11bit ID,500 Kbaud)

7.ISO15765-4 CAN(29bit ID,500 Kbaud)

8.ISO15765-4 CAN(11bit ID,250 Kbaud)

9.ISO15765-4 CAN(29bit ID,250 Kbaud)

A.SAE J1939 CAN(29bit ID,250*Kbaud)

B.USER1 CAN(11*bit ID,125*Kbaud)

C.USER2 CAN(11*bit ID,50*kbaud)

ELM 327 Default Settings (User Adjustable)

1.Works with all OBD-II compliant vehicles

2.Wireless (Bluetooth) 5~10 meter

3.Software included for Palm, PDA,Mobile

4.Software included for Windows PC

5.Software included for Windows Smartphone

ELM327 Functions:

1.Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning

2.Clear trouble codes and turn off the MIL ("Check Engine" light)

3.Display current sensor data, including:

4.Engine RPM

5.Calculated Load Value

6.Coolant Temperature

7.Fuel System Status

8.Vehicle Speed

9.Short Term Fuel Trim

10.Long Term Fuel Trim

11.Intake Manifold Pressure

12.Timing Advance

13.Intake Air Temperature

14.Air Flow Rate

15.Absolute Throttle Position

16.Oxygen sensor voltages/associated short term fuel trims

17.Fuel System status

18.Fuel Pressure

19.Many others...

ELM327 For Your Information:

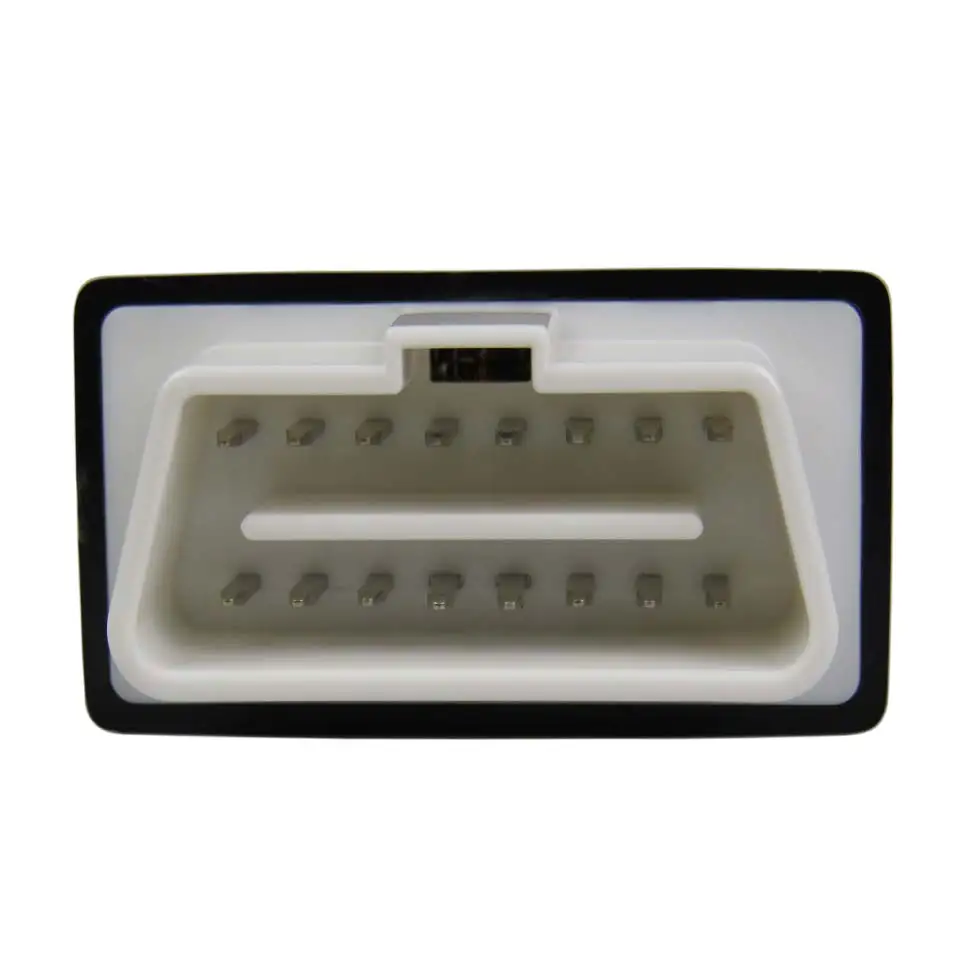

For your vehicle to be OBD II compliant it must have a 16-pin DLC (Data Link Connector) under the dash and the Vehicle Emission Control Information Label must state that the vehicle is OBD II compliant.

A-lfa Romeo/ A-udi/ B-entley/ B-MW/ C-adillac/ C-hevrolet/ C-hrysler/ C-itroen/ D-aewoo/ F-iat/ F-ord/ G-M/H-onda/ H-yundai/ I-suzu/ J-aguar/ J-eep/ K-ia/ L-and Rover/ L-exus/ M-azda/ M-ercury/ M-ini/ N-issan/ M-itsubishi/ O-pel/ P-eugeot/ P-orsche/ R-enault/ R-over/ S-aab/ S-eat/ S-koda/ T-oyota/ V-auxhall/ V-olvo/ V-W

ELM327 Software Included:

Scantool_net113win (Full Version)

EasyOBDII V2.2 (Full Version)

OBD2Spy (Demo Version)

ScanMaster-ELM (Demo Version)

wOBDCRAZY (Demo Version)

TORQUE (Android system cell phone)

OBDscope software (Symbian system cell phone)

This hardware can match many other software still! But most are not free

ELM327 Package List:

1pc x Advanced obd scan too linterface

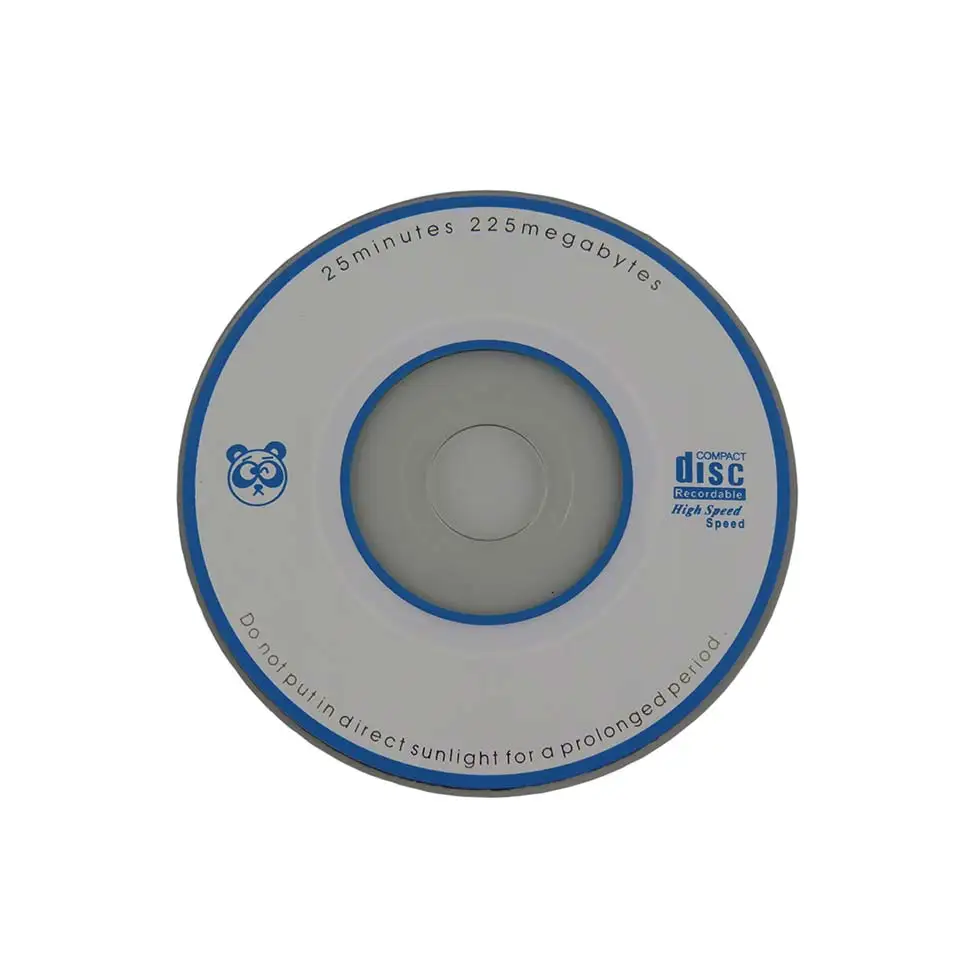

1pc x CD drive
