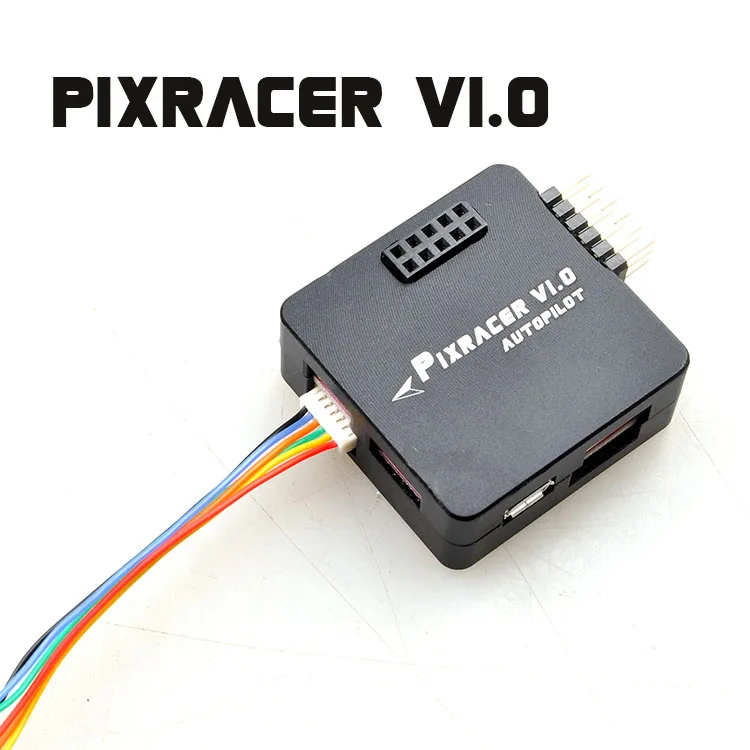

Mini Pixracer Autopilot Xracer FMU V4 V1.0 PX4 Flight Controller Board for DIY FPV Drone 250 RC Quadcopter Multicopter

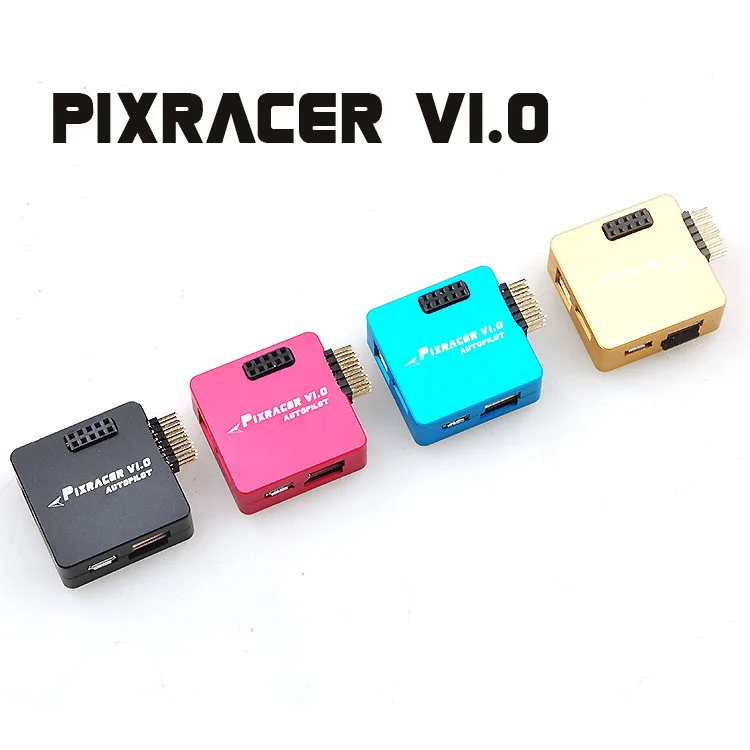

4 Colors optional Please choose the one you request.
Not suit for beginners and no technical support.
Please notice that if you use PWM receiver please also buy the PPM encoder search F19610 in my store. Any problem just contact me freely.

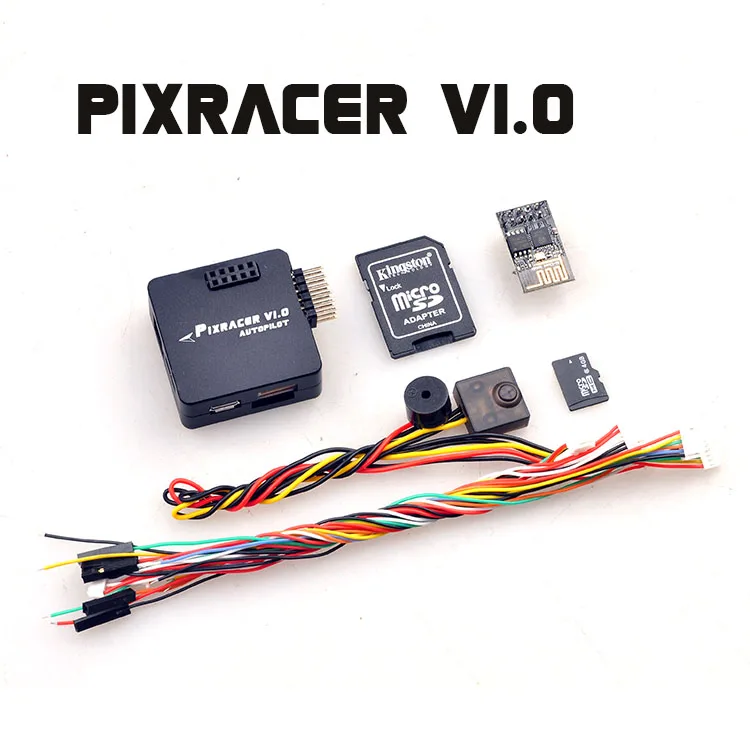

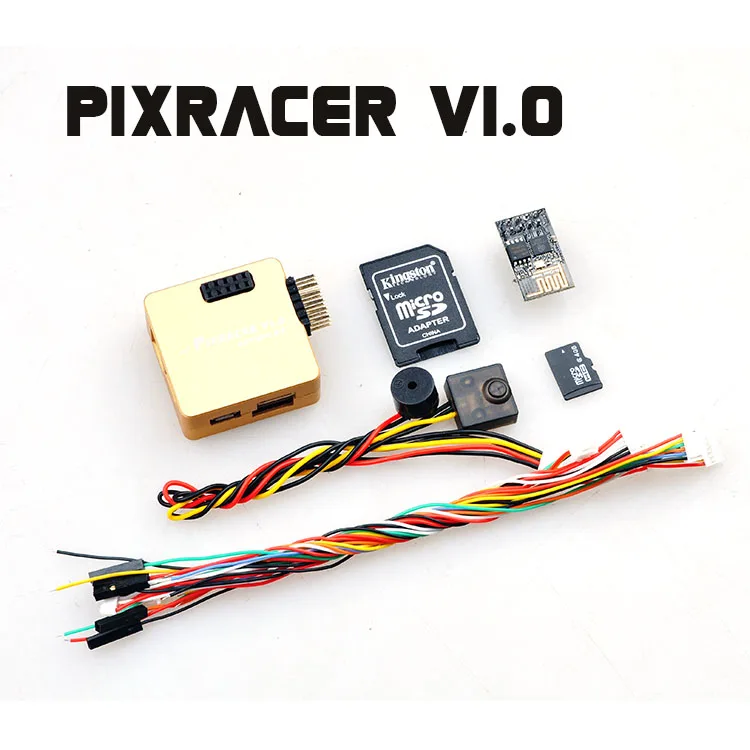

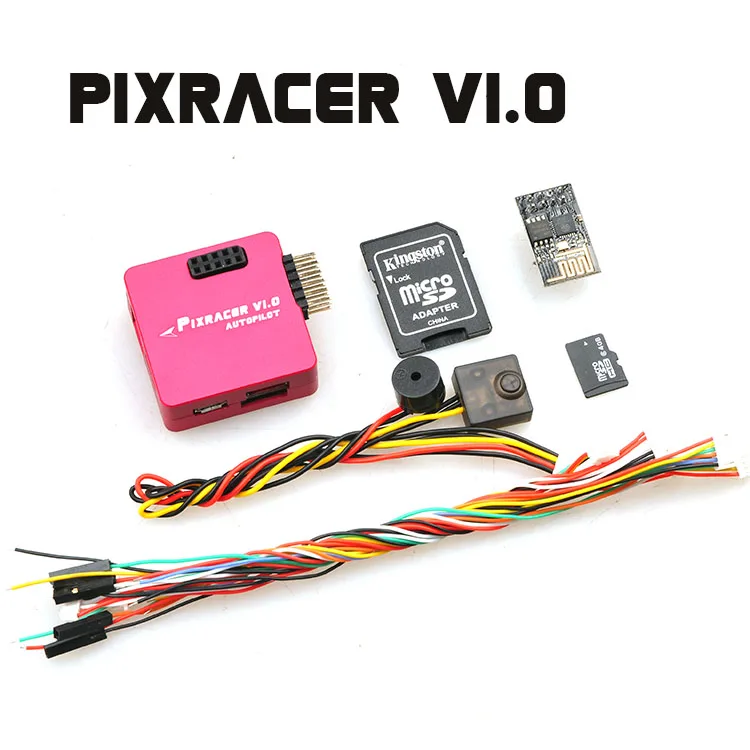

Package Includes:
1pc x Pixracer V1.0 Flight Controller
1pc x CNC Case (black golden red blue selectable)

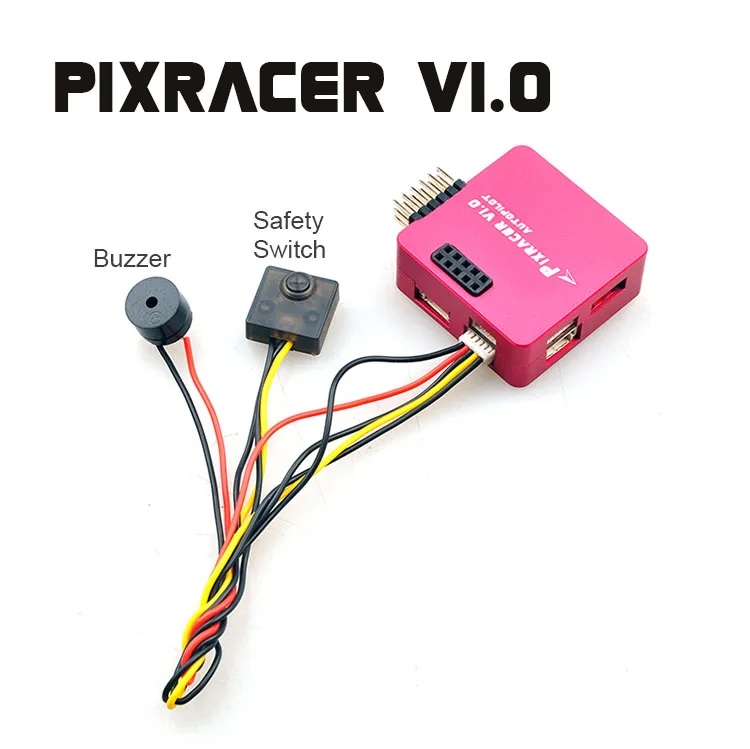

1pc x safety switch + buzzer

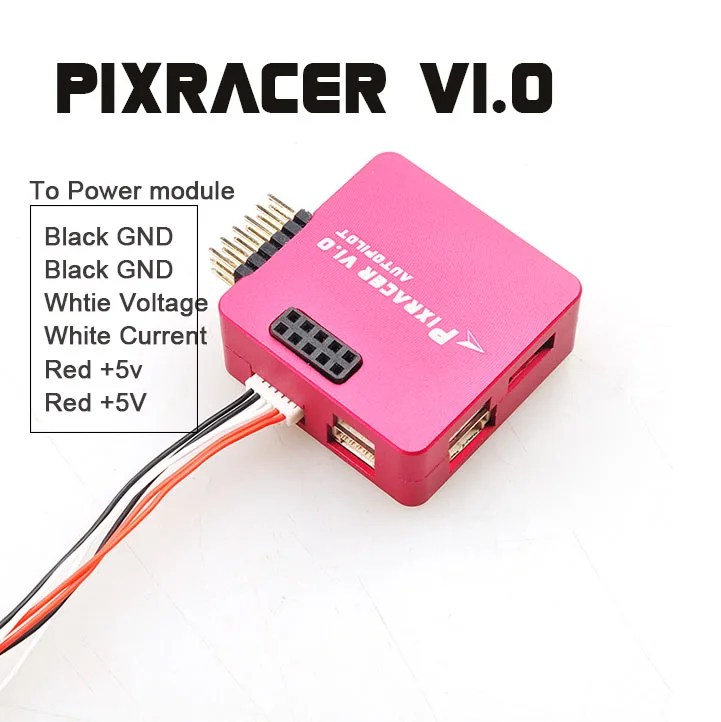

1pc x Power Module Cable
1pc x Serial Cable
1pc x I2C Cable

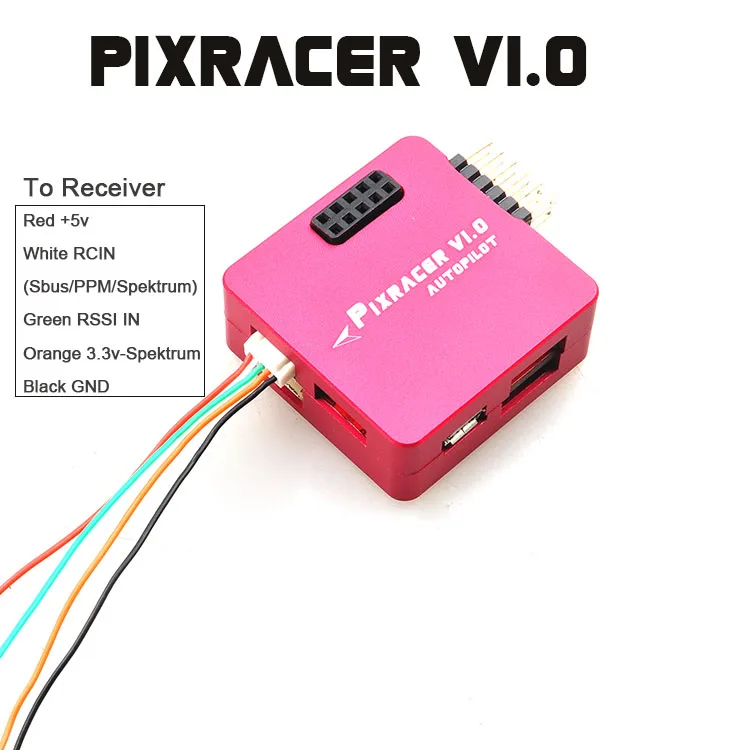

1pc x Receiver Cable
1pc x WiFi ESP8266 Module
1pc x Micro SD Card + Reader
More info please visit
Discussion:http://www.rcgroups.com/forums/showthread.php?t=2576614

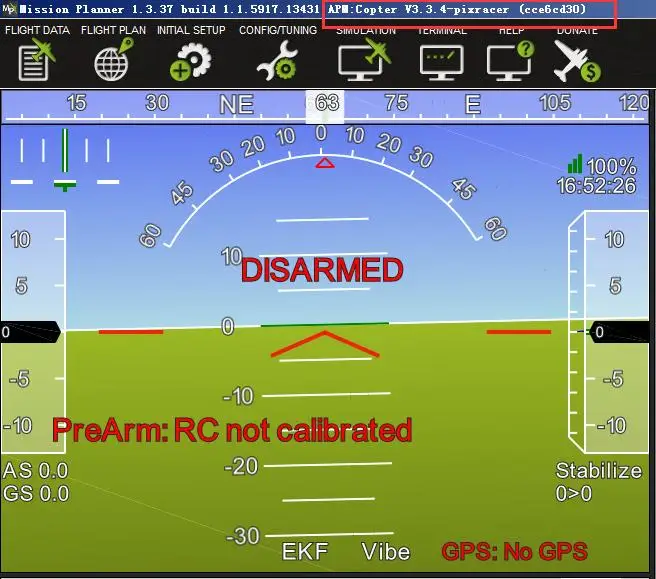

The new Pixracer (formerly called XRacer) is available now and its fully supported by the Arducopter and PX4 community. Its a genuine open source project already running with PX 4 stack software / QGroundControl (QGC) as well with Arducopter / Mission Planner (MP).
This is not just another small Pixhawk knock off or derivate the Pixracer is the first autopilot of the new FMUv4 Pixhawk generation. Its coming with an upgraded Invensense Sensor generation (bye bye tricky LSM 303) a plug in Wifi board and last not least with a 2MB Flash : A real upgrade compared to former versions.
Pixracer specs :
MCU - STM32F427VIT6 rev.3
PCB dimension 36mm*36mm
FRAM - FM25V02-G
LDO Ultra low noise LDOs for sensors and FMU
MPU9250 ICM20608 baro MS5611 mag HMC5983

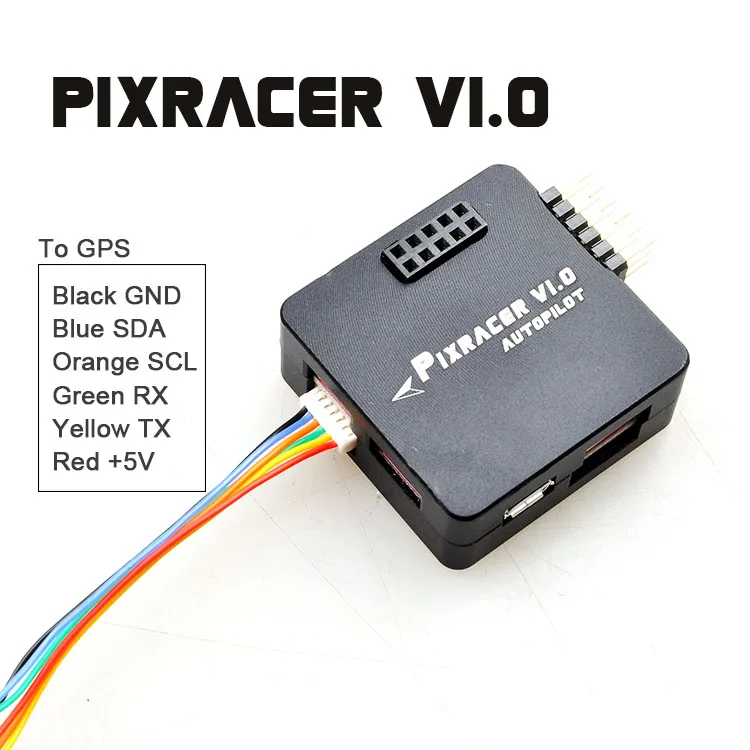

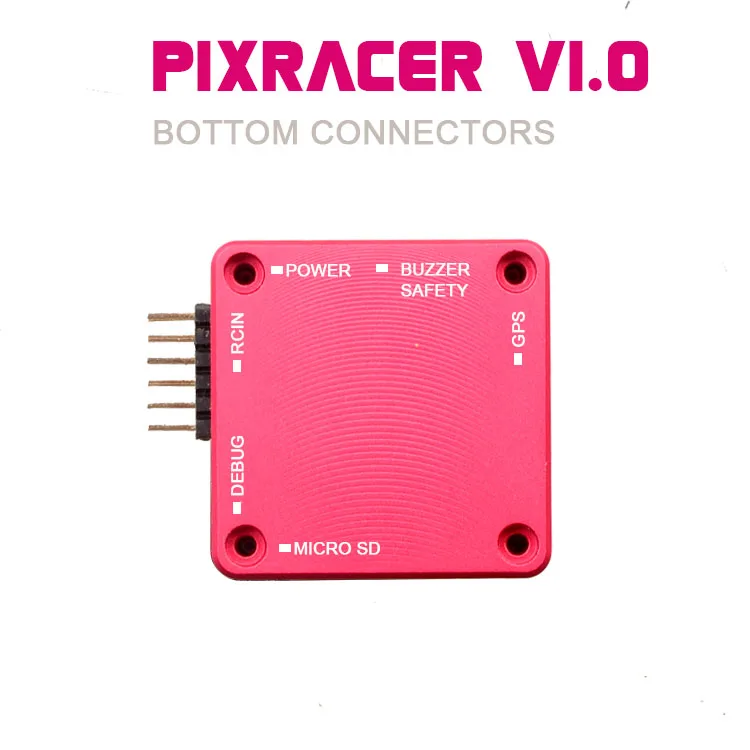

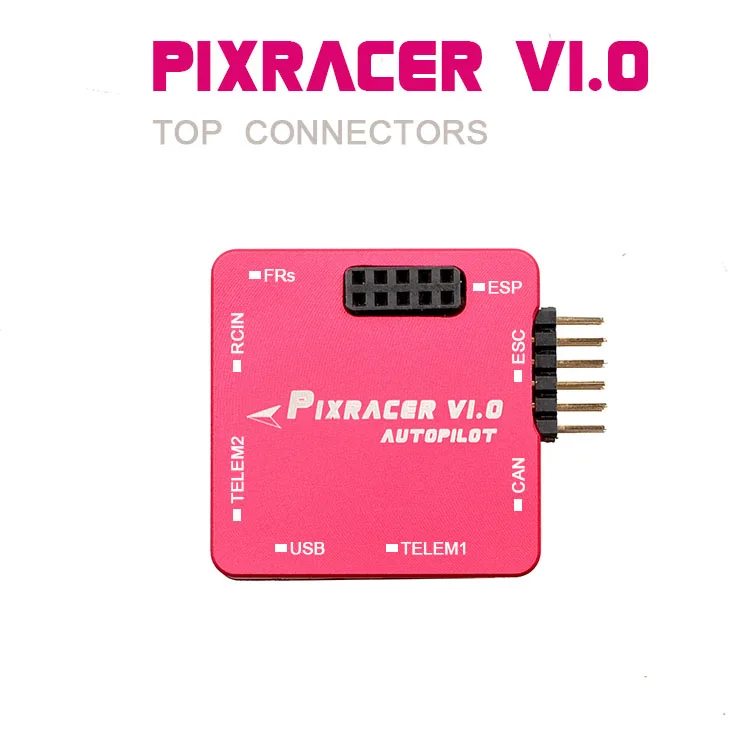

Connectors - GPS+I2C RC-IN PPM-IN RSSI SBus-IN Spektrum-IN USART3 ( TxD RxD CTS RTS ) USART2 ( TxD RxD CTS RTS ) FRSky-IN FRSky-OUT CAN USART8 ( TxD RxD ) ESP8266 ( full set ) SERVO1-SERVO6 USART7 ( TxD RxD ) JTAG ( SWDIO SWCLK ) POWER-BRICK ( VDD Voltage Current GND ) BUZZER-LED_BUTTON
MicroSD card reader
RGB LED
Micro USB
WiFi ESP8266 802.11bgn ( Included !)
This popular add on is a very versatile solution you might want to check its wiki as well: http://www.esp8266.com/wiki/doku.php...th-the-esp8266 But don´t be scared the included WiFi Module is coming ready to go !
JST GH series connectors for easy and robust peripheral connections DF13 haters will love those !
Dimensions - 36 x 36mm with 30.5 x 30.5mm hole grid with 3.2mm holes
Weight Pixracer - ( include SD and CNC protective case ) 26g

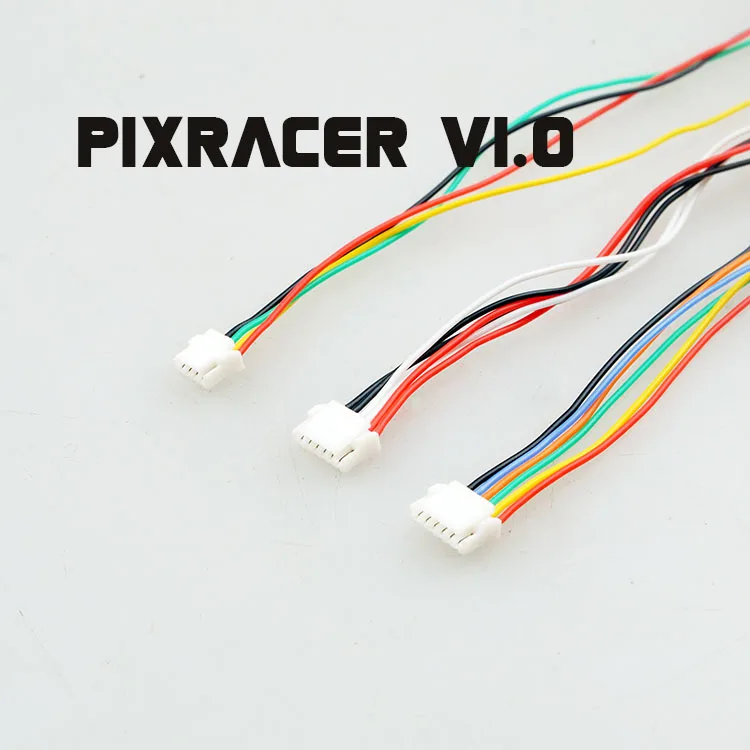

5 kinds of professional flexible silicone cables for almost any peripheral module included.
Power supply - 5-5.5VDC from USB or Power Brick connector.
NOTE! The Power must be between5.0VDC to 5.5VDC!
The VDD_SERVO rail is NOT connected to thePixracer power!
VERY IMPORTANT NOTE!
THE MAX ALLOWABLE TOTAL CURRENT CONSUMPTION FOR ALL PERIPHERALS IS 1A! Don't connect the VCC of servos or HighPower Telemetry/OSD modules.
