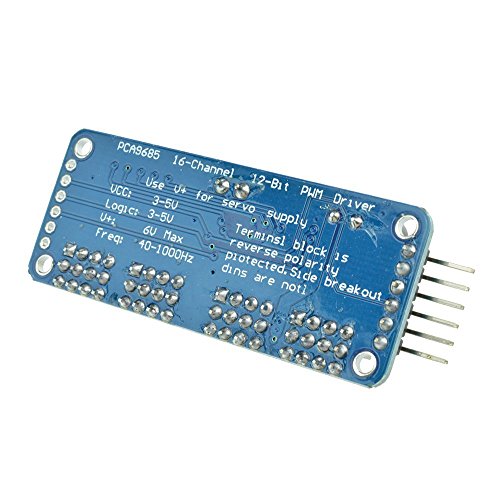

Product Description

An I2C-controlled PWM driver with a built in clock. That means that, unlike the TLC5940 family, you do not need to continuously send it signal tying up your microcontroller, its completely free running!
1.Output enable pin to quickly disable all the outputs
2. Terminal block for power input (or you can use the 0.1" breakouts on the side)
3. Reverse polarity protection on the terminal block input
4. Green power-good LED
5. 3 pin connectors in groups of 4 so you can plug in 16 servos at once (Servo plugs are slightly wider than 0.1" so you can only stack 4 next to each other on 0.1" header
6. "Chain-able" design
7. A spot to place a big capacitor on the V+ line
8. 330 ohm series resistors on all the output lines to protect them, and to make driving LEDs trivial
9. Solder jumpers for the 6 address select pins

Feature

It is 5V compliant, which means you can control it from a 3.3V microcontroller and still safely drive up to 6V outputs (this is good for when you want to control white or blue LEDs with 3.4+ forward voltages)
6 address select pins so you can wire up to 62 of these on a single i2c bus, a total of 992 outputs
Adjustable frequency PWM up to about 1.6 KHz;Configurable push-pull or open-drain outputManufacturer
12-bit resolution for each output - for servos, that means about 4us resolution at 60Hz update rate
We are the owner of Brand"FICBOX",Warranty is Valid for Purchasing from "FicBoxDirect" ONLY
Brand : FICBOX
MPN(PartNumber) : PCA9685
EAN : 6912504807723
Package Dimensions(LxWxH) : 8x4x3cm ; 18 g
