Product Description

This is the ultimate version of NS-LED-02 (ASIN: B00OLRBUG6) with logic level shifter.

Demo clips:
https://www.youtube.com/watch?v=96-y19RIc5U
https://www.youtube.com/watch?v=qMI50lqgp_0
https://www.youtube.com/watch?v=Rf7J5tjl71Y

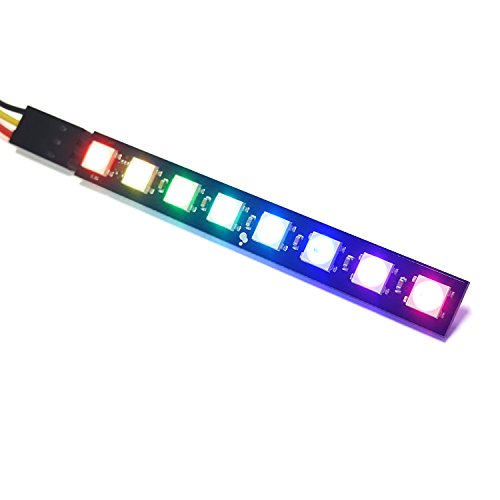

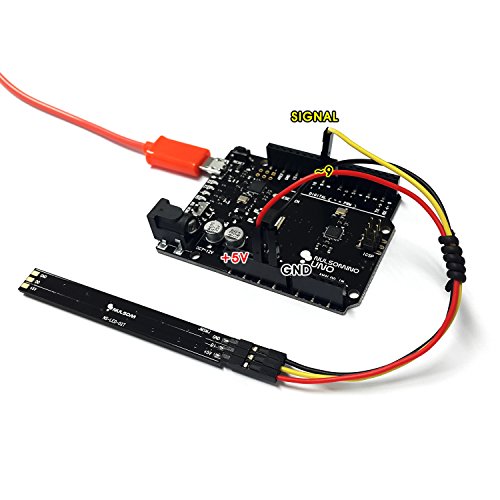

This is the easiest way possible to add small and ultra bright RGB LEDs to your project (drone, quadcopter, mobile, arduino, etc).
Each pixel of the three primary color can archive 256 brightness display, completed 16,777,216 color display.
Power the whole thing with 5VDC ( 3.5V ~ 5.5V works)
The sticks are chainable - so you only need 1 pin/wire to control as many LEDs.
These pixels have full 24-bit color ability by the built-in controller chip. Since the LED is so bright and compact, you need less current/power/space to get the effects you want.

Libraries:
for Arduino - http://nulsom.com/source/NS_Rainbow.zip
for ATmega328 - http://www.nulsom.com/source/NS_Rainbow_for_ATmega328P.zip
for ATmega128 - http://www.nulsom.com/source/NS_Rainbow_for_ATmega128.zip
for ATmega8 - http://www.nulsom.com/source/NS_Rainbow_for_ATmega8A.zip

Feature

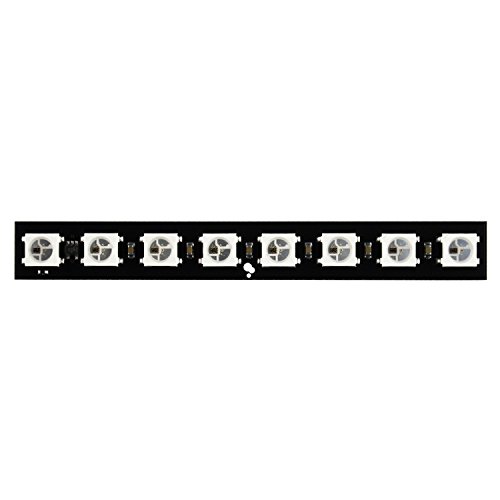

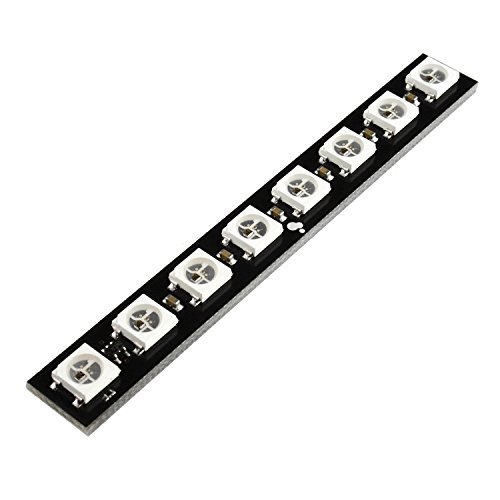

Ultimate version [with logic level shifter] of NS-LED-02, 1x8 ultra bright and colorful WS2812B RGB LED's
3.5V ~ 5.5V works, Ok when a signal level is 3.3V from Naze32/Teensy (ARM Cortex MCUs)
Easy and fun Drone/Quadcopter/RC Car/Arduino project (Not include Arduino)
256 brightness display and full 24-bit (16,777,216) color display

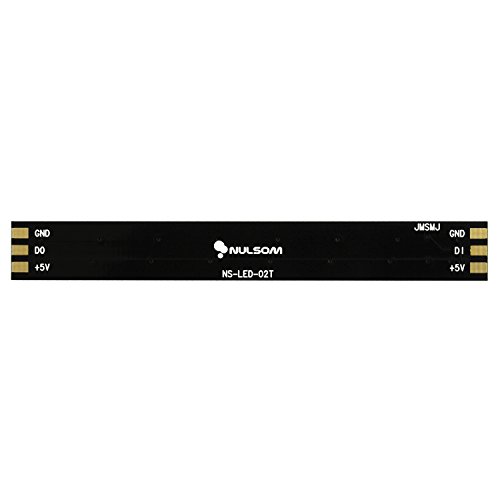

Sticks are chainable (DI: Data In, DO: Data Out), Compatible with the Neopixel Arduino library
Brand : NulSom Inc.
Item model num : NS-LED-02T
MPN(PartNumber) : NS-LED-02T
EAN : 0888429010806
