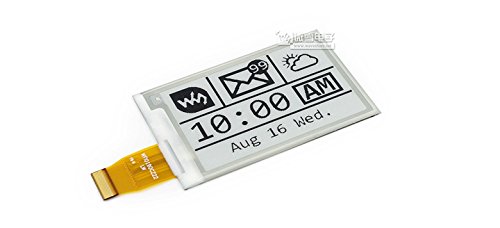

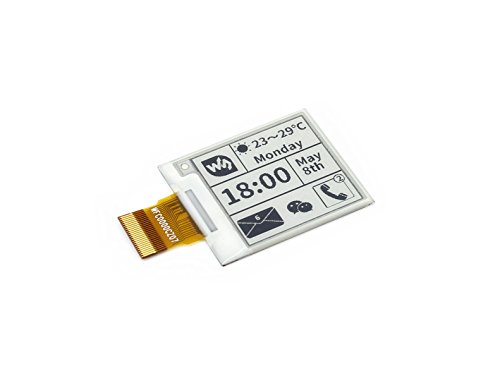

1.54inch e-Paper

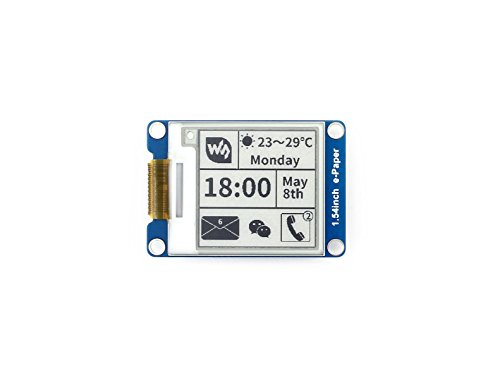

1.54inch e-Paper Module

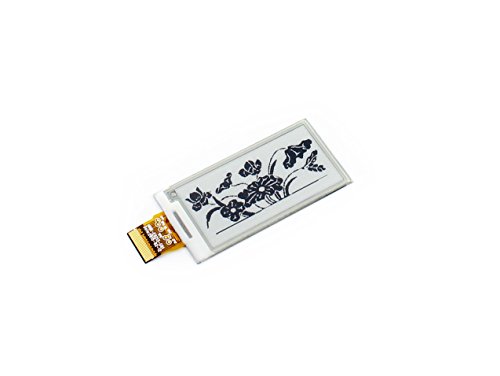

2.13inch e-Paper


2.7inch e-Paper

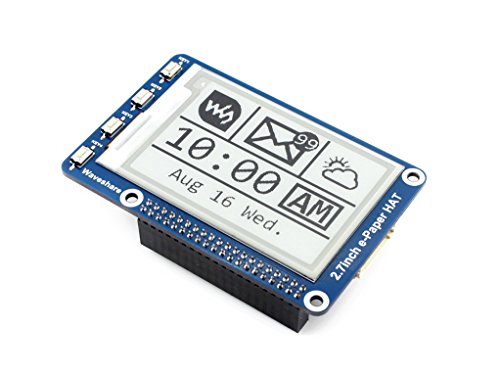

2.7inch e-Paper HAT

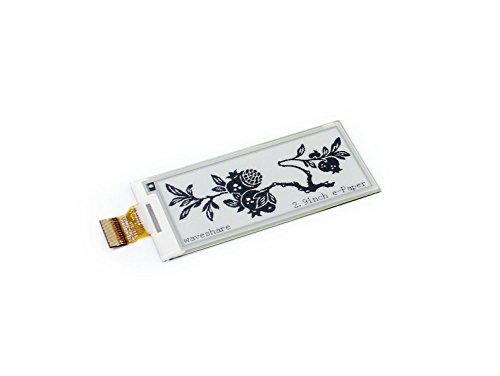

2.9inch e-Paper


2.9inch e-Paper Module

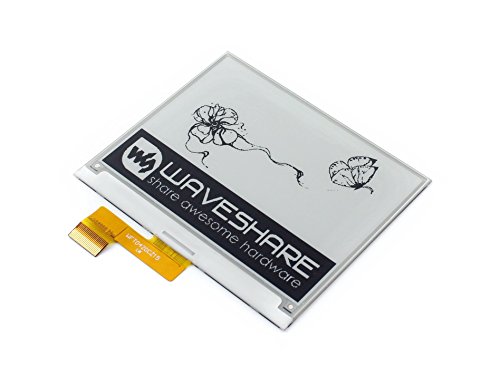

4.2inch e-Paper

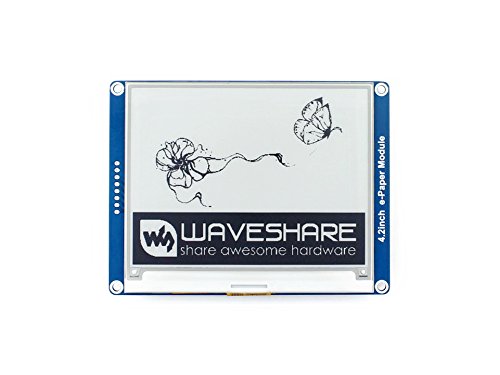

4.2inch e-Paper Module


7.5inch e-Paper


7.5inch e-Paper HAT

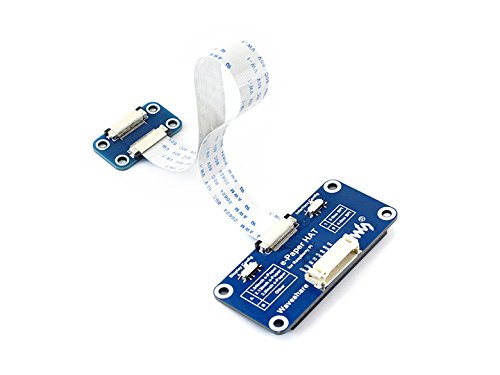

e-Paper Driver HAT

Product Description

Overview

This is an E-Ink display HAT for Raspberry Pi, 2.13inch, 250x122 resolution, with embedded
controller, communicating via SPI interface, supports partial refresh.

Due to the advantages like ultra low power consumption, wide viewing angle, great effect under
sunlight, it is an ideal choice for applications such as shelf label, industrial instrument, and so on.

Features

• No backlight, keeps displaying last content for a long time even when power down
• Ultra low power consumption, basically power is only required for refreshing
• Compatible with Raspberry Pi 2B/3B/Zero/Zero W
• Preserved solder pads for SPI interface, for connecting with other controller boards like
Arduino/Nucleo, etc.
•Comes with development resources and manual examples for Raspberry/Arduino/STM32)

Specifications

• Operating voltage: 3.3V
• Interface: SPI
• Outline dimension: 65mm × 30.2mm
• Display size: 23.71mm × 48.55mm
• Dot pitch: 0.194 × 0.194
• Resolution: 250 × 122
• Display color: black, white
• Grey level: 2
• Refresh power: 26.5mV(typ.)
• Standby power: <0.1mV
• Viewing angle: >170°

Package Content

1. 2.13inch e-Paper HAT x1
2. RPi screws pack (2pcs) x1
3. 9-pin 2.54 pitch SMD pinheader x1

Development Resources

Wiki : www.waveshare.com/wiki/2.13inch_e-Paper_HAT?amazon

Feature

No backlight, keeps displaying last content for a long time even when power down
Ultra low power consumption, basically power is only required for refreshing
Compatible with Raspberry Pi 2B/3B/Zero/Zero W
Preserved solder pads for SPI interface, for connecting with other controller boards like Arduino/Nucleo, etc.
Comes with development resources and manual (examples for Raspberry/Arduino/STM32)
Brand : waveshare
MPN(PartNumber) : 2.13inch e-Paper HAT-3
EAN : 0614961950627
Package Dimensions(LxWxH) : 11x8x3cm ; 18 g
