NOTICE: If you choose China post air mail free shipping and the order less than $30 ， for the low profit ，the packages all will send by hongkong post without tracking number ，hope you can understand .normally deliver time about 15-30days (brazil need about 30-60days).sometimes need a little long by accident .Please be patience and don\'t worry .If the order less than $30 and you need send with tracking number .please choose hongkong post need $2.11 for the tracking number .Thank you !!!



Description:

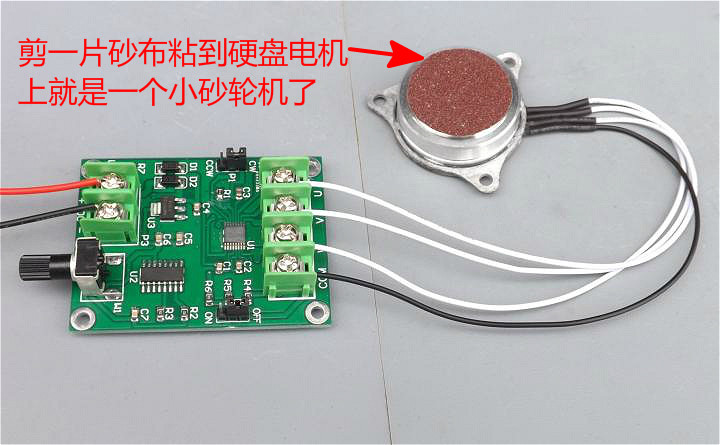

Micro brushless DC motor driver board

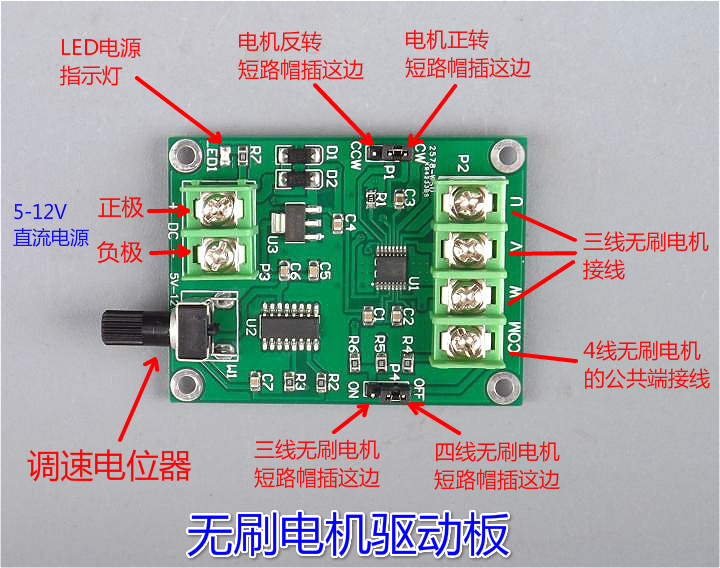

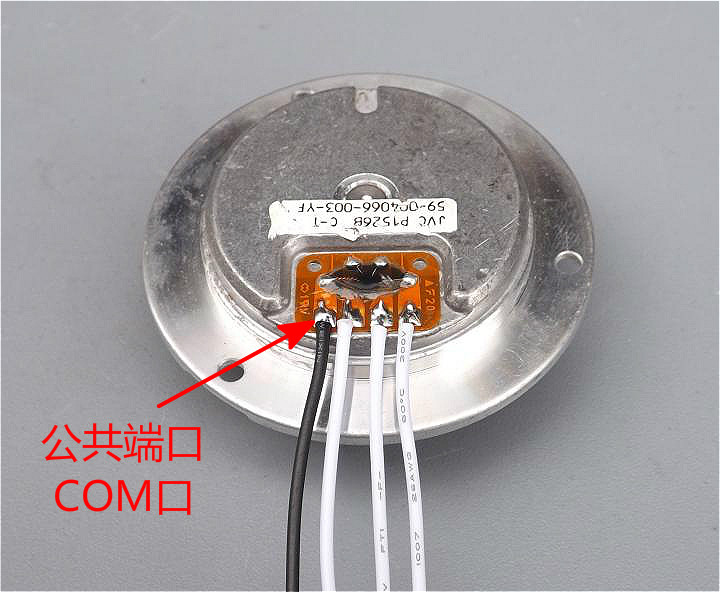

The driver board can drive hard brushless motor， brushless motor drive and other miniature 3-wire or 4-wire brushless motors without Hall

Driver board reverse voltage protection， over current protection， simple wiring， use a very hassle free.

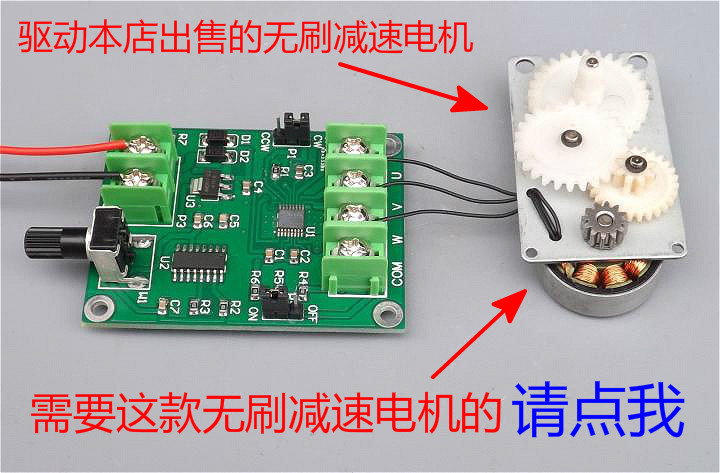

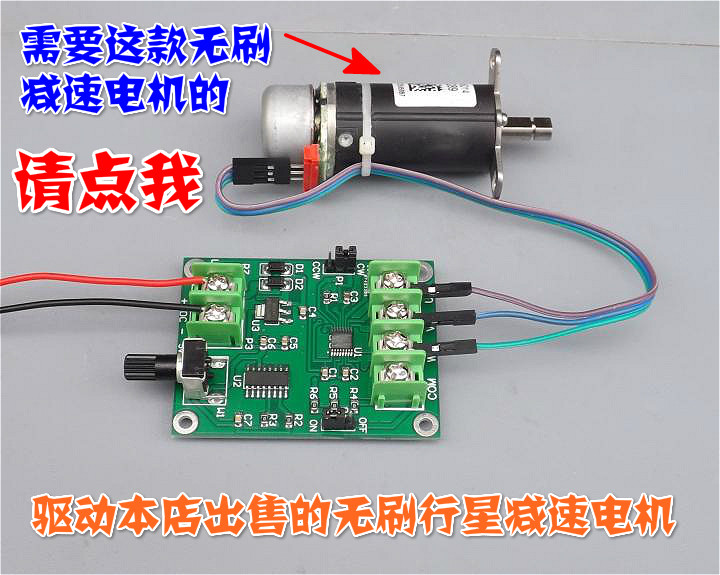

This board is mainly brushless motor with our store sell， so ultra-low prices， high cost Oh!

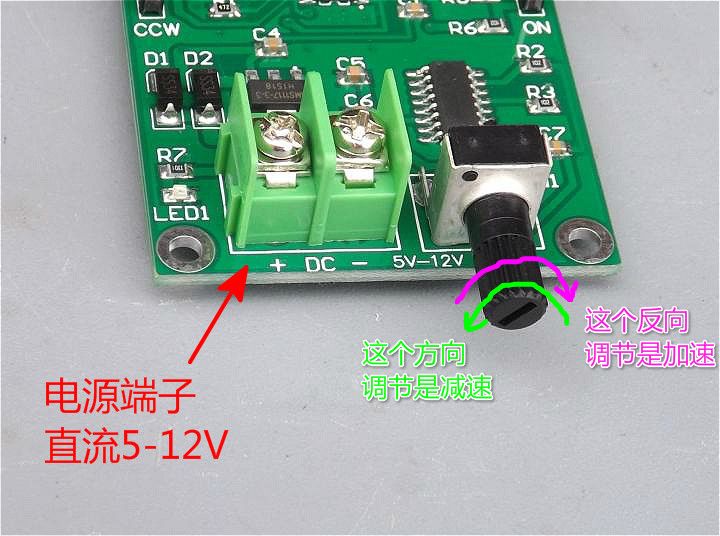

[Drive] DC 5-12V voltage

[Work current] ≤1.2A

[Speed range from 0% to 100%]

[Control] have phase inversion

[Voltage polarity protection] have

[] There are over-current protection

Note: brushless motor wire to the terminal when the drive plate must be pressed firmly on solid， poor contact will be missing running and burn chips. Terminal board fixing screw clearance， please use thick cable to the board.

ler

';
Unit Type:
piece
Package Weight:
0.100kg (0.22lb.)
Package Size:
10cm x 10cm x 10cm (3.94in x 3.94in x 3.94in)
