Product Description

Functions and features

1. This product is a PIR sensor switch, it¡s usually installed in the public place or the corridor of house, in the conditional weak light, when people arrive, and it turns on. When people leave, it turns off with delay.
2. When the light is bright enough, it will not turns on, it is energy saving.
3. It can be used in alarm system, if we install it in the forbidden area, the alarming dell will ring when someone invades into the area.
4. It also can be used in corridor, stair hall, balcony, washroom, garage, etc.

Specifications:

1. Operating power supply: 110VAC
2. capabitity of load:max 200w
3. Environment temperature: -10 degree ~40 degree .
4. Delay time: 30~300secs (adjustable)
5. Detecting distance :< =10 m, 6. Detecting angle: 180
7. Lighting detecting range:10ux~200lux(adjustable)
8. Height of installation: 1.4-1.6m

9. Dimension: 88 *36 mm Attentions:

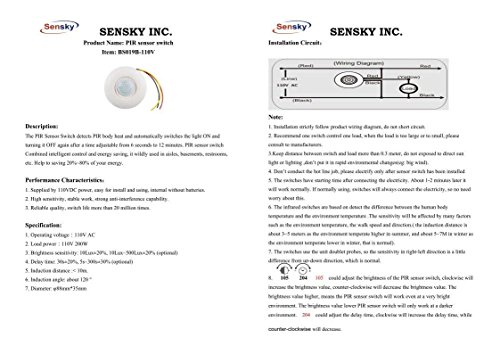

1.Install following the wiring diagram, after the careful check, connect the power supply.40 ~80seconds is needed for preheat.
2.If you need it to induce in daylight, you need to adjust it to daylight induction mode.
3.Detecting will be affected by the environment and other factors , such as, temperature , walking speed, cloth, etc.
4.in order to keep the high sensitivity, please do not install the product in strong light environment and where there is strong cold or heat airflow.
5.This device have the function of repeat triggering, when people in the detecting area, triggering the switch, the device will restart the delay time, so the delay time should be calculated on the last triggering.

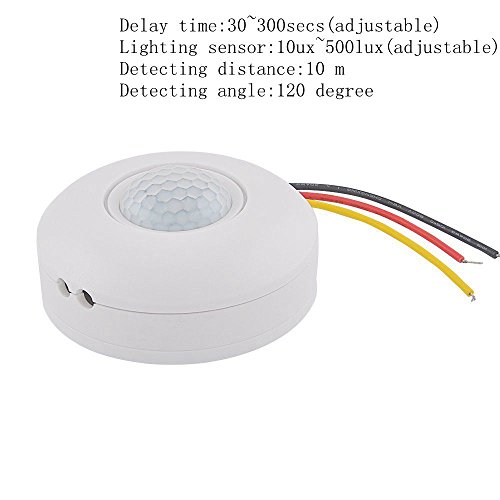

Feature

Operating voltage:AC 110V
capability of load:max200w
Delay time:30~300secs(adjustable)
lighting detecting range:10ux~500lux(adjustable)
detecting distance:< 10 m, detecting angle:120¡ã
Brand : Sensky
MPN(PartNumber) : GKG0191W0B110-AFN
EAN : 0700646316175
