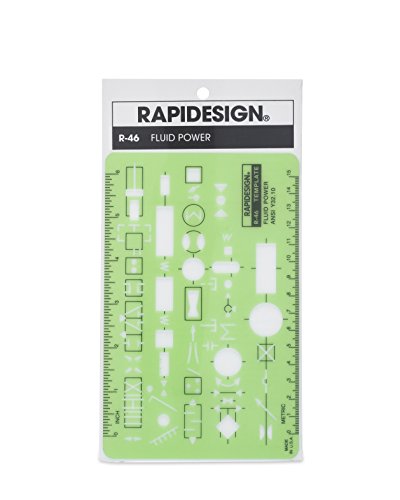

Rapidesign Fluid Power Template, 1 Each (R46)

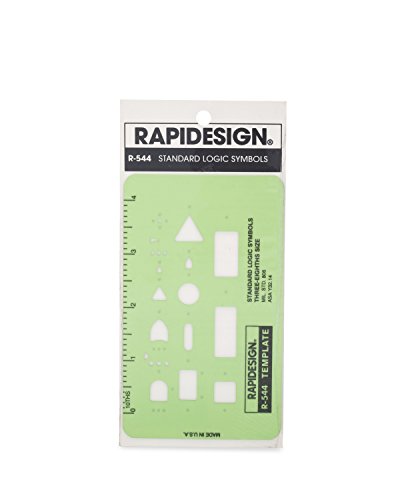

Standard Logic Symbol - 3/8 Inch Size


ADPS Flowchart


Fluid Power

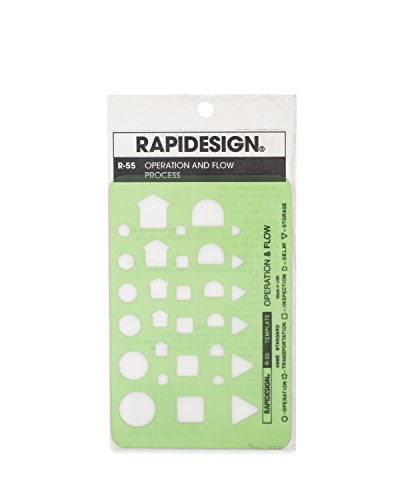

Operation and Flow Process

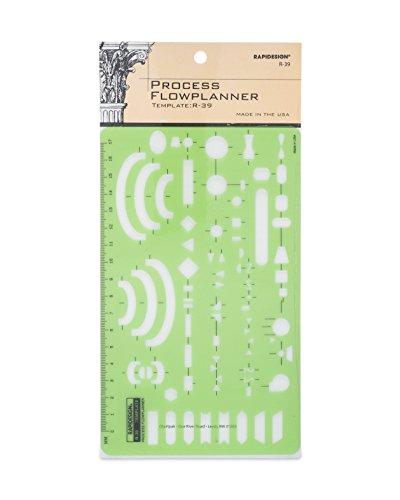

Plumbing Process Flowplanner


Process

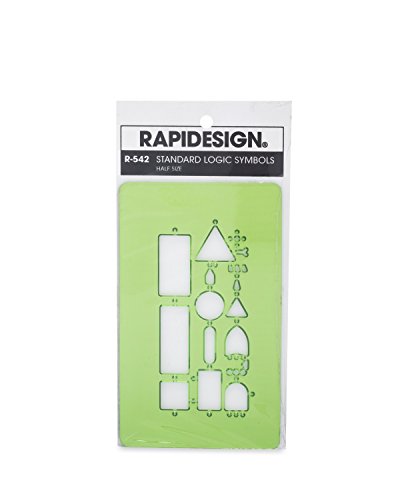

Standard Logic Symbol - 1/2 Inch Size

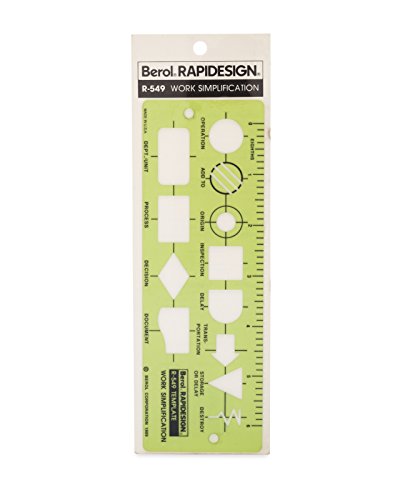

Work Simplification


Flowchart

Product Description

Rapidesign Fluid Power Template conforms to ANSI Y32.10. Most commonly-used graphic symbols for fluid power diagramming. Inch and metric scales included. Made in USA. Rapidesign has the world's largest selection of drafting templates for architects, builders, engineers and graphic designers.

Feature

Conforms to ANSI Y32.10
Most commonly-used graphic symbols for fluid power diagramming
Inch and metric scales included
Translucent green template
Made in USA
Brand : RAPIDESIGN
Item model num : R46
MPN(PartNumber) : R46
EAN : 0014173253620
Product Dimensions(LxWxH) : 18x12x1cm ; 68 g
Package Dimensions(LxWxH) : 18x13x2cm ; 68 g
