Product Description

Product Description :

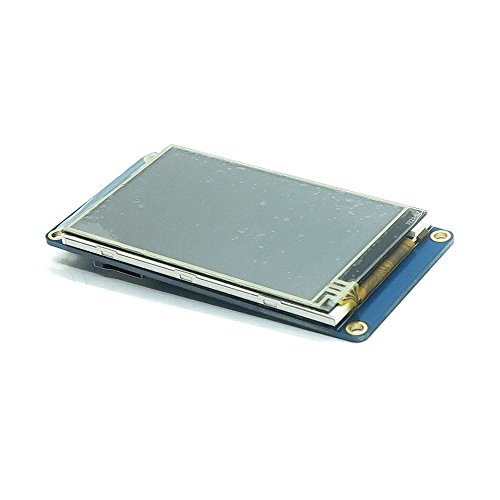

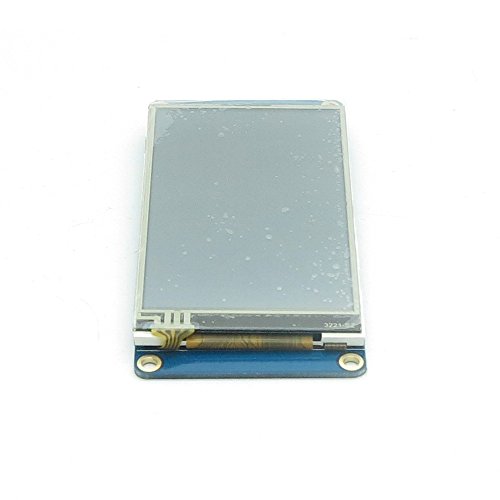

This is a powerful 3.5'' HMI, which is member of Nextion family. Features include: a 2.4" TFT 320 x 240 resistive touch screen display, 4M Flash, 2KByte RAM, 65k colors.

Features:
480 x 320 Resolution
RGB 65K true to life colors
TFT Screen with integrated 4-wire Resistive Touch Panel
Easy 4 pin interface to any TTL Serial Host
16M Flash memory for User Application Code and Data
On board micro-SD card for firmware upgrade
Visual Area:73.44mm(L)×48.96mm(W)
Adjustable Brightness:0~180 nit, the interval of adjustment is 1%

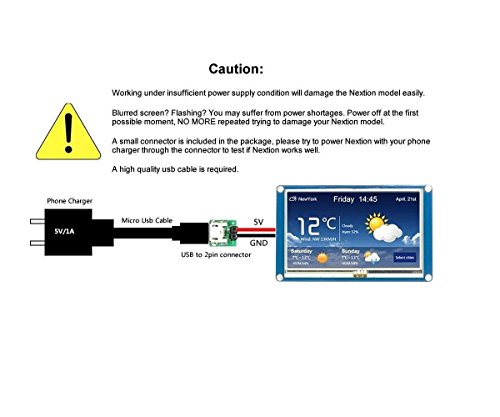

recommended power supply 5V500mA DC
Document link: https://www.youtube.com/results?search_query=Nextion+HMI

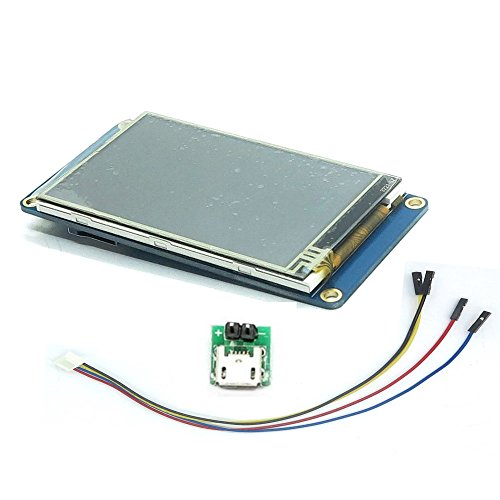

Package Included:
1 X 3.5'' UART HMI LCD Module
1 X 4P Cable
1 X UB to 2pin connector

Feature

Nextion is a Seamless Human Machine Interface (HMI) solution that provides a control and visualisation interface between a human and a process, machine, application or appliance
Nextion is mainly applied to IoT or consumer electronics field. It is the best solution to replace the traditional LCD and LED Nixie tube.

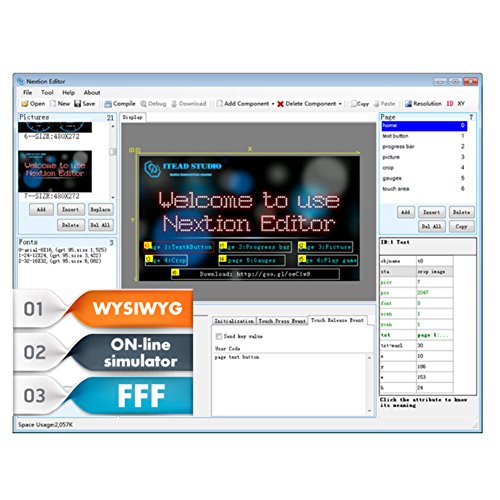

This solution includes hardware part - a series of TFT boards and software part - Nextion editor
Nextion TFT board uses only one serial port to do communicating. Let you get rid of the wiring trouble
It's easy to adapt Nextion family HMI to existing projects, you just need to provide it a UART
Brand : WIshioT
MPN(PartNumber) : FZ1753
EAN : 0702795764241
Product Dimensions(LxWxH) : 10x8x5cm ; 82 g
Package Dimensions(LxWxH) : 10x8x5cm ; 82 g
