Product Description

The WH1436 temperature controller can turn on/off an electric appliances at desired temperature.
For example, you can use the controller to turn on a heater at 99.9 F and turn it off at 100 F. Or turn on a freeze at 52 F and turn it off at 45.3 F.
(Please be noted that the controller itself doesn't change temp. You need to use heater or refrigeration equipment with it.)

Main features:
1-YEAR WARRANTY: From the date of purchase.
Plug and play. No worry about wiring.
Maximum load: 880W @110V or 1960W @240V.
Heating OR refrigeration working mode.

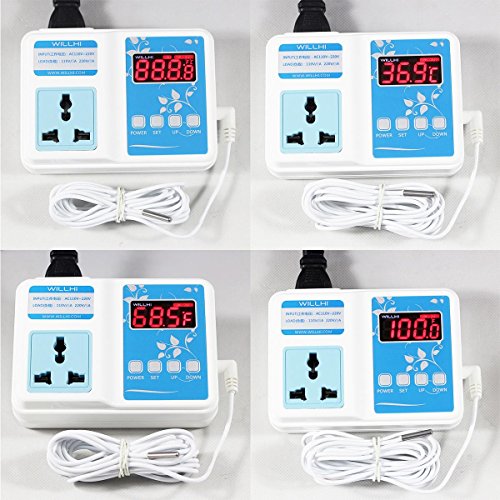

Celsius or fahrenheit read-out.
Temperature calibration.
Compressor delay protection time setting.
High and low temperature alarms are available(This is a useful function. You can use this feature to alarm you when the temperature overshoots your desired temperature)
Auto shut off timer(It doesn't turn off the controller itself. The timer just turns off the load when specified minutes counts down to 0.)

Specification:
1.Power supply: AC 110V ~ 240V, 50/60Hz
2.Measure range: -4 ~ 220 F(-20 ~ 105 C)
3.Temperature resolution: 0.1
4.Accuracy: ±0.5
5.Working mode: Heating OR Cooling mode
6.Slew range of temp controlling: 0.1 - 25(difference between turn-on degree and turn-off degree)
7.Control resolution: 0.1
8.Power consumption: less than 3W
9.Relay contact capacity: 8A
10.Store setting after power off: YES
11.Compressor delay protection: YES
12.High and Low Temperature alarm: Yes

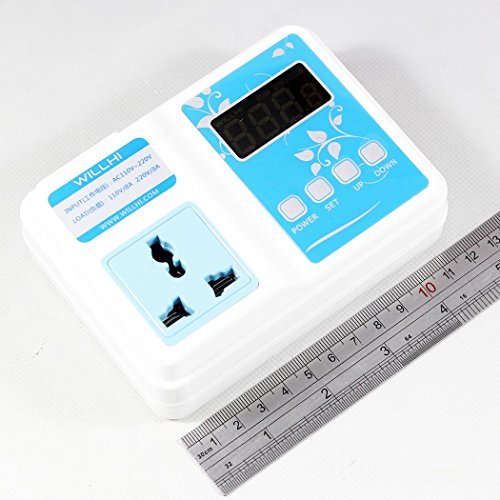

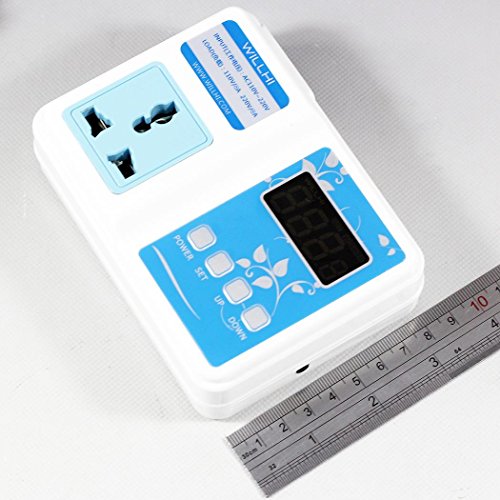

13.Product size: 4.9x3.6x1.8 inch (12.5x9.1x4.5 cm)
14.Sensor Cable length: 3m(9.8ft)
Advanced function:
1.Switch temperature unit(Default: F): F or C
2.Switch resolution(Default:0.1): 0.1 or 1
3.Auto shut off timer(Default:OFF)

Package Content:

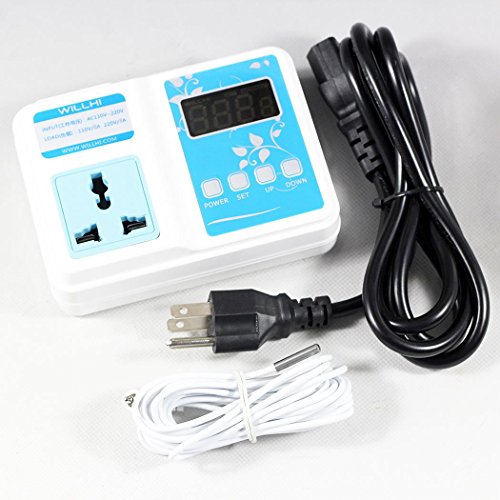

1x WH1436 Temperature controller
1x sensor cable
1x power cord

Feature

KEEP TEMPERATURE IN DESIRED RANGE: It's on/off control mode. Turn on your device at a degree and turn it off at another degree. The difference of the 2 degrees can be minimum 0.1 and maximum 25.
HEATING OR REFRIGERATION WORKING MODE: Switch between heating mode and refrigeration mode according to the device you plug into the controller.
WIDE RANGE OF USES: seedling heat mat, home brewing, aquarium, pet breeding, incubation, BBQ, fermentation, accelerating germination, electric radiator, electric oven, etc.
MAXIMUM LOAD: 880W at 110V or 1960W at 240V. Overloading is not allowed.
WIDE MEASURE AND CONTROL RANGE (Celsius or fahrenheit read-out)
Brand : WILLHI
Item model num : WH1436-110/240v
MPN(PartNumber) : WH1436
EAN : 0711463669641
