Item Descriptions:

Product function

Movie shooting / Repeat recording function / Automatic surveillance system / External power supply function / Charger function / Recording lamp off Model / High sound quality microphone / Date setting function / File high speed transmission Konamaku's long seller!

● Movie size realizes high-quality recording of full Hi-Vision 1080P!

Easy and easy to use even for people who are not good at operating the machine, series easy shooting!

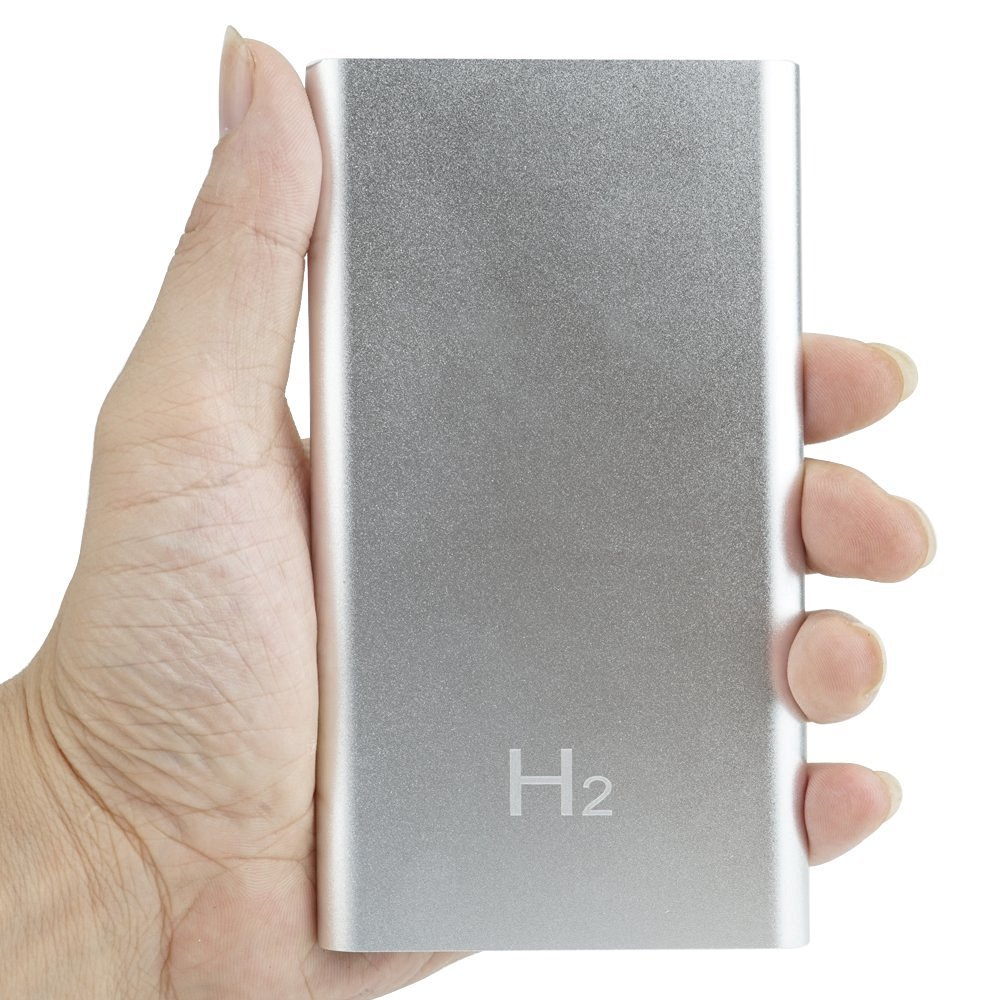

● Charger type, small and lightweight!

Easy to carry with compact size easy to carry!

● Long run time!

It can store data for up to 15 hours with 32GB compatibility!

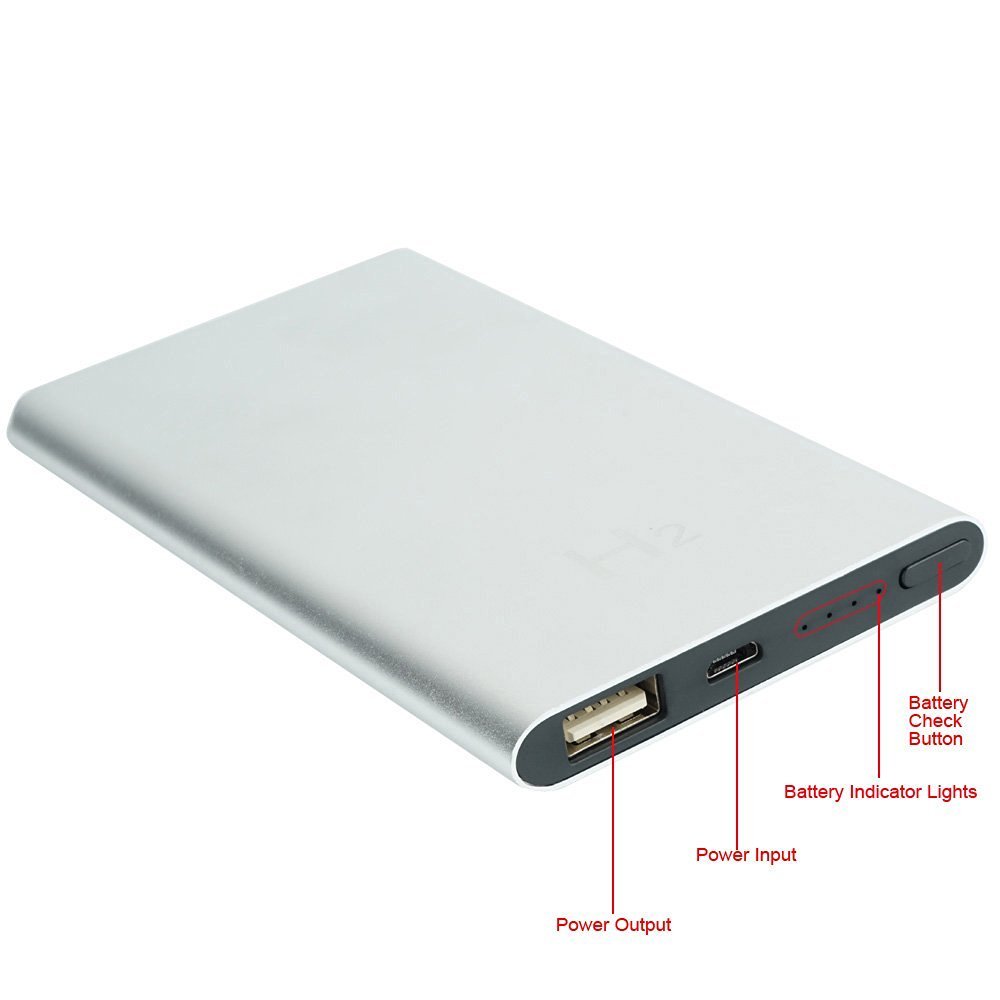

- Popular charger type, and can also be charged to external equipment such as smartphone in fact!

● Spy items in the movies reality!

A dream spy item that also uses professional detectives!

● Evidence collection items to protect yourself in daily life such as stalkers and suspicious people, DV damage!

● To protect important people, such as nursing care facilities and babysitter suspected abuse.

● This product is intended for crime prevention and security to protect important families and property.

Introduction

This instrument has a built-in lithium battery, please use it before charging for the first time before charging.

1) With the power off, you can connect to the computer with the included USB charging cable and charge it.

Blue · Red When the lamp is on, charging, when the lamp goes off, charging completed.

2) With the power off, you can charge the 5 V charger separately by using the included USB charging cable.

When the blue lamp is lit, it is charging.

At this time, you can record while charging.

CAUTION: When charging a 5 V charger separately without inserting a TF card, it takes 3 to 6 hours to charge the battery when the lamp blinks once, it is charged, it is charged.

Video Resolution:

1920 × 1080pix AVI format

frame rate:

30 FPS

Video Format

: AVI / H.264

Video code

: M-JPEG

Minimum subject illuminance:

1.0 Lux

Battery capacity:

5000 mAh

Built-in microphone:

New high performance microphone

Charging voltage:

DC-5V

charging time

: 3-6 hours

Working time:

About 3-5 hours recording

Interface type

: USB 2.0

Movement detection distance:

2 meters

Corresponding memory:

microSD card 8GB ~ 32GB compatible ※ microSD card is not included in this product.

Media player:

Operating system included, or mainstream audio / video media player

Supported OS:

Windows 10 / 8.1 / 8/7 / Windows me / xp / 2003 / vista; Mac OS; Linux

Connect to PC

Regardless of switch on standby or switch off status, when connecting to a PC without being removed, it can be used as a U disk.

Copy files, cut and paste, delete, U disk initialization, etc. can be operated freely.

When this device is inserted in the USB interface of the PC, the PC pops up the mobile disk icon after a few seconds.

When the lamp lights up, USB equipment is recognized and data can be transmitted.

Presentation:

a. If you can not recognize the PC after connecting the device to the PC or do not pop up the mobile icon even after 30 seconds, reset this device and insert it again.

b. Recommend to directly read and play the video file using the card reader of the TF card.

When directly reproducing the video file stored in the internal memory of this recording device by USB connection, there is a possibility that the data quantity is excessive, the transmission speed is slow, and the reproduction can not be performed smoothly.

c. If the card is not recognized, format it.

Recording time correction setting

When connected to a PC, you can use it as a U disk, open the "time" folder, set the time format according to the method at 2016.01.01 00: 00: 00, and set the year, month, day and hour, minute, second

Divide by space between.

Then save it.

Saving it safely after saving the file.

Restart, time setting is completed.

Features:

• Please enter model number Confirm this is compatible:
• 【High Quality / High Resolution】 Movie is "real 1920 x 1080pix"!
• Compared with conventional models, overwhelming high image quality / high resolution shooting is achieved!
• Repeat recording: Even if the memory card becomes full, overwrite is deleted from the old file, overwrite recording function is installed, data can be transmitted simply by connecting to the USB terminal of the PC.
• microSD supports up to 32GB!
• (Optional) More data can be saved.
• 【Actual charging possible】 Actually charging to iPhone or smartphone is possible.
• You can use it as a charger with your own cable, a built-in mobile battery with a large capacity of 5,000 mAh, you can record for a long time.
• [Actual chargeable] Can be charged to your iPhone or smartphone in fact!

Product information:

Shipping Weight: 290 g

Package Dimensions: 7.90 x 13.99 x 15.19 cm
