Product Description

WINGONEER® trademark Reg.NO:4747611

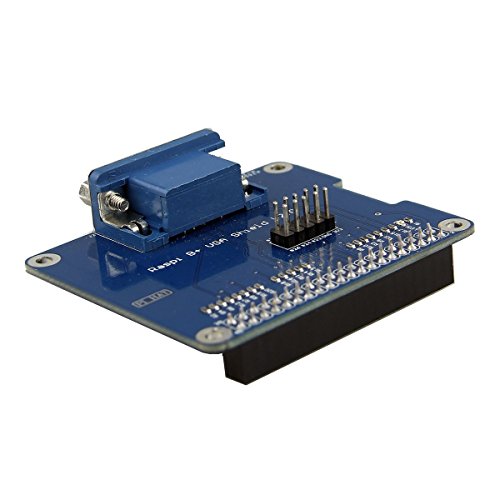

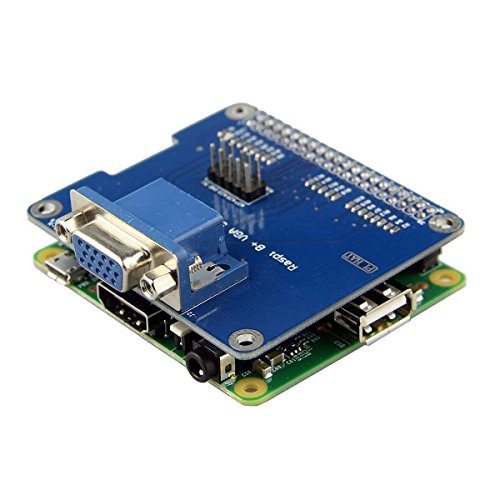

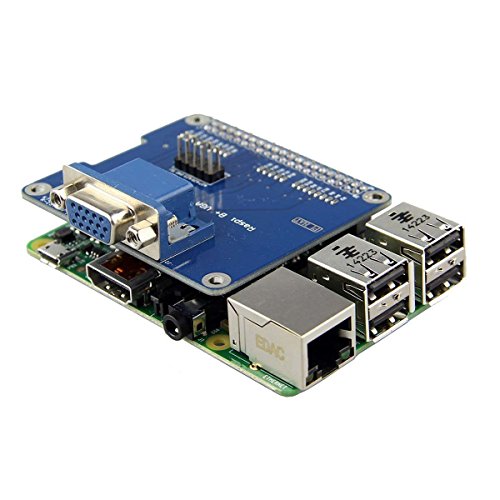

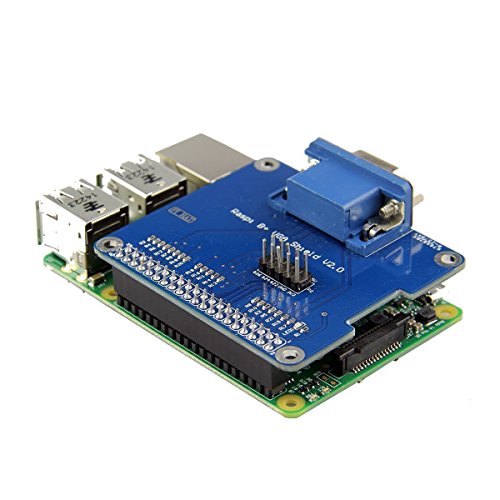

WINGONEER GPIO to VGA Adapter HAT Expansion Board / Shield for Raspberry Pi 2 Model B, B+, A+, Zero

Instructions:
It is a neat and very useful solution for using a VGA screen / monitor with your Raspberry Pi (2, B+ & A+) and do not take up the HDMI interface.
The VGA connection is driven natively in hardware over the GPIO pins (i.e. BCM2836 or BCM2835 CPU has a parallel display interface on the pins) and uses around the same CPU load as the HDMI connection on board.

The VGA output supports the same resolutions as the HDMI one (i.e. from 640 x 480 up to 1920 x 1080 60 fps).
At the highest resolution, the pixel quality is almost as good as the HDMI.
It is also possible to drive this VGA interface at the same time as the HDMI connection, so a dual / double screen set up is possible.

Features:
• From 640 x 480 up to 1920 x 1080 60 fps
• 6-bits per colour channel (RGB)
• Maximum of 262,144 colours
• Uses GPIO pins 2-21
• Only 6 GPIO pins left: 22-27

Please note:
Only support:
Raspberry Pi 2 Model B (1GB of RAM)
Raspberry Pi Model B+ (512MB of RAM)
Raspberry Pi Model A+ (256MB of RAM)

Packing List:
1 x WINGONEER GPIO to VGA Adapter HAT Expansion Board / Shield for Raspberry Pi 2 Model B, B+, A+, Zero

Feature

From 640 x 480 up to 1920 x 1080 60 fps
6-bits per colour channel (RGB)
Maximum of 262,144 colours
Uses GPIO pins 2-21
Only 6 GPIO pins left: 22-27
Brand : WINGONEER®
Item model num : WX820
MPN(PartNumber) : 1
EAN : 0723466645621
Package Dimensions(LxWxH) : 12x10x2cm ; 499 g
