Item Descriptions:

With waterproof design, it can be installed outdoors.

Using the included belt, you can easily fix it to wood and balls.

Note: Since the human sensor detects temperature change, it can not detect anything that has no temperature change, such as a stationary object.

For example: If there is glass in front of the camera, outdoor monitoring from cars and indoors is impossible.

"if you thought it was a malfunction

It seems that the power does not turn on.

1, Please check whether the battery power is available.

2, Before installing the battery, operate the slide switch to the "OFF" position.

3, Please be sure to correctly install the battery positive and negative, install 8 batteries.

specification:

Record: Supports cards up to 32GB

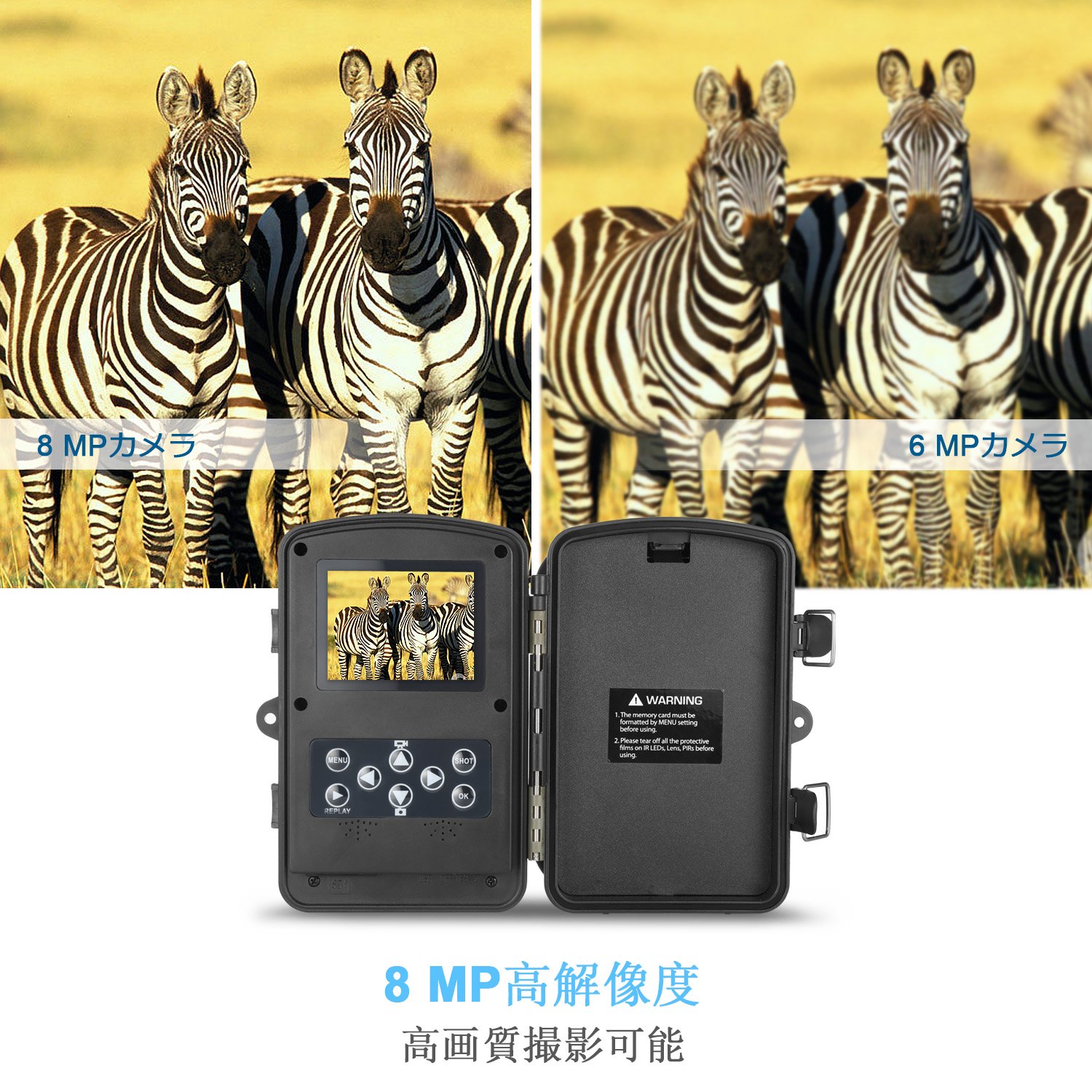

Photo resolution: 8 M: 3264 * 2448 (interpolation); 5 M: 2592 * 1944

Video resolution: 1280 × 720 (30 fps), 848 × 480 (30 fps), 640 × 480 (30 fps)

Video length: 1 second to 10 minutes

Effective: Daytime: 1 m to infinity.

Night time: 3m - 20m

Trigger distance: up to 15 m

Trigger time: about 1 second

important point:

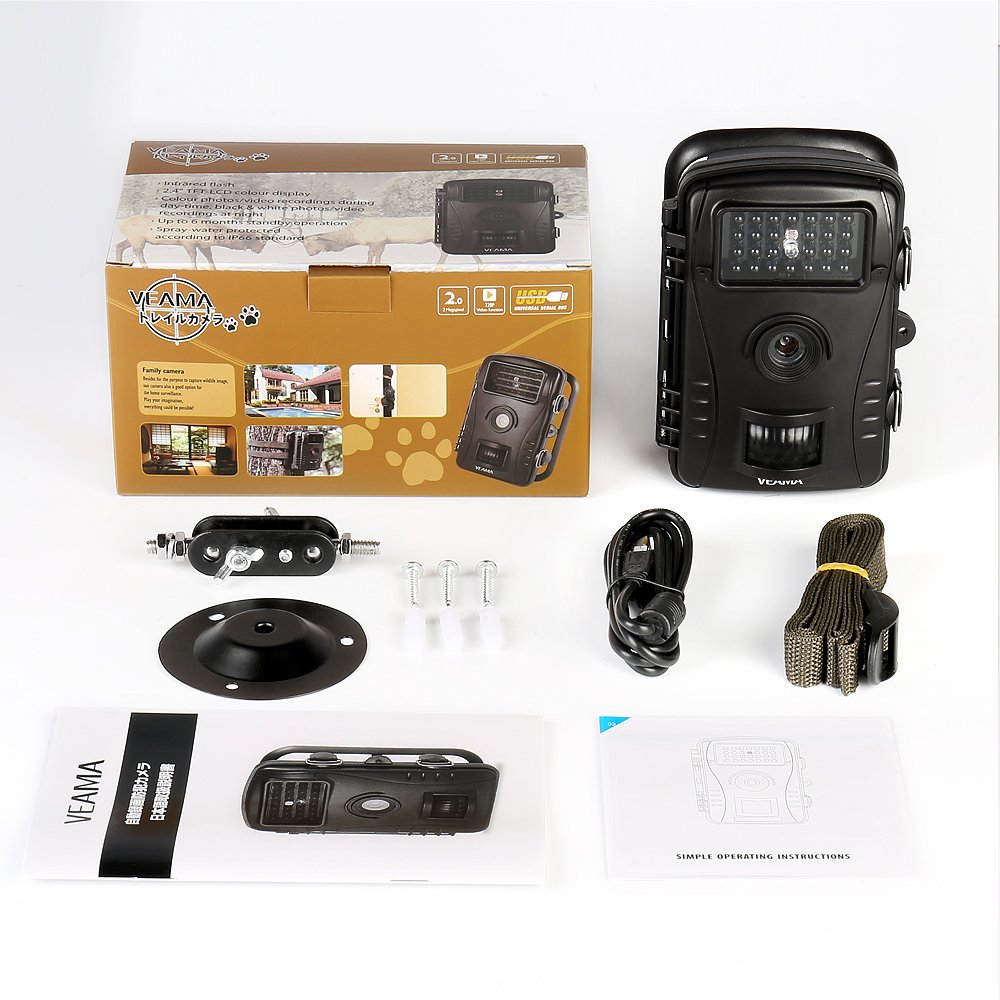

Open the box from the bottom, belt (strap

) And the USB cable.

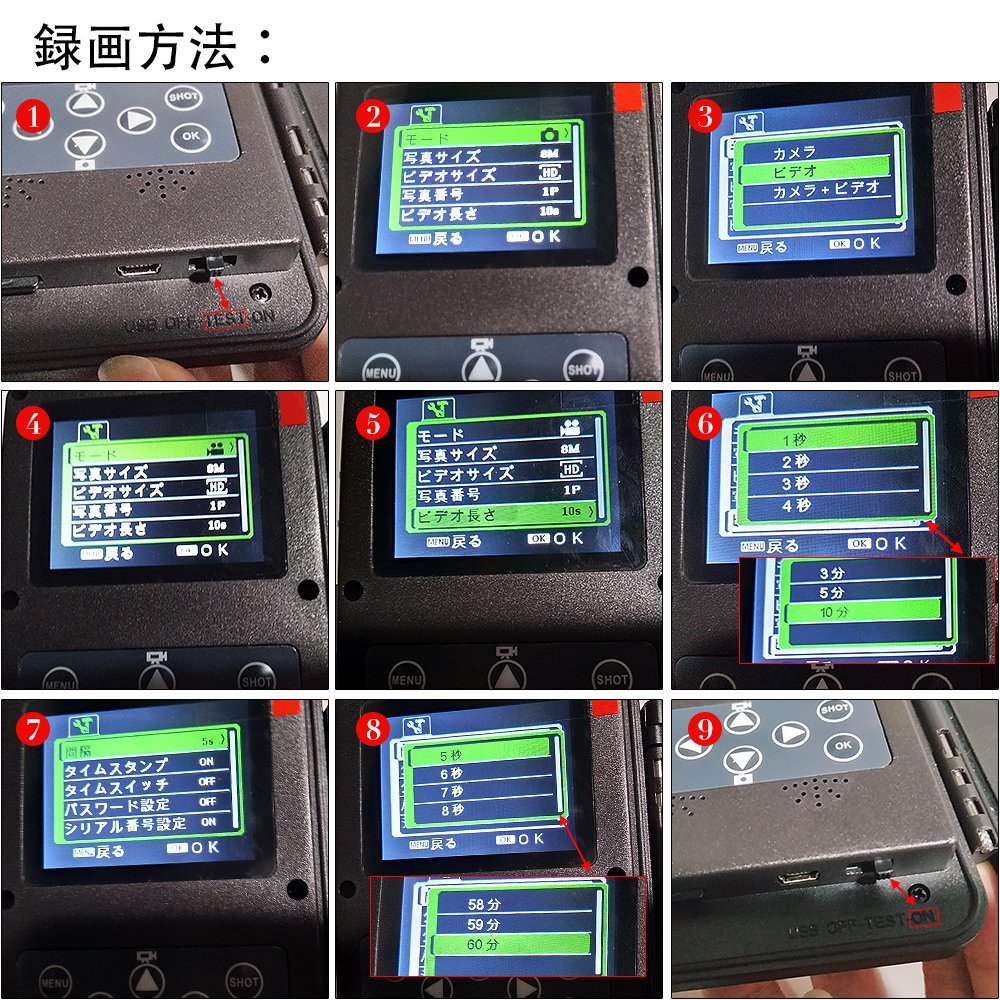

Method of operation:

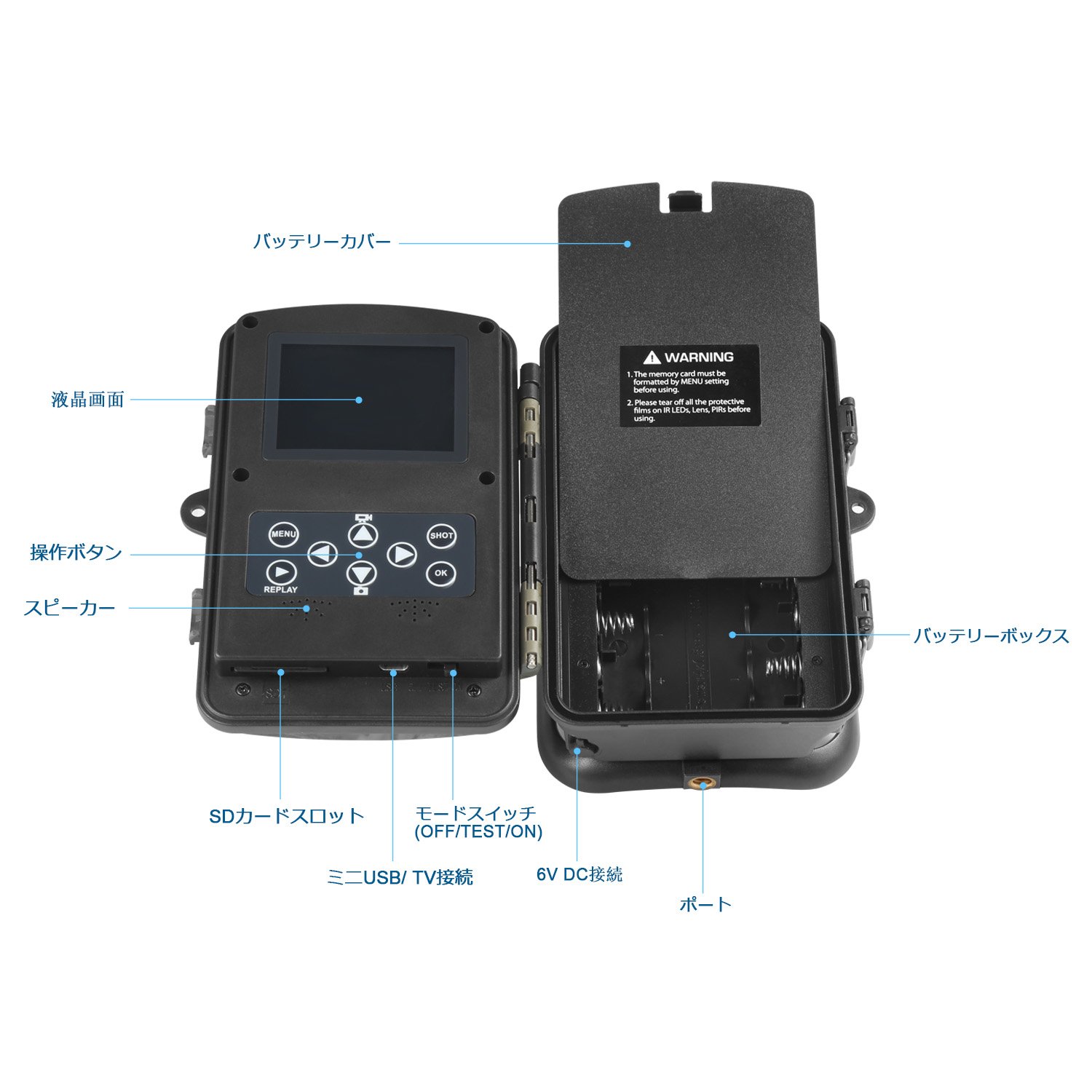

First open the battery cover and insert 8 AA batteries.

Insert a separately prepared SD card from the bottom side.

Move the mode switch to the "TEST" position in the middle.

When inserting the SD card, do not put the power switch in the ON position.

Press the "MENU" button and format the SD card with "Format".

Set "Default Set" to "YES".

Select "Language", change to Japanese notation with "JAPANESE".

This completes the setting.

Then press the button to set the "photo" mode.

I will take a picture with "shot".

Place in an arbitrary place and slowly move about 3 m apart.

It repeats it several times.

(About once every 10 seconds about three times)

Move the mode switch to the "TEST" position in the middle.

Check with "REPLAY" button.

This is the photo mode.

In movie mode, move the mode switch to the "TEST" position in the middle and press the button.

Move the mode switch to the "ON" position on the right.

(It turns on when turning it ON, it looks like the power supply goes down)

Features:

• Please enter model number Confirm this is compatible:
• Detects the movement of infrared rays emitted by people and animals, and automatically shoots movies and still images.
• The data is saved to a SD card (sold separately) with a maximum of 32 GB.

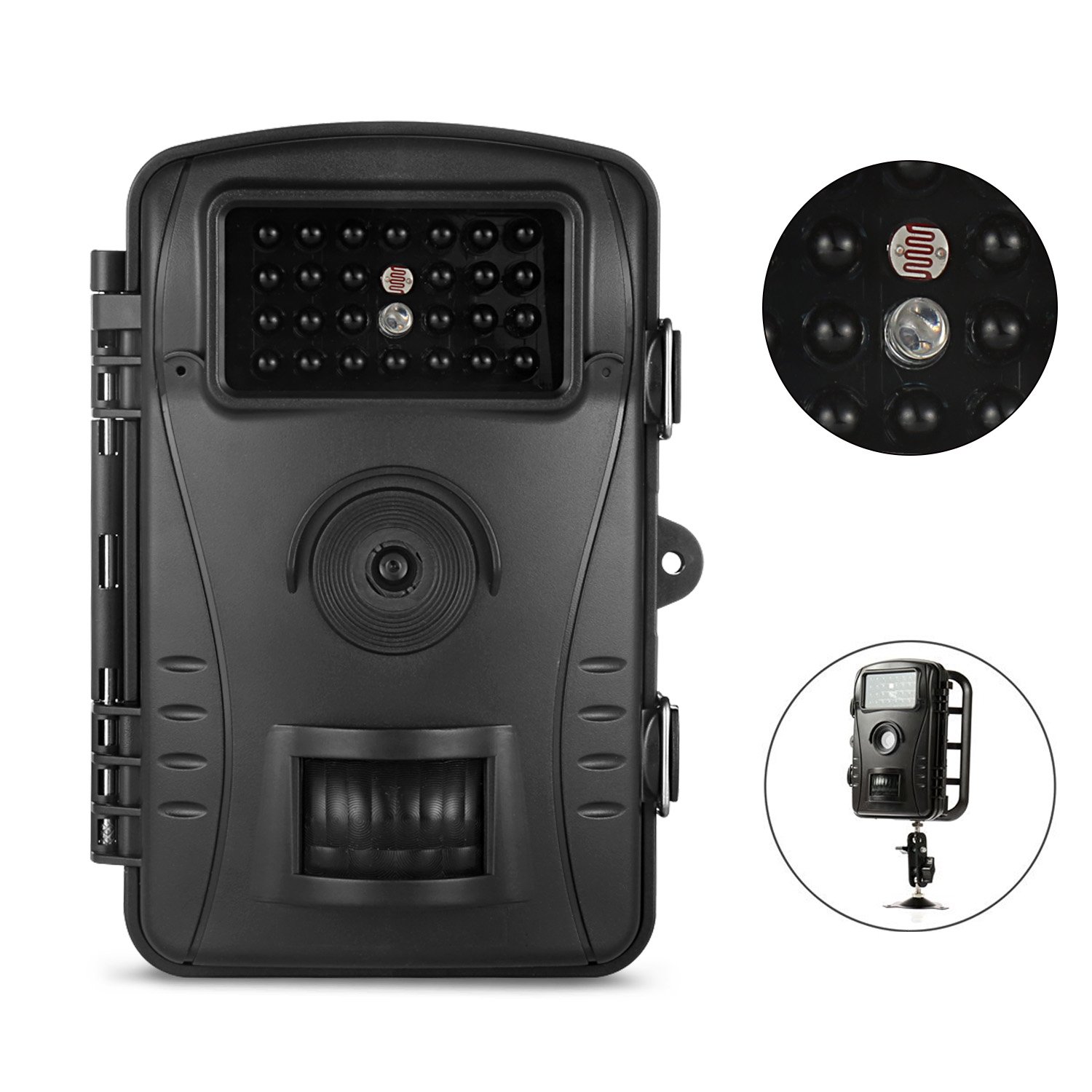

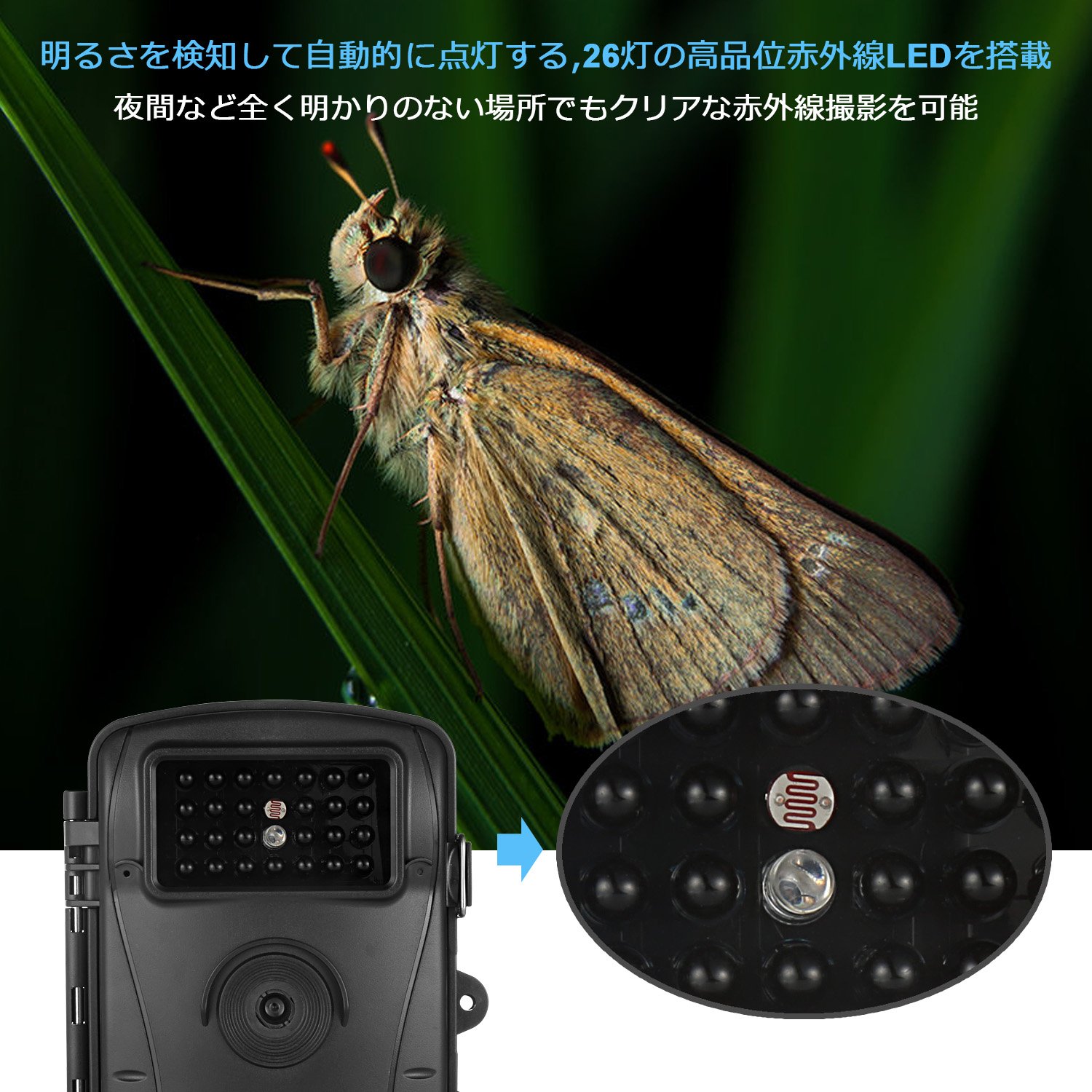

• You can also shoot at night with an infrared LED light invisible to the human eye (automatic switching by illuminance sensor).
• JIS protection grade IP54 waterproof / dustproof specifications can be installed outdoors exposed to rain or dust.
• Standby time of up to 6 months with 8 AA batteries (fluctuate depending on shooting mode and shooting frequency).

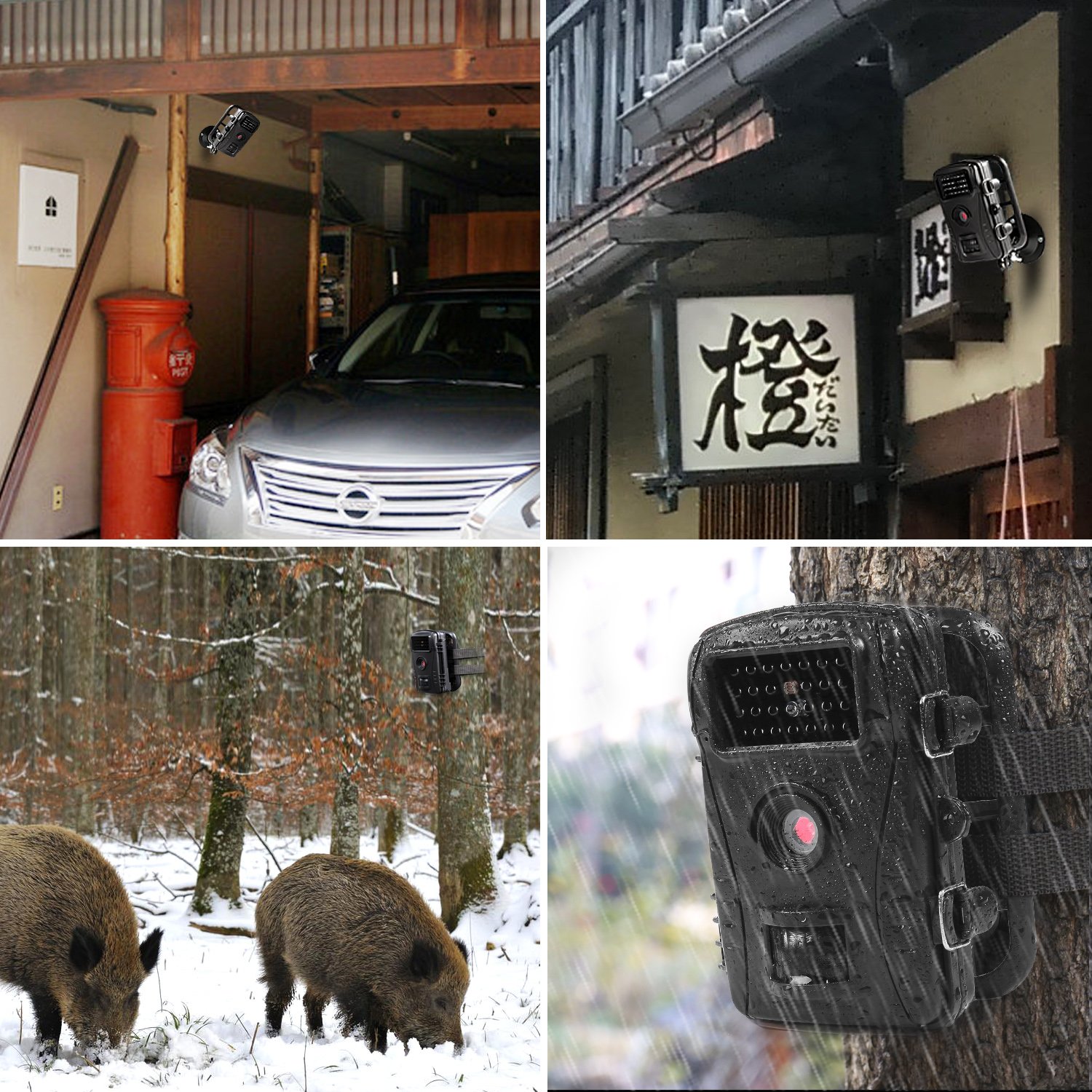

• You can use it as a surveillance / security camera easy for wiring and power supply unnecessary, such as countermeasures against mischief in parking lot, countermeasures against birds and beasts in agriculture and livestock industry.
• It can also be used for emergence of insects and growth of plants with the time lapse function.
• It is also ideal for wildlife observation, if you work on railway roads or water fields you can take valuable images and it is ideal for free research on ecological investigation and summer vacation.
• Since the setting screen can also be changed to Japanese (Language → japanese), it is easy to understand without getting lost.
• Japanese instructions are also attached.

Product information:

Shipping Weight: 580 g

Package Dimensions: 10.01 x 11.99 x 18.01 cm
