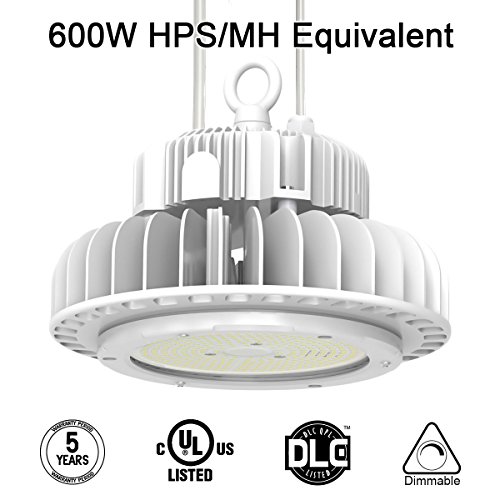

Adiding LED High Bay Lighting,150W UFO Hi Bay Light 130 Lm/W Lumileds SMD 3030 LED 19500 Lumens(600W HID/HPS equivalent)5000K Dimmable MeanWell Driver for Garage Warehouse Workshop DLC UL,White











150w-19,500lm-dimmable-black


200w-26,000lm-dimmable-black


240w-31,200lm-dimmable-black

Product Description

● Light Dimmer Cord Included

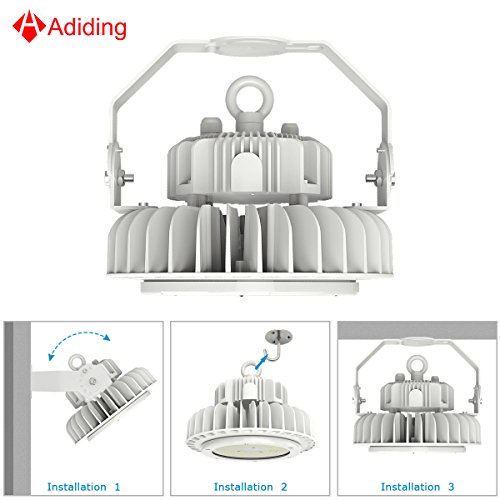

● Easy Installation and Retrofitting
● 130 Lumens per Watt/5,000K(Daylight)
● Cold Forging Technology

Well Don Professional LED Lighting Solution Provider
Based on 3th generation, we adopted cold forging technology&new housing design on Our 4th generation commercial-grade 150W LED High Bay Light.
More Beautiful! More Lightweight!

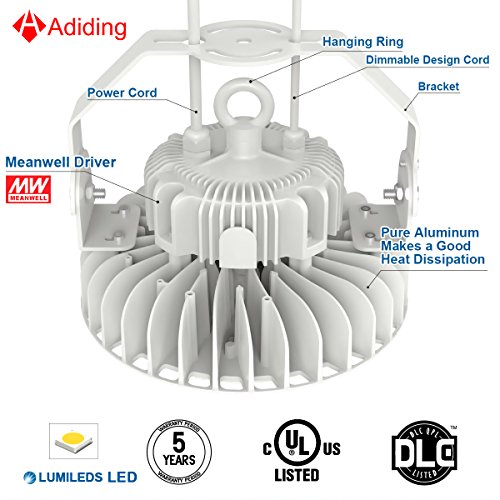

Why we adopt Mean well Driver?
The Mean well driver has smart power management to assure a steady power supply,
high efficiency and use less energy.
Compact in size & Good heat dissipation.
Why 5,000K? not 4,000K or 6,000K.
5000K is a color temperature parameter, which is the nearest to day light and suit for
American people eye care habits.
In fact! Not only 5 years lifespan.
If the led high bay light keeps in working condition day and night, it may be work 5 years more or less for you.
However, most lights works 10 hours a day, that would be more than 10 years lifespan.

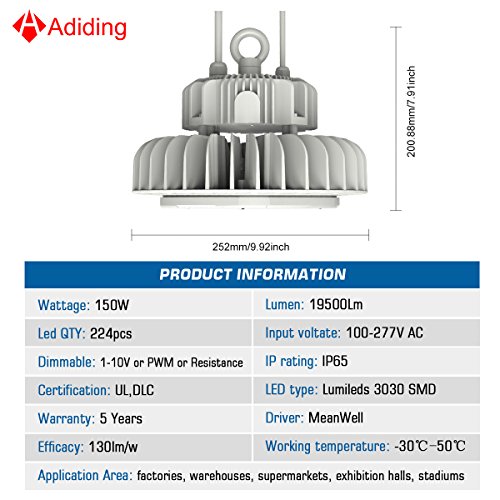

Technical Details

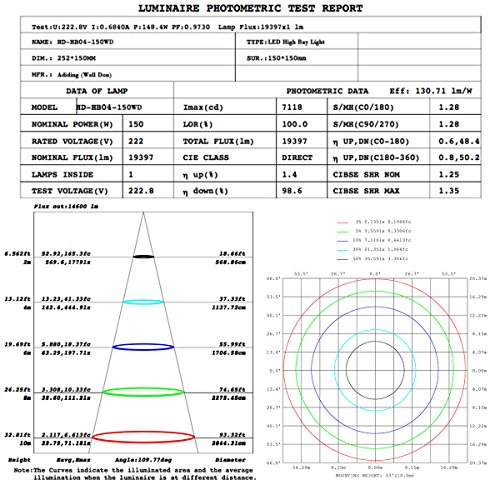

Optical Data:
LED QTY: 224 pcs

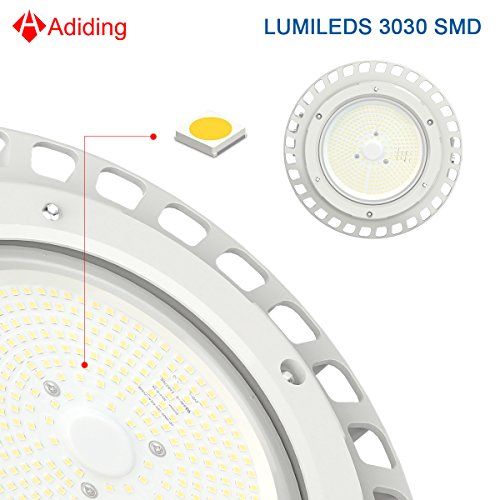

LED Type: PHILIPS
System Efficacy: 130LM/W(CCT=5000K)
Luminous Flux: 19500LM(CCT=5000K)
System Efficiency: >90%
Beam Angle: 120°
CRI: >80Ra
CCT: 5000K

Electrical Data:
PowerSupply: MeanWell
Input Voltage: AC100-277V
Power Frequency: 50/60Hz
Output Voltage: DC28.8-48V
Total Harmonic Distortion: <15%
Output Current: 3.3A (Constant Currrent)
Power Efficiency: >93%
Power Factor: >0.93
Total Harmonic Distortion: <15%

Package Include:
1pc x LED High Bay Light
1pc x Mount Bracket
1pc x Eye-Hook Mount
1pc x User Manual

Feature

✔ QUALITY-CERTIFICATION: UL DLC CE ROHS ERP RCM FCC TUV-GS CB Approved, which is guarantee of safety& quality.
✔ DIMMING CORD INCLUDED: dimming cord to connect with 1-10V dimmer and adjust the brightness of the light.
✔ ENERGY SAVING: Adiding Led high bay lights significantly save 75% electricity, while provides 19,500 lumens equivalent to 4* 150W halogen lamps/sodium lamps.

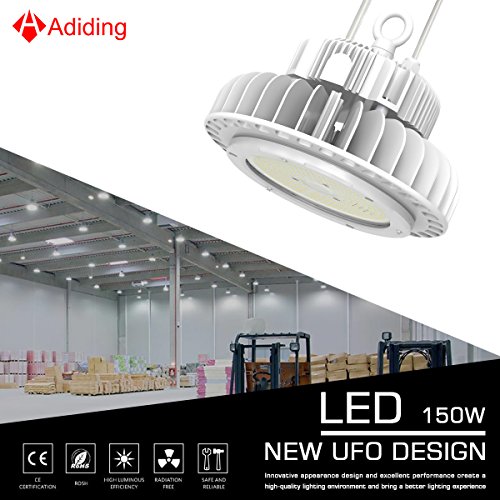

✔ WIDELY USED: Adiding 150W LED high bay is perfect not only for industrial commercial applications, like factory, warehouse, stadium, supermarket, exhibition hall, workshop, but also ideal for office, meeting room, corridor, class room, garage and backyard.
✔ Lifetime rating of 50,000 hours with 5-year warranty, that's over 10 years @ 10 hours/ day.
Brand : Well Don
MPN(PartNumber) : WD-H04
EAN : 0608119393756
Product Dimensions(LxWxH) : 26x23x20cm ; 5443 g
Package Dimensions(LxWxH) : 32x32x23cm ; 5443 g
