SX1278 LoRa ESP32 0.96 inch Blue OLED Display Bluetooth WIFI Lora Kit 32 Module Internet Development Board 433mhz for Arduino
SX1278 LoRa ESP32 0.96 inch Blue OLED Display Bluetooth WIFI Lora Kit 32 Module Internet Development Board 433mhz for Arduino



Product Description
Shipping list

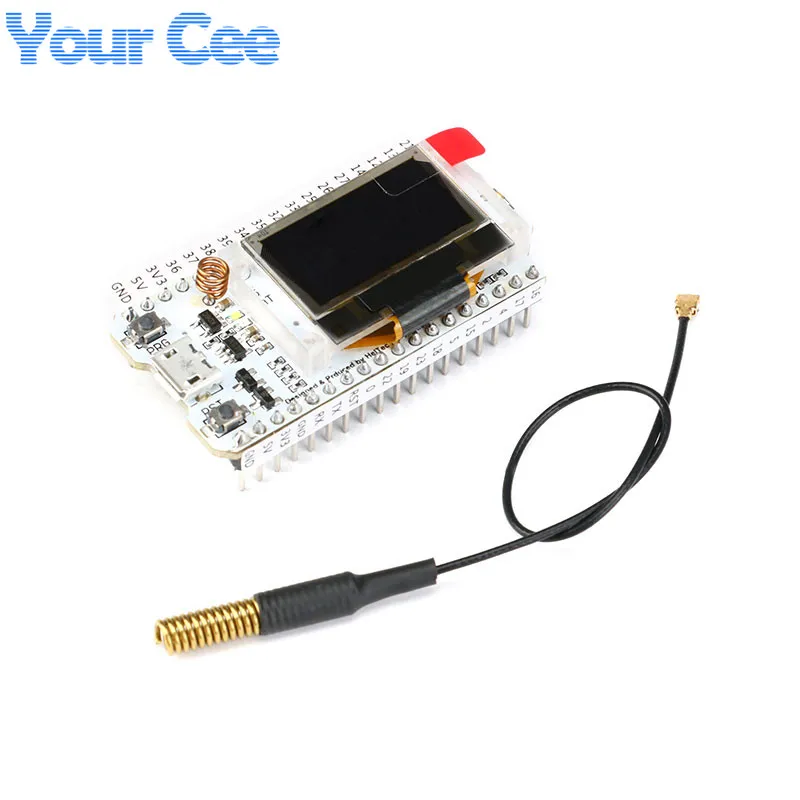

WIFI LoRa 32 board ( soldered pins+pin stickers) + Antenna
SX1278 LoRa ESP32 (1)
3

Description
WIFI Kit series is the new development of the cost-effective networking program the main chip using Lexin ESP32 Tensilica LX6 dual-core processor clocked at 240MHz computing power up to 600DMIPS chip built-in 520 KB SRAM 802.11 b / g / N HT40 Wi-Fi transceiver baseband protocol stack and LWIP integrated dual-mode Bluetooth (traditional Bluetooth and BLE low power Bluetooth).

This product is based on the WIFI Kit 32 added SX1278 chip that is LoRa ? remote modem 433MHz frequency about -148dBm high sensitivity +20 dBm power output high reliability transmission distance (measured open area communication distance 2.6Km).

Onboard 32MByte Flash Wi-Fi antenna 0.96-inch blue OLED display lithium battery charging circuit and interface CP2102 USB to serial chip the perfect support for Arduino development environment can be very simple and fast for program verification and product development.

Operating voltage: 3.3V to 7V
Operating temperature range: -40 ° C to + 90 ° C
Supports Sniffer Station softAP and Wi-Fi Direct modes
Data rate: 150 Mbps @ 11n HT40 72 Mbps @ 11n HT20 54 Mbps @ 11g 11 Mbps @ 11b
Transmit power: 19.5 dBm @ 11b 16.5 dBm @ 11g 15.5 dBm @ 11n
Receiver sensitivity up to - 98 dBm
UDP continues to throughput by 135 Mbps


Onboard WIFI function

WIFI

LoRa send and receive test

Onboard lithium battery charge and discharge circuit and interface (battery is not included in the parcel)

The product must be used with the IPC interface 433MHz antenna (if not connected to the antenna may damage the LoRa chip)

Perfect support development environment Win 7 above operating system without manual installation of the driver you can brush NodeMCU firmware a lot of technical information and routines please submit the order to the customer service request.
