Product Description

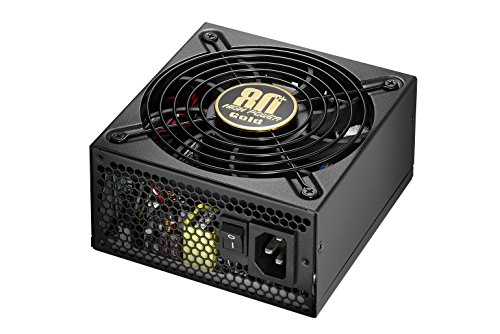

HIGH POWER® SFX-L500 GD is a full modular cable design high efficiency 80plus Gold certified upgrade power supply. Designed to fits and works in standard ATX form factor as well as a wide-range of SFX form factor name brand and custom gaming PC systems. Safety certified to provide a safe and stable power source. Proven to support high efficiency low heat systems as well as the latest gaming PC systems equipped with single or dual PCI-Express video cards. Oversized 120mm quiet cooling fan together with higher efficiency allows the unit to dissipate lower heat and less noise at the same time. The sophisticated on-board fan speed controller automatically spin down under low system work load to further lower the fan noise.

Feature

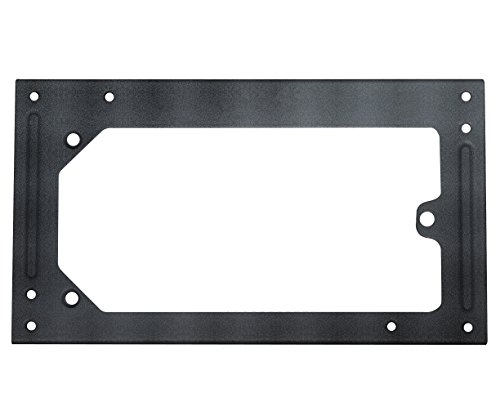

Solid 500 Watts Performance with heavy duty single 12V Output @ 40A (480W). Installed in SFX chassis as well as standard ATX chassis with included mounting bracket
TUV, cTUVus, CB, CE, FCC Safety & EMI Approved. Ecova approved for minimum efficiency of 90% at 50% load. Full modular cable design for easier service and increase PC internal air flow. EuP 2010 Lot 6 Compliant (System Idle power usage less than 1W). Active PFC Full Range with Automatic AC input selection - no need to select 110v AC or 220v AC.
Dual PCI-Express power connectors. Variable fan speed - Higher speed for higher output load (*see table below). Built-in Full Protection: Under-Voltage Protection, Over-Voltage Protection, Over-Power Protection, Short-Circuit Protection, Over Current Protection, and Over Tempeture Protection. Galvanized steel casing for long rust-free protection with black color coating. RoHS Compliant - made with hazardous-free components.

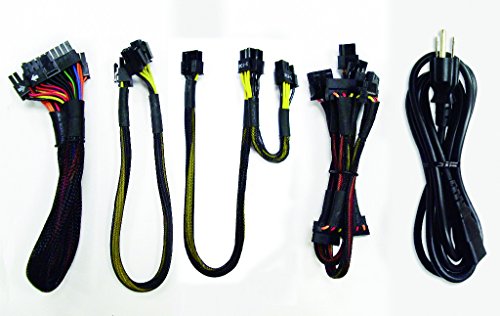

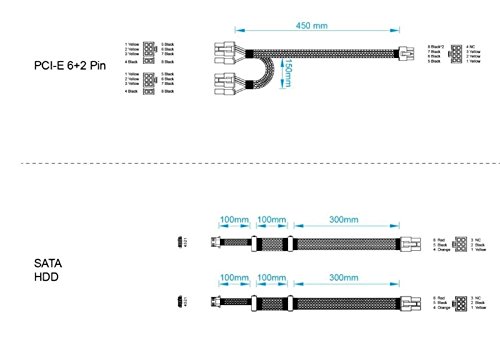

Power Connectors & Cable Length Summary: 1x 20+4pin Main Connector (450mm), 1x 4+4pin ATX/EPS 12V Connector (450mm), 4x SATA Connectors (300mm/ 400mm), 2x 6+2pin PCI-Express Connector (450mm/ 600mm), 2x 4pin Molex Peripheral Connectors (500mm).
Technical Specification: Active PFC Full Range with Automatic AC input selection - no need to select 110v AC or 220v AC. AC input from 100V to 240V. Outputs: +3.3V@20A, +5V@20A, +12V@40A, -12V@0.3A, +5VSB@3A; +12V total output: 480W, +5V/ +3.3V Combined output: 105W. Built-in Protection: UVP/OVP/OPP/SCP/OCP/OTP. Safety: FCC,CE,cTUVus,TUV,CB,CCC. Dimension (W / H / D)cm 12.5 x 6.3 x 13.
Brand : HIGH POWER
Item model num : SFX-L500 GD
MPN(PartNumber) : HPN-500GD-F12C
EAN : 4712795605020
