Item Descriptions:

Product introduction

AKG WMS 40 PRO MINI 2 VOCAL SET DUAL Wireless microphone 2 sets

The wireless series boasts a phenomenal cost performance released from the AKG brand.

Adopted the 800 MHz band (B band) with high transmittance of shields such as walls and human body and excellent stability.

You can use it widely at live house, school festival, lecture meeting, various events etc. at reachable distance of about 20M at a place with good visibility.

VOCAL SET DUAL can use two handheld microphones at the same time.

Ideal for event speech and twin vocal bands.

WMS 40 PRO MINI is extremely easy to operate, even if you are using wireless for the first time, it is safe.

Just turn on the transmitter and receiver and adjust the output level and use it immediately.

There is no need for any difficult setting.

The receiver is equipped with an LED for notifying the power ON, an LED for notifying that radio waves are normally received, and an LED for warning the input of excessive signal.

The LED of the transmitter can also check the remaining battery level, and you can grasp the operating status at a glance.

Furthermore, the transmitter is equipped with a slide type power switch, and it can easily switch OFF / Mute / ON at hand.

WMS 40 PRO MINI is compact, lightweight and active in various scenes.

Both 2-channel receiver and 1-channel receiver are compact with a width of 134 mm and a depth of 132 mm, so you can choose the installation location.

Optional rack mount brackets are also available and up to two receivers can be installed in the space of 1 EU EIA slender handheld transmitter is handy for small women and children with small hands and can be handled without fatigue.

WMS40 PRO MINI's handheld transmitter stands out vocals with clear sound.

※ Maximum simultaneous operation number of channels is 2.

Since PRO MINI 2 VOCAL SET DUAL is a 2 channel model, it is possible to use one set within the same venue.

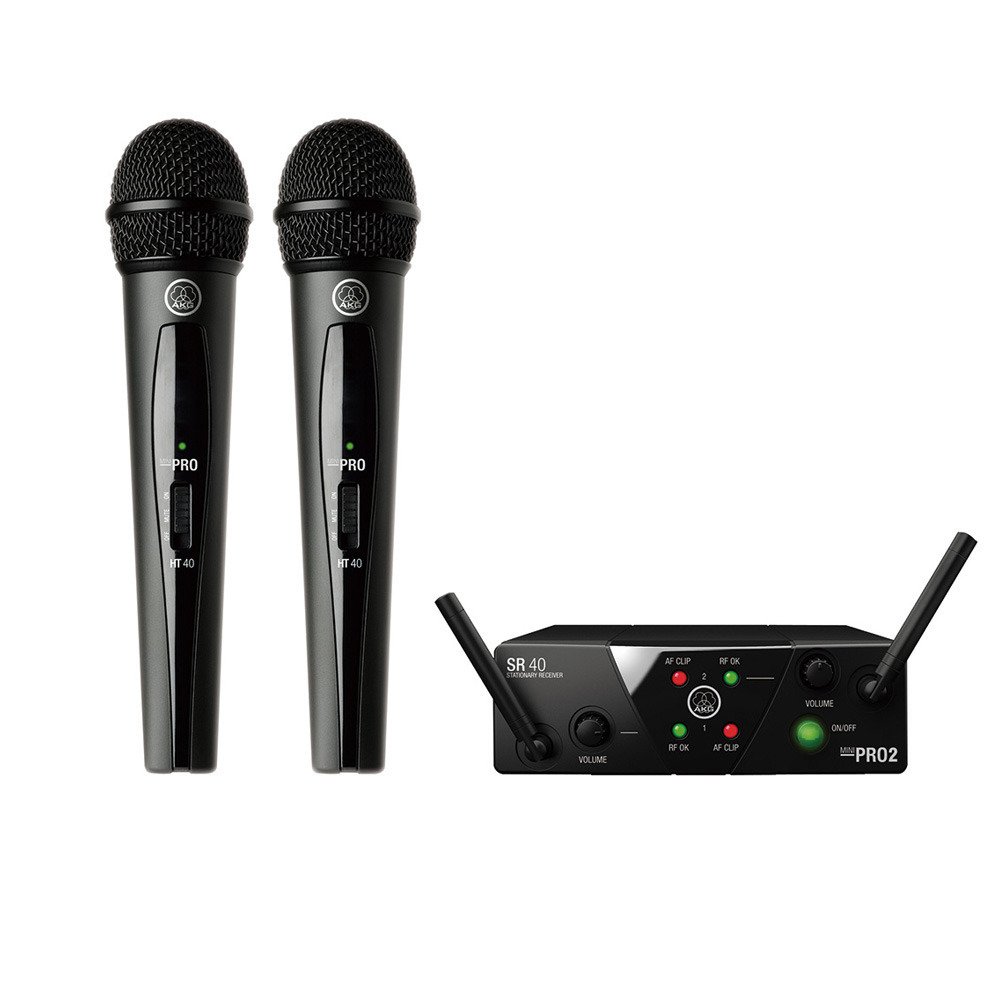

WMS 40 PRO MINI 2 VOCAL SET DUAL

2 channel receiver (SR 40 MINI PRO 2), handheld transmitter (HT 40 MINI PRO) × 2,

AA alkaline battery x 2, power adapter, Japanese manual instruction manual

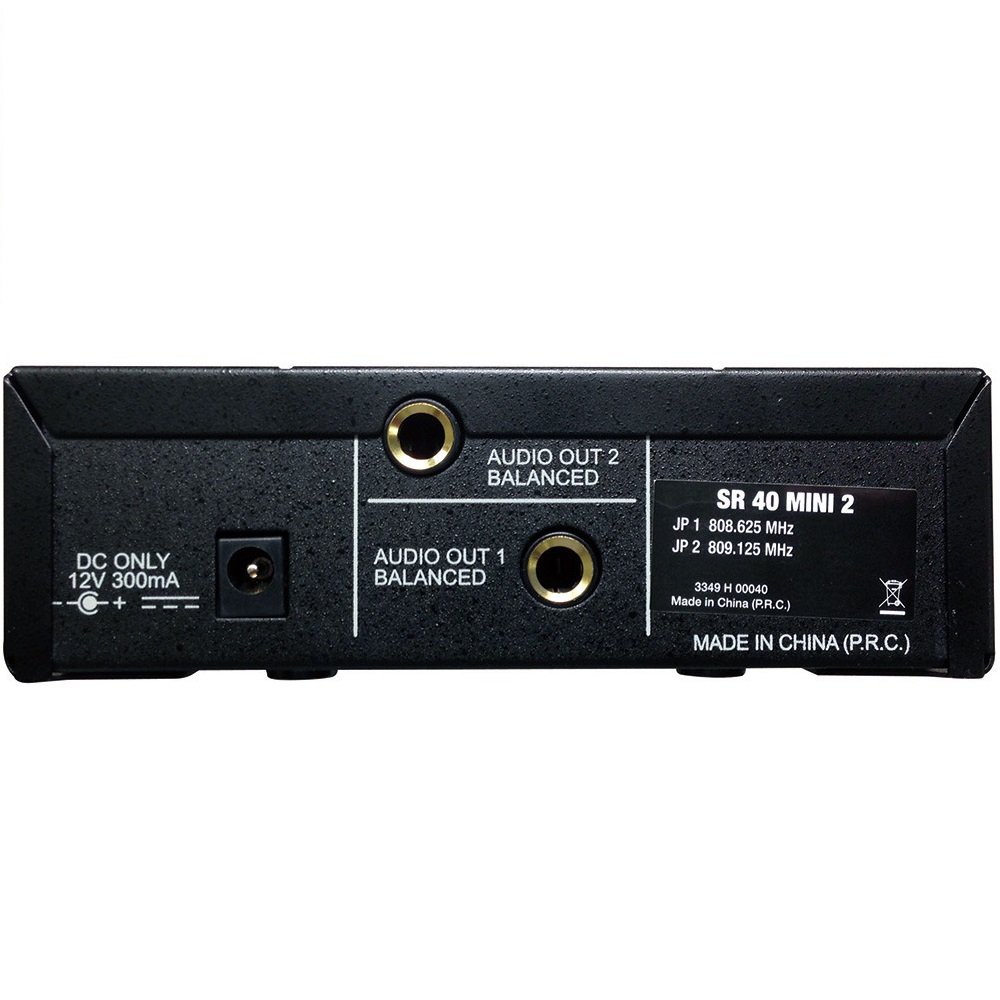

2 channel receiver (SR 40 MINI PRO 2)

Number of outputs 2

Terminal standard phone jack (3P)

output

Impedance 1.3 kΩ

Maximum power level 5.7 dBu

SN ratio 110 dB (A weight)

Power supply DC 12 V (0.5 A), AC adapter (AC 100 V, 50/60 Hz)

Dimensions (W × H × D) 134 × 43 × 132 mm (removal part)

Weight 524 g

Handheld transmitter (HT40 MINI PRO)

Antenna type built-in antenna

Power source AA alkaline battery × 1 or AA Ni-MH rechargeable battery × 1 or AA lithium battery × 1

Battery life Alkaline battery: about 30 hours, Ni-MH rechargeable battery: about 30 hours, lithium battery: about 30 hours * It depends on usage environment.

Dimensions (φ × H) 53 × 228 mm

Weight 192 g

Attention (Disclaimer)> Please be sure to read

The maximum number of simultaneous operable channels is the maximum number of channels that can be operated at the same time when used under conditions where there is no interference of radio waves.

Only one set can be operated simultaneously in the same venue, one set in the 2 channel model, and two sets in the 1 channel model.

1 channel model has JP1 and JP2 versions with different transmission frequencies.

To operate two sets at the same venue at the same time, please prepare one set of different versions.

Features:

• Please enter model number Confirm this is compatible:
• Number of outputs 2
• Terminal standard phone jack (3P)
• Impedance 1.3 kΩ
• Maximum power level 5.7 dBu
• SN ratio 110 dB (A weight)

Product information:

Shipping Weight: 1378 g

Package Dimensions: 6.40 x 28.60 x 29.21 cm
