Product Description

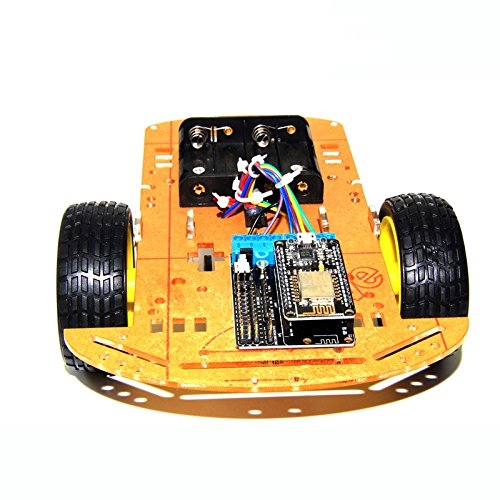

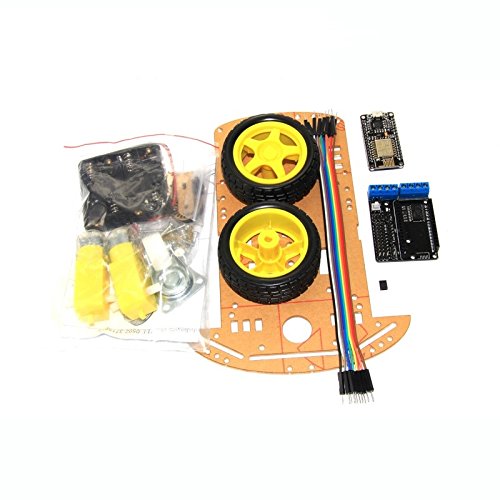

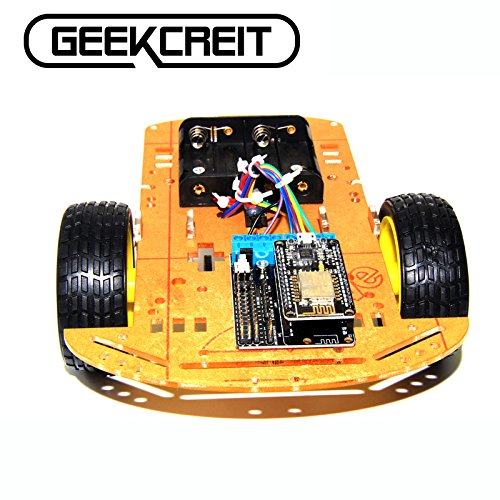

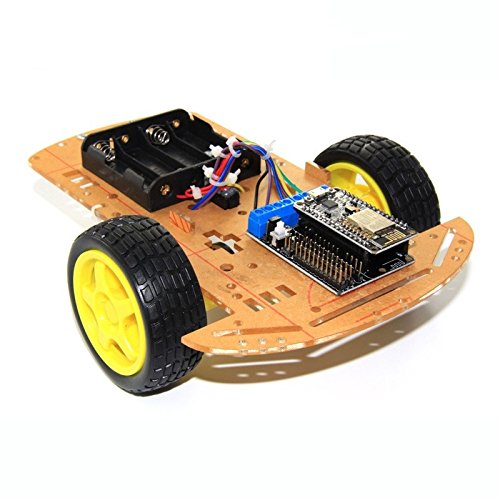

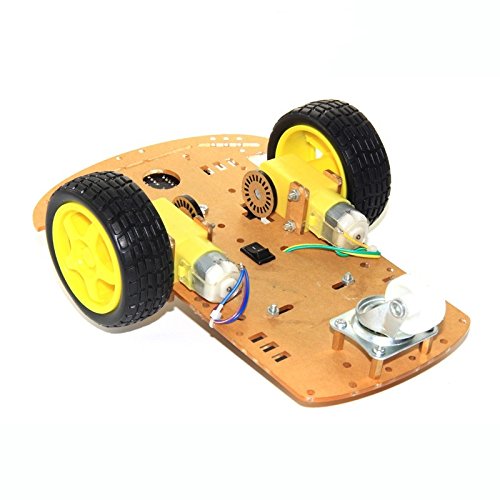

Geekcreita"￠ Doit DIY NodeMCU Lua 2WD Open Source ESP8266 WiFi Smart Car Kit




Description: This WiFi RC smart car is designed and developed based on ESP-12E from ESP8266, which can be controlled by mobile, PC. This tank/car chassis is assembled by ESP8266 WiFi module, Based on which, doit company has already designed and developed the mobile phone App with Android and iOS version. By the Apps, the tank/car chassis can finish some basic functions, such as, forward, left right, back, and return. Doit company provides the richful documents, including the source code, which can let many developers, lovers, and students to DIY the wanted functions. More details, please see the "download" menu.

Some useful download links:

https://smartarduino.gitbooks.io/user-manual-for-wifi-car-by-nodemcu-doitcar-/content/index.html
Motor DataSheet for Tank/Car Chassis:
http://bbs.smartarduino.com/showthread.php?tid=2039 Chassis Installation http://bbs.smartarduino.com/forumdisplay.php?fid=21 Software manumal http://bbs.smartarduino.com/showthread.php?tid=2036 Android App http://bbs.smartarduino.com/showthread.php?tid=1978 iOS App http://bbs.smartarduino.com/showthread.php?tid=2037 FirmWare http://bbs.smartarduino.com/showthread.php?tid=2013 Motor shield http://bbs.smartarduino.com/showthread.php?tid=6 NodeMCU http://bbs.smartarduino.com/forumdisplay.php?fid=2
Feature:

Motor power supply (VM): 4.5V ~ 36V, can be a separate power supply; Control power (VIN): 4.5V ~ 9V (10VMAX), can be powered separately; Module provides short-circuit sub (short the VM and VIN), you can easily use one power (which must be 4.5V ~ 9V) simultaneously drive and control the motor; Logic Operating current Iss: ≤60mA (Vi = L), ≤22mA (Vi = H); Working current driving portion Io: ≤1.2A; Maximum power dissipation: 4W (T = 90 ℃) Control signal input level: High: 2.3V≤VIH≤VIN; Low:
