Product Description

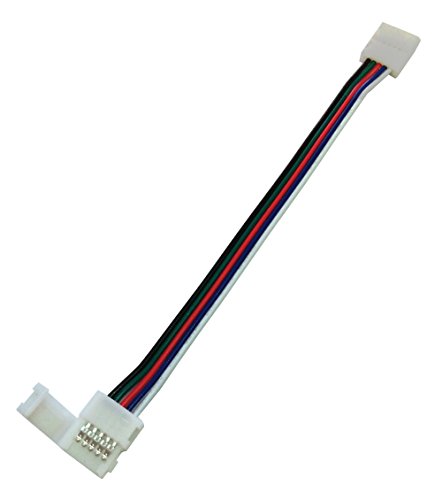

These solderless 5 pin connectors are ideal for non-waterproof 10mm (SMD5050) RGBW LED trip, They are fully bendable and are perfect for extending your non-waterproof 5050 LED light strip across a gap, around an obstacle, or for making a bend.

Installation Instructions:
1.Ensure your section of LED light strip has 5 contacts (+, B, R, G,W) and all the contacts all clean. 2.Open the white clasp of the connector.
3.Insert the tape light into the clasp, and with the 4 contact points of the led strip under the 5 prongs of the connector- make sure positive and negative poles match. (If you have a waterproof LED strip, should peel off silicon on the surface around soldering line area)
4.Close the clasp with the plier,gently pull the tape to confirm you've made a good connection.
5.Your connection is made!
This product is used only to conductive connection, want to solid connection please to solder.

Technical Specifications :
Metal material: Copper/Surface treatment:tin
Plastic material:NyLon66 UL94V-0
Wire range: AWG#22#20
Applicability PCB board: thickness:0.2-0.4mm / width:10mm
Applicable specifications: 60/30leds per meter SMD5050 RGBW Non-Waterproof strip
Working voltage & current: DC12-24V,4A
Working temperature:-10℃~ +55℃

Package :

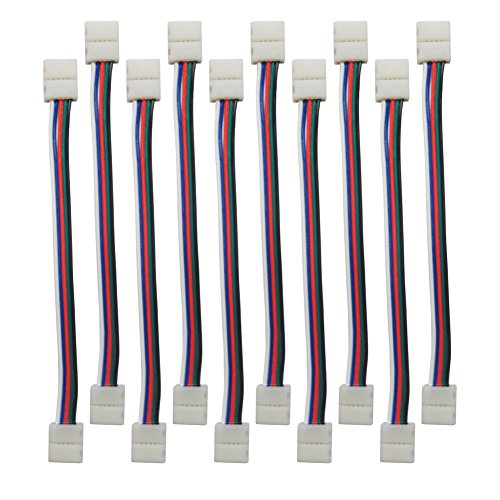

10 pcs LED Strip connector

Feature

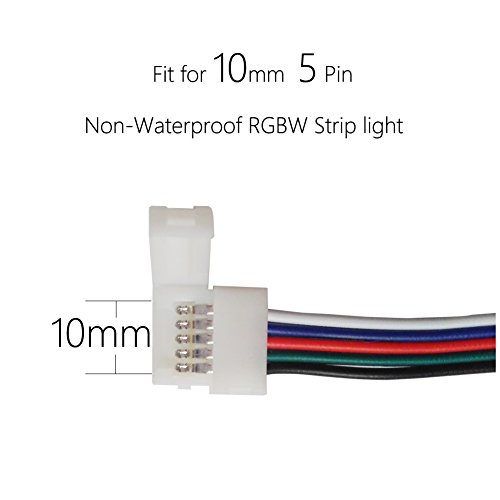

The LED strip connector is for 5 pin 10 mm 5050 RGBW NON-WATERPROOF LED light strip, not for 3528 RGB LED strip and 12mm width led strip lights
It will help you to save time and headache of soldering. Use this connection box to join cut RGBW 5050 LED strip light together without soldering
No need to solder. Just clasp your prepared led strip section into the connector to get connected
Just for 10 MM RGBW led strip, please confirm the WIDTH of the light strip before buy the led strip connector
If used for WATERPROOF RGBW LED strip lights, should peel off silicon on the surface around soldering line area
Brand : Alightings
Item model num : AC-SR10BXB-5
MPN(PartNumber) : AC-SR10BXB-5
EAN : 0760655189382
Product Dimensions(LxWxH) : 17x2x1cm ; 5 g
Package Dimensions(LxWxH) : 19x15x2cm ; 5 g
