Product Description

Technical data:
Rated voltage: DC24V
No-load speed: 17r/min
Rated torque: 50kg.cm
Rated Current: 0.25A
Reduction ratio:1/290
Protection class: IP54
Low noise: db<45 (A)
Certification: CE

Feature

Rated Voltage: 24V DC; No-Load Speed: 17rpm; Rated Torque: 50kg.cm;

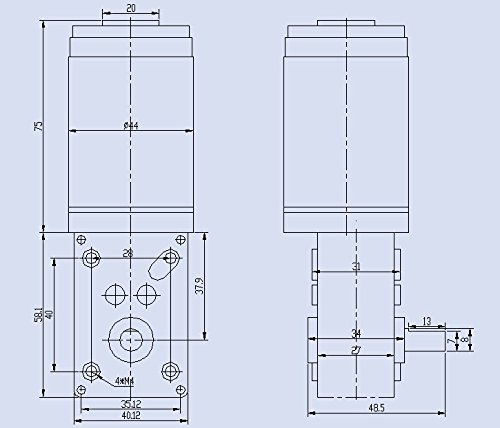

DC Motor Body Dimensions: 44 x 75mm/ 1.73" x 2.95"(D*L); Gear Box Dimensions: 58.1 x 40.1 x 35mm/ 2.28"x1.58"x1.37"(L*W*H);
Out Shaft Dimensions:8 x 15mm/ 0.31" x 0.59"(D*L) with 1x 13mm/ 0.039*0.51(H*L) flat cut off;
Application: bank equipment, safe box, paper feeder, intelligent gas meter, tissue machine, accessory of automobile, ad equipment, analysis instrument, electronic game machine. Used in electrical appliances including remote control curtains, locks, paper shredders, copying machines, and safes Inner.
Main Material : Metal, Electronic component; Direction of rotation：CW/CCW; Certification: CE
Brand : DC Worm Gear Motor
Item model num : TS-40GZ868
MPN(PartNumber) : TS-40GZ868-2417
EAN : 0701056963898
