Item Descriptions:

Product characteristics

● 3-input 1-output HDM switcher compatible with HDMI signal with maximum resolution of 4 K 2 K (4096 × 2160) @ 30 Hz that can switch 3 HDMI devices to a single TV.

.

※ Distribution output function is not available.

● HDMI switch This is an HDMI selector that can easily switch and output the video and audio of one set to one 4K display, 4K projector, etc.

● 4K2K (4096 × 2160) @ 30 Hz resolution is supported and ※ 1, beautifully high-definition HDMI signals can be output.

● It corresponds to full high vision image of 1080p (1920 × 1080).

* It does not correspond to the display of 1920 × 1200 dots.

● High-bandwidth Digital Content Protection (HDCP) Pass-through.

● It is compatible with DTS Digital, Dolby Digital (DTS-HD, Dolby True HD).

● Adopt gold plating on all HDMI terminals.

It is strong against rust and prevents signal deterioration.

● It corresponds to various HDMI equipment such as 4K compatible HDD recorder, 4K projector, PS4 / 3.

※ "PS4 / 3" is a registered trademark of Sony Computer Entertainment Inc.

* 1: Refresh rate at 4K 2 K resolution output is not compatible with 60 Hz drive.

* 2: Depending on the HDMI device, it may be necessary to recognize the display at startup.

In that case, it is necessary to start the HDMI device after switching the port.

● No external power supply required.

specification

Applicable equipments: Video equipment with HDMI output terminal as standard equipment · Consumer gaming machine · Personal computer

Applicable output device: TV, PC, display projector etc. equipped with HDMI input terminal as standard

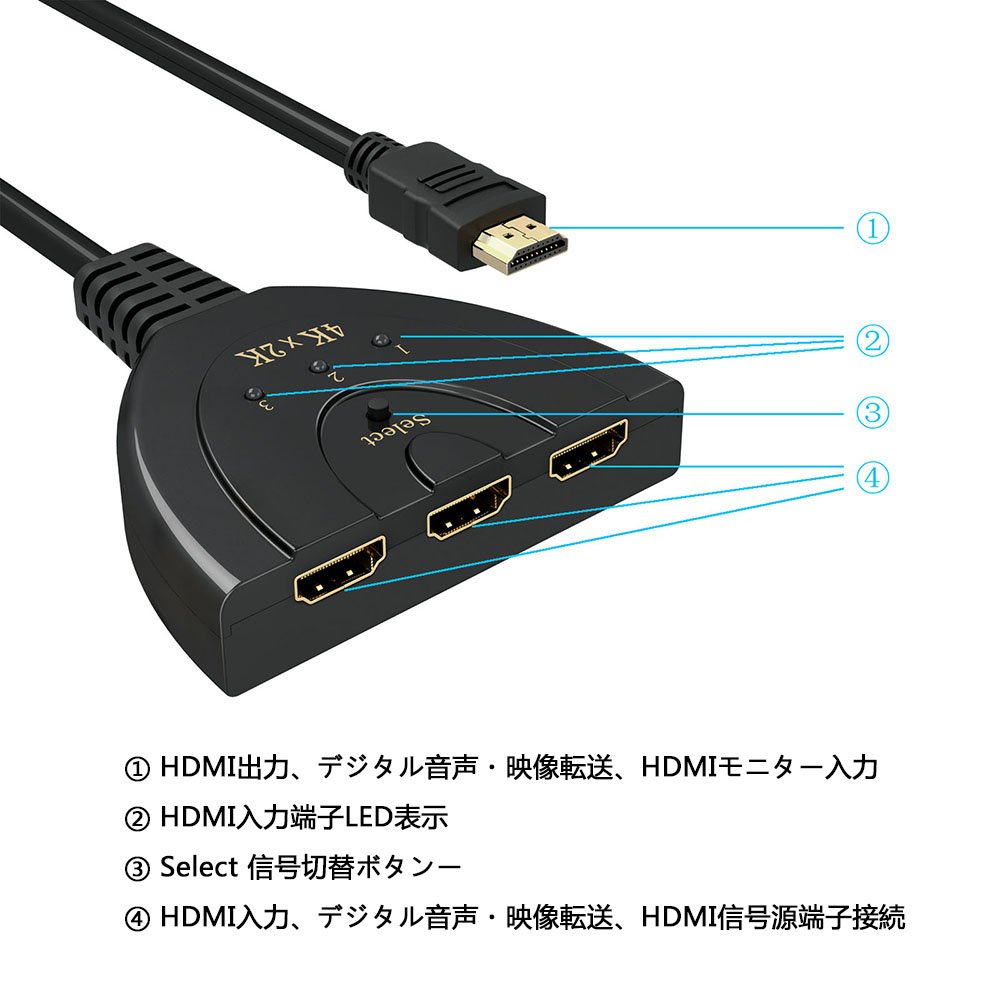

Interface: For input: HDMI type A (19 PIN) female × 3, for output: HDMI type A (19 PIN) female × 1

Switching content: HDMI input: 3, HDMI output: 1

Switching method: Switch main body button

Data rate (maximum): Up to 2.5 Gbps / 250 MHz

HDMI standard: HDMI Ver 1.3b · Full HD 3D compatible · HDCP compatible

Maximum resolution: 4 K 2 K (4096 × 2160) 1080 p (1920 × 1080) * Refresh rate 60 Hz drive at 4 K 2 K resolution output is not supported.

Main compatible resolution: 1080p (1920 × 1080)

Input DDC signal: 5 Vp-p (TTL)

HDCP: Supports HDCP 1.4

Inter-device control (CEC): compliant * It does not guarantee the operation on all devices.

Power consumption: 5 W

Operating temperature · humidity: Temperature 0 ~ 70 ℃ Humidity 10% - 85% or less (without condensation)

Storage temperature · Humidity: Temperature -10 ~ 80 ℃ Humidity 90% or less (without condensation)

Material: ABS resin

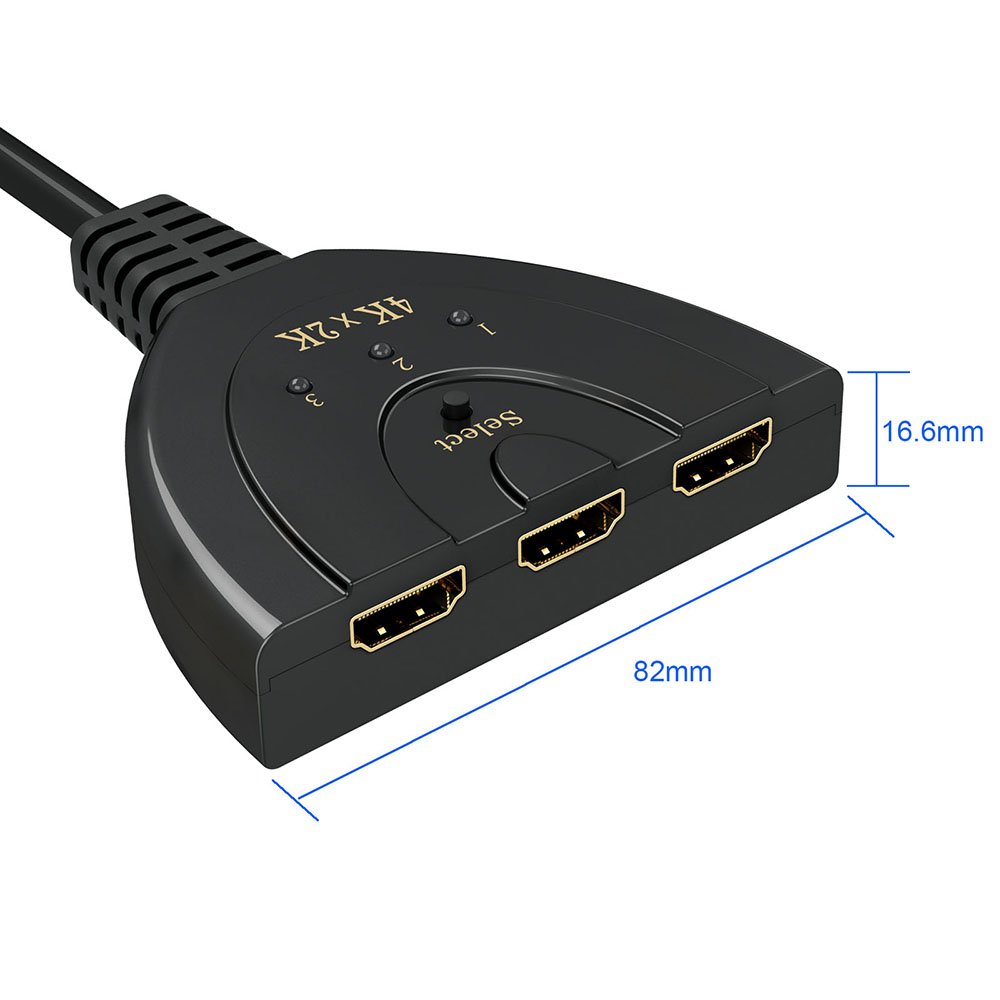

Size: W61 × D82 × H15 mm (main unit)

Weight: 109 g

Accessory: Switch body 1 unit.Operation manual 1 copy

※ It may take a while for the video / audio to switch after pressing the toggle button.

※ HDMI cable connecting output equipment and this product is not included.

Please prepare separately.

* Some devices may cause symptoms such as not outputting correct images and sounds through this distributor.

※ PS4 production timing etc. · In some cases the output may be unstable or the image may not be displayed due to power shortage due to model.

Please note.

※ Please understand that the product image and actual color of publication may be slightly different depending on indoor, outdoor shooting situation, monitor display etc.

Features:

• Please enter model number Confirm this is compatible:

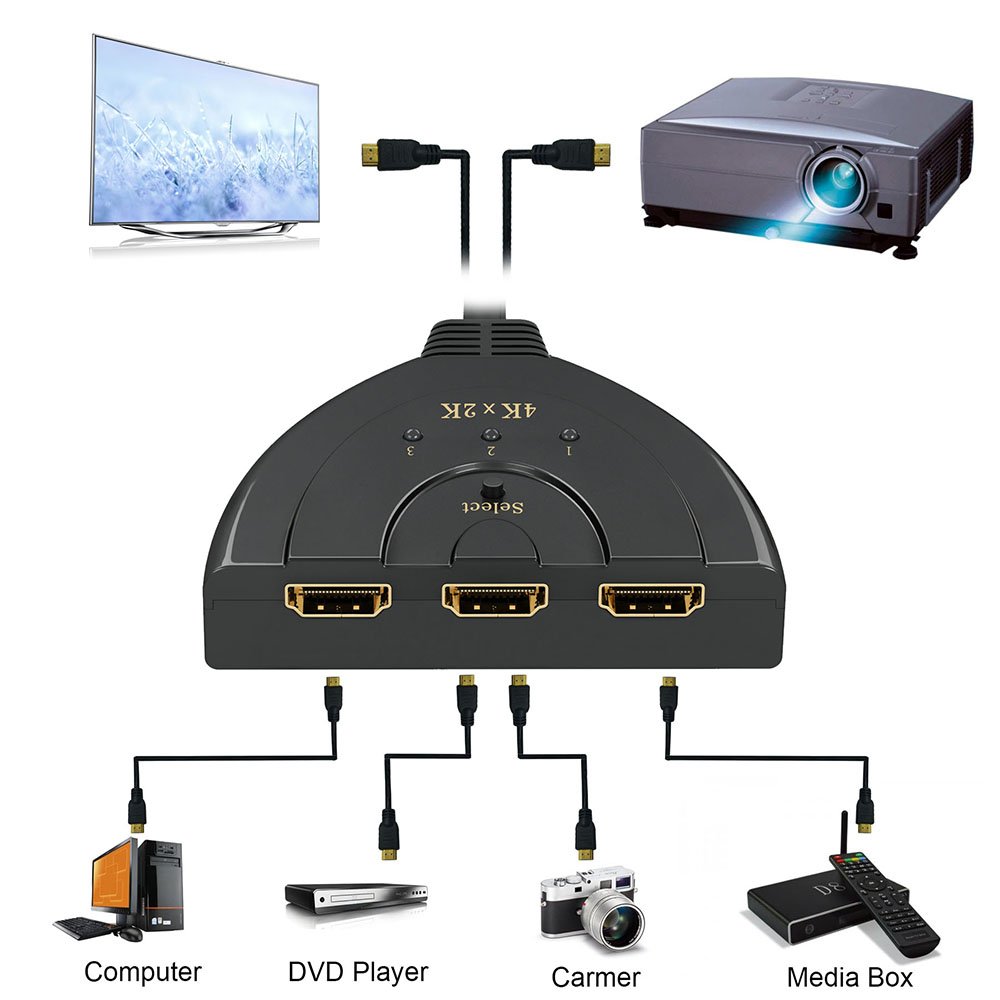

• With 3 port HDMI switcher: HDMI 3 input 1 output, supports PS3, PS4, Xbox, Apple TV, PS3, PS4, TV Box, ROKU 4, Blu-Ray / DVD Player etc
• Since you can switch with only one switch, you can see at a glance which port you are using.
• Hold high resolution video - Clear HDTV with beautiful, 1080p maximum resolution.
• There is no need to worry about occupying extra space with compact size.
• It is easy to store behind a TV or monitor.
• It is an HDMI switcher indispensable to the scene such as environment using HDMI display, even corporate conference, educational site, shop front advertisement and advertisement.

Product information:

Shipping Weight: 99 g

Package Dimensions: 3.00 x 15.80 x 26.49 cm
