Item Descriptions:

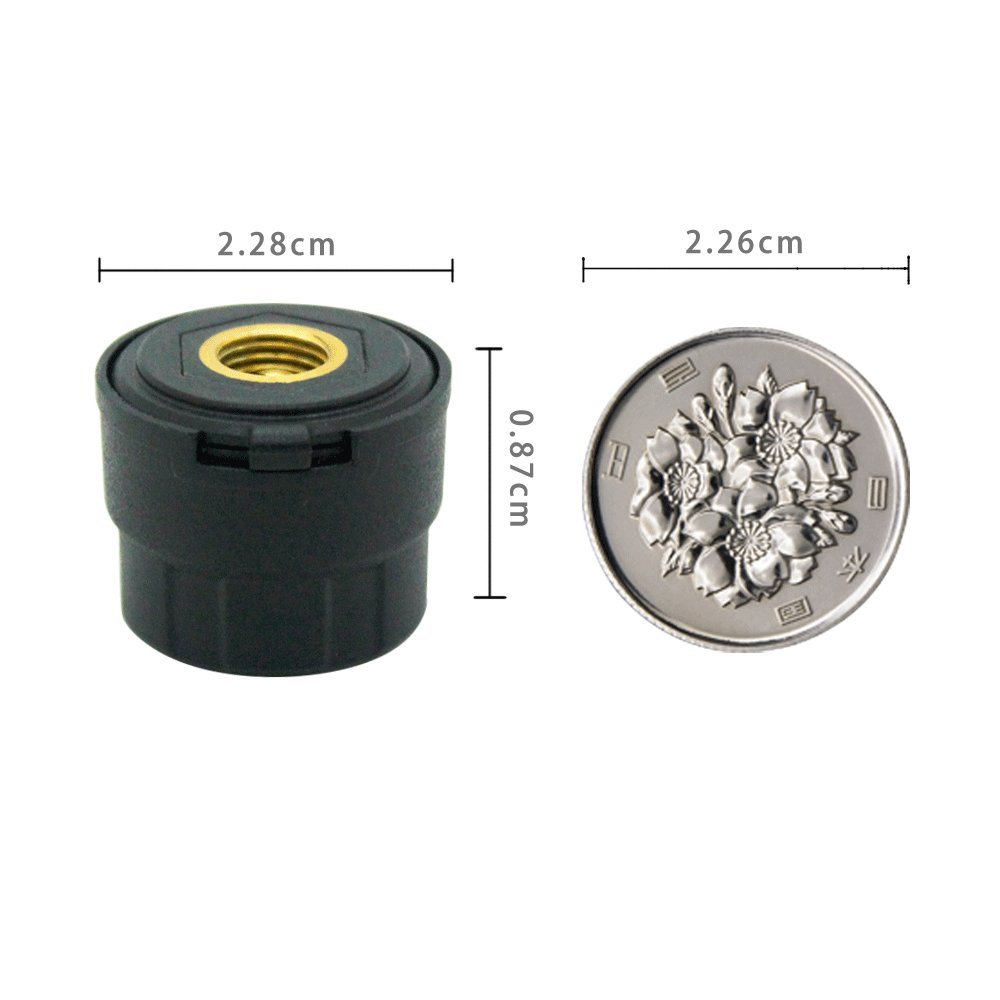

size:

Outside

5 alarm functions

Smart Bluetooth tire pressure monitoring system TPMS Sumahoapuri monitoring external sensor included.

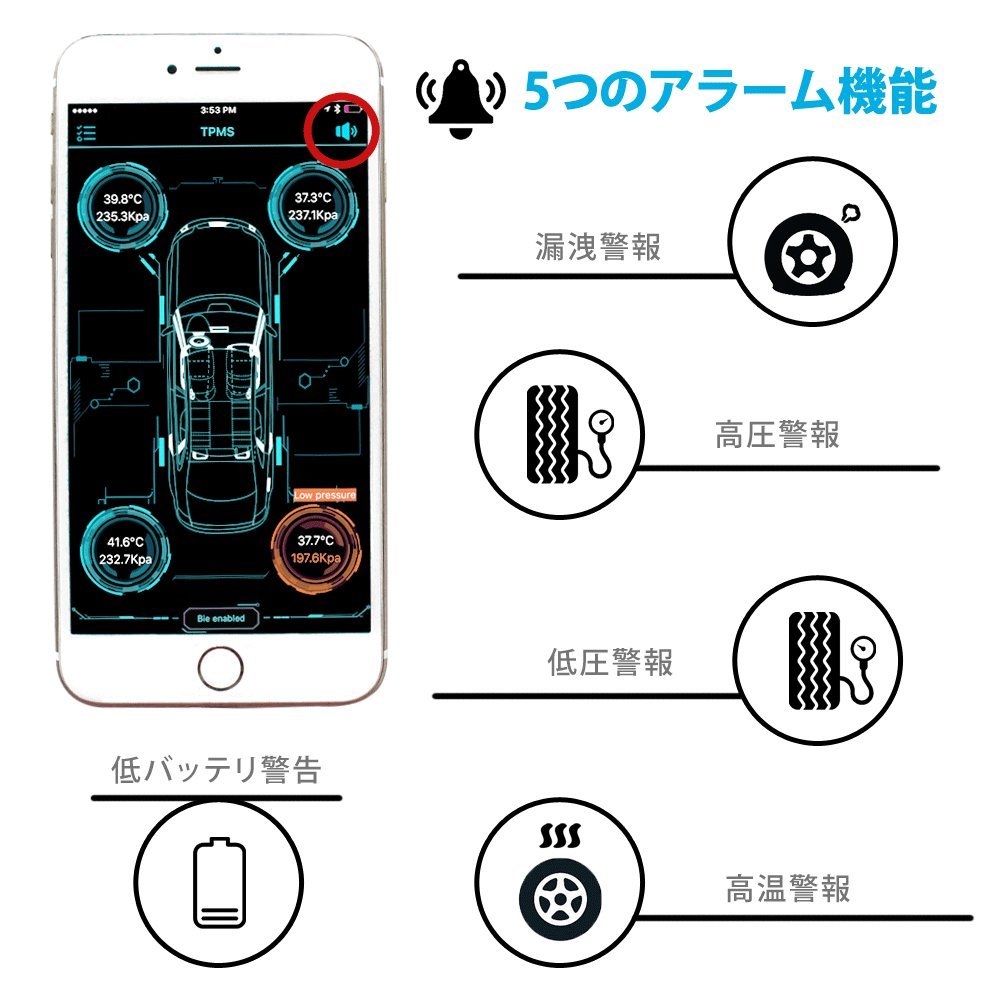

5 alarm functions:

1. Leakage alarm

2. High pressure alarm

3. Low pressure alarm

4. High temperature alarm

5. Low battery warning

Application model:

Truck / passenger car / motorcycle / SUV / freight car etc.

Product Specifications:

Bluetooth transmission power: 0 dbm MA

Humidity: 95% max

Battery capacity: 140 ma (CR 1632)

Weight: Approx. 8 g ± 1 g

Operating voltage: 3 V

Working current: 100uA

Pressure range: 100 - 1300 kpa

Temperature range: -30 ° C to + 80 ° C

Bluetooth operating frequency: 2.4 ghz

Display: Application

Corresponding time: ≤ 5s

Waterproof standard: IP 67

Battery life: about 3-5 years

Pressure measurement accuracy: ± 10 kpa

Temperature measurement accuracy: ± 3 ° C

Support Andriod & iOS; (using APP)

Application usage status

1. Open the application and turn on Bluetooth.

The main interface is displayed.

2. Click "Bind new sensor" to pair sensor.

3. Return to the main interface and read the tire data.

When the situation of the tire is abnormal, the corresponding data becomes an alarm.

4. Next, click "System setting" and set tire warning data

function:

Leak alarm

Prevent tire flat

Fuel saving

Tire unbalance prevention

Tire wear reduction · Maintenance

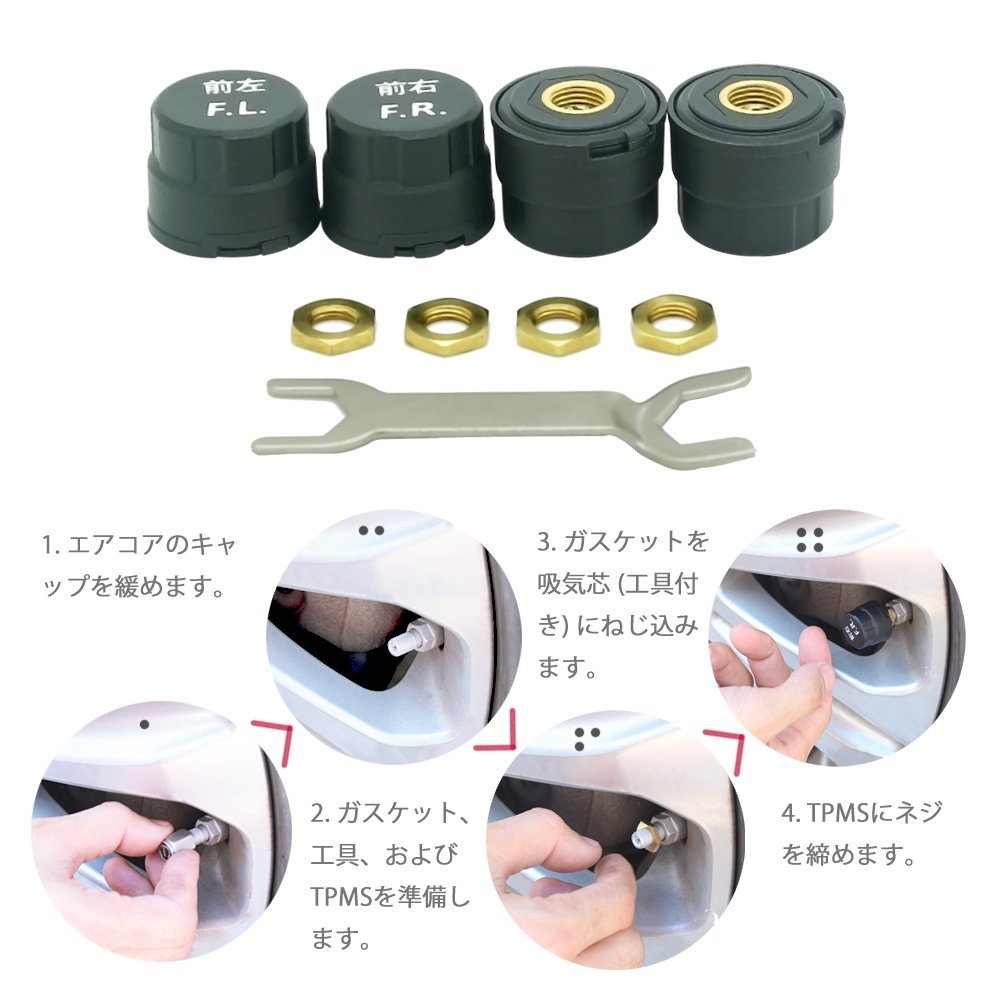

Step:

Step:

1. Loosen the air core cap.

2. Prepare gaskets, tools, and TPMS.

3. Screw the gasket into the intake core (with tool).

4. Tighten the screw to the TPMS.

Excellent performance

waterproof

Dust proof

Anti-freeze

anti-theft

Prevent pop

High temperature prevention

The latest data is updated every 3 minutes

There is no need to start the car, it will be detected within 5 meters

Features:

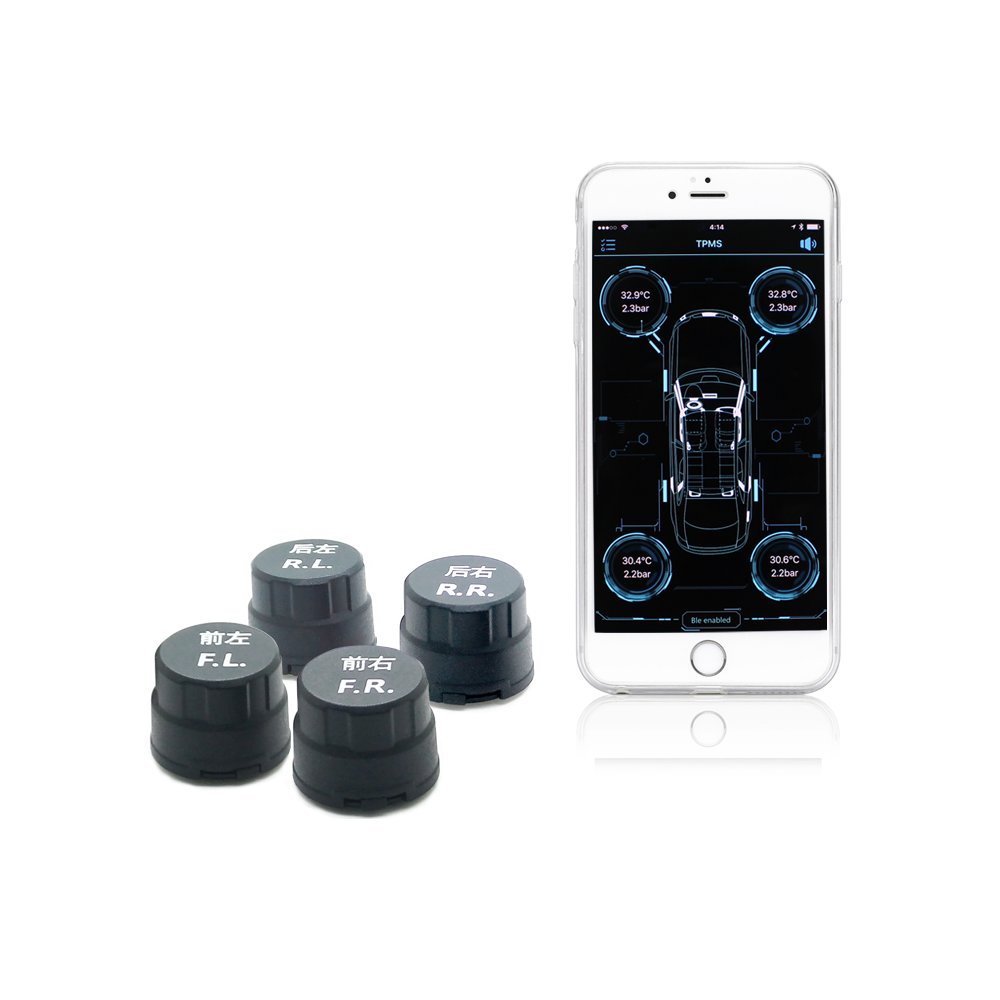

• * Bluetooth TPMS * - This product is an advanced tire pressure monitoring system (TPMS) using Bluetooth that can work directly with iOS, Android device.
• The intelligent device that works simultaneously with the smartphone, the driver can check the tire pressure and temperature at the same time with the smartphone.
• * Application main interface * - Non-stop monitor & reliable alarm system, continuously monitoring tire pressure and temperature.
• When the air pressure value / temperature value initialized by the application is exceeded, we inform the driver with a warning alarm.
• * Mini Compact Design * - The kit includes four external plug-in sensors and one receiver, and it is made from durable lightweight material, so it affects the operation of the tire on the weight
• It does not give.
• * Easy installation * - Precise statistical information driver allows you to easily install the pressure sensor of the external tire and install the monitoring system within 3 minutes.
• * Waterproof and anti-theft design * - Equipment with anti-theft prevention, ip67 waterproof grade, external sensor for any vehicle type

Product information:

Shipping Weight: 158 g

Package Dimensions: 3.20 x 10.59 x 16.99 cm
