Item Descriptions:

color:

1. DVR-HC7310A normal SD card not available

All-in-one security camera that can be installed without construction

It is a wireless type security camera with all-in-one packaged all of the security camera, recording device, and playback display screen which can shoot clearly even in a dark room with the night vision (night vision) function.

The motion sensor detects movement and automatic recording

High sensitivity human presence sensor (PIR) constantly monitors the range of up, down, left, right, up, down, up to 15 meters in front of the camera.

Detects body temperature and heat source movement such as people and animals and automatically records it.

※ The human presence sensor (PIR) does not react through glass.

Please be careful.

High quality infrared LED that supports clear night vision

It incorporates 40 high-quality infrared LEDs that light up automatically by detecting ambient brightness.

The infrared LED that can irradiate up to 20 m ahead enables clear infrared shooting even in places with no light at night.

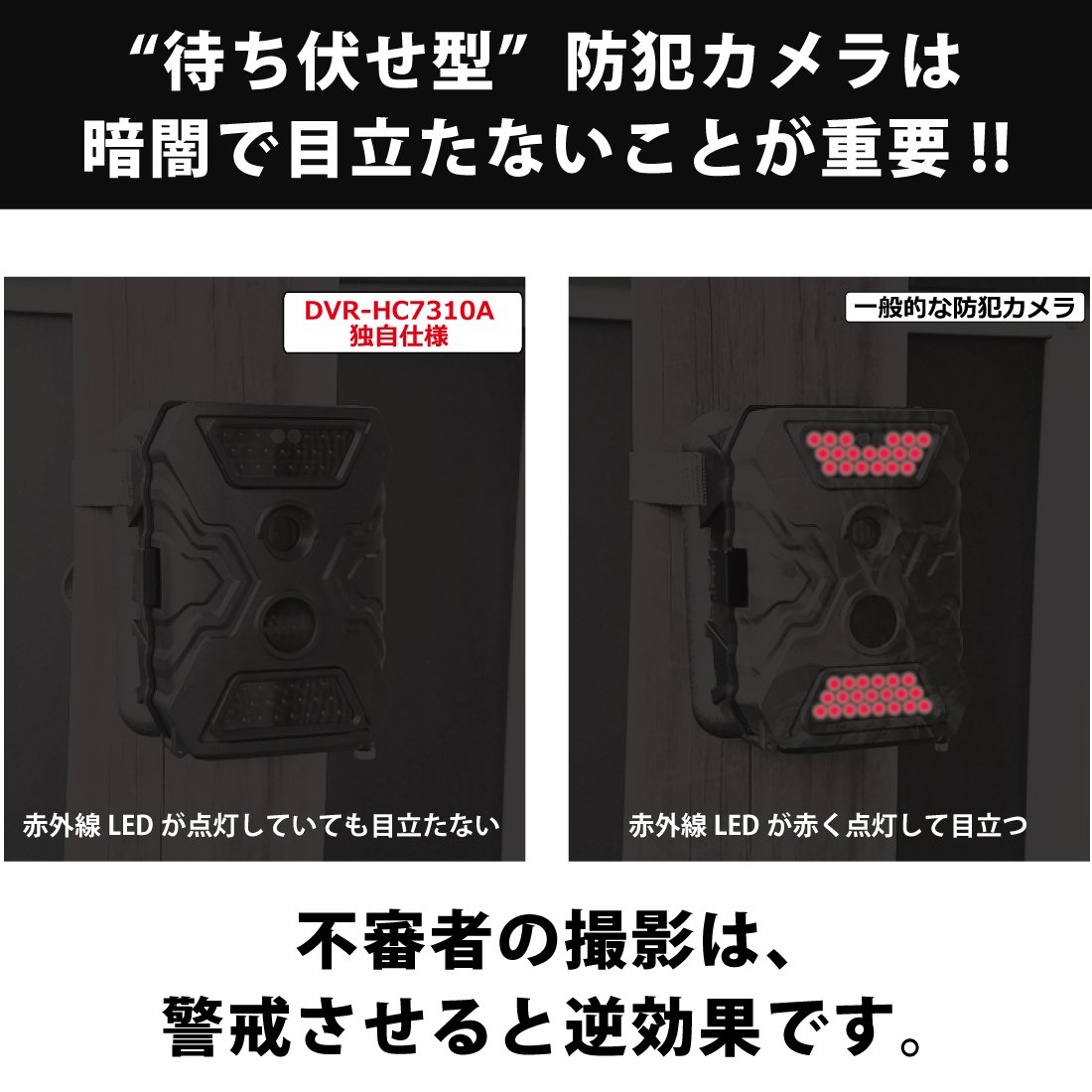

Infrared LED "

It does not shine red

"Invisible light type adopted.

Because it is inconspicuous even in the dark, you can shoot without noticing the camera installation.

Waterproof / dustproof design allows installation indoors and outdoors

Since it is a waterproof / dustproof design of JIS protection grade IP54, it corresponds to installation in harsh environments such as heavy rain and dust such as typhoons.

Standby operation with dry cell for up to 18 months

With a total of eight AA batteries set in the main unit and battery pack, and original power saving design that minimizes power consumption during standby, standby for up to 18 months is possible.

※ The longest standby time is a standard.

It varies greatly depending on your environment.

In addition, it is also possible to continuously monitor 24 hours 365 days by connecting an optional AC adapter.

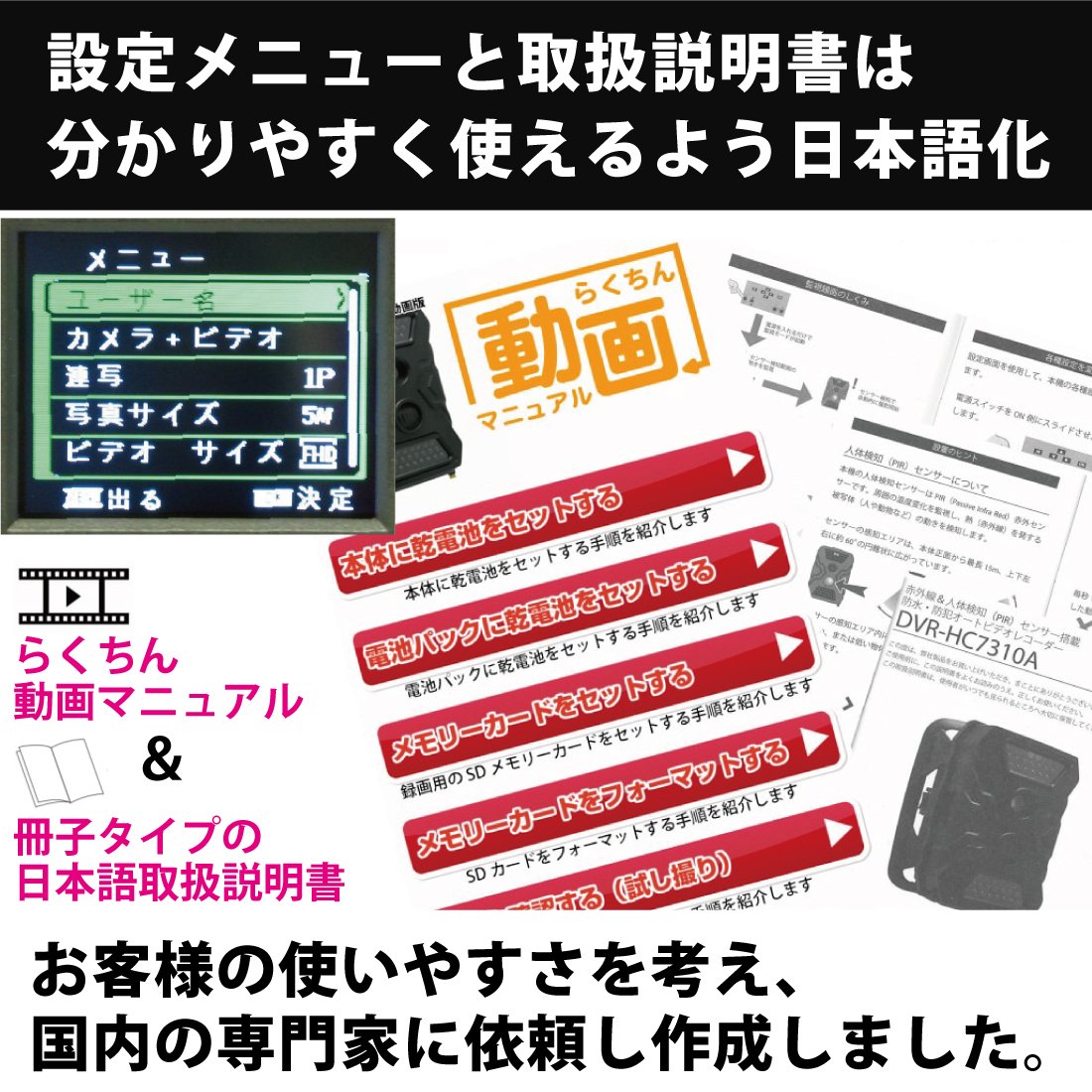

Rakuchin video manual

We will explain carefully in the movie until preparation, setting and installation so that beginners can easily use it.

Easy-to-understand Japanese instruction manual included

Every one of the setting items was explained in detail

Booklet type Japanese instruction manual attached

Since all the setting screens are also displayed in Japanese, there is no need to get confused by the setting.

Various installation is possible depending on ingenuity

You can fix it to pillars and trees easily using the attached fixing strap.

Since it is equipped with a tripod screw hole (1 / 4-20 UNC), it can be fixed to a commercially available camera tripod etc.

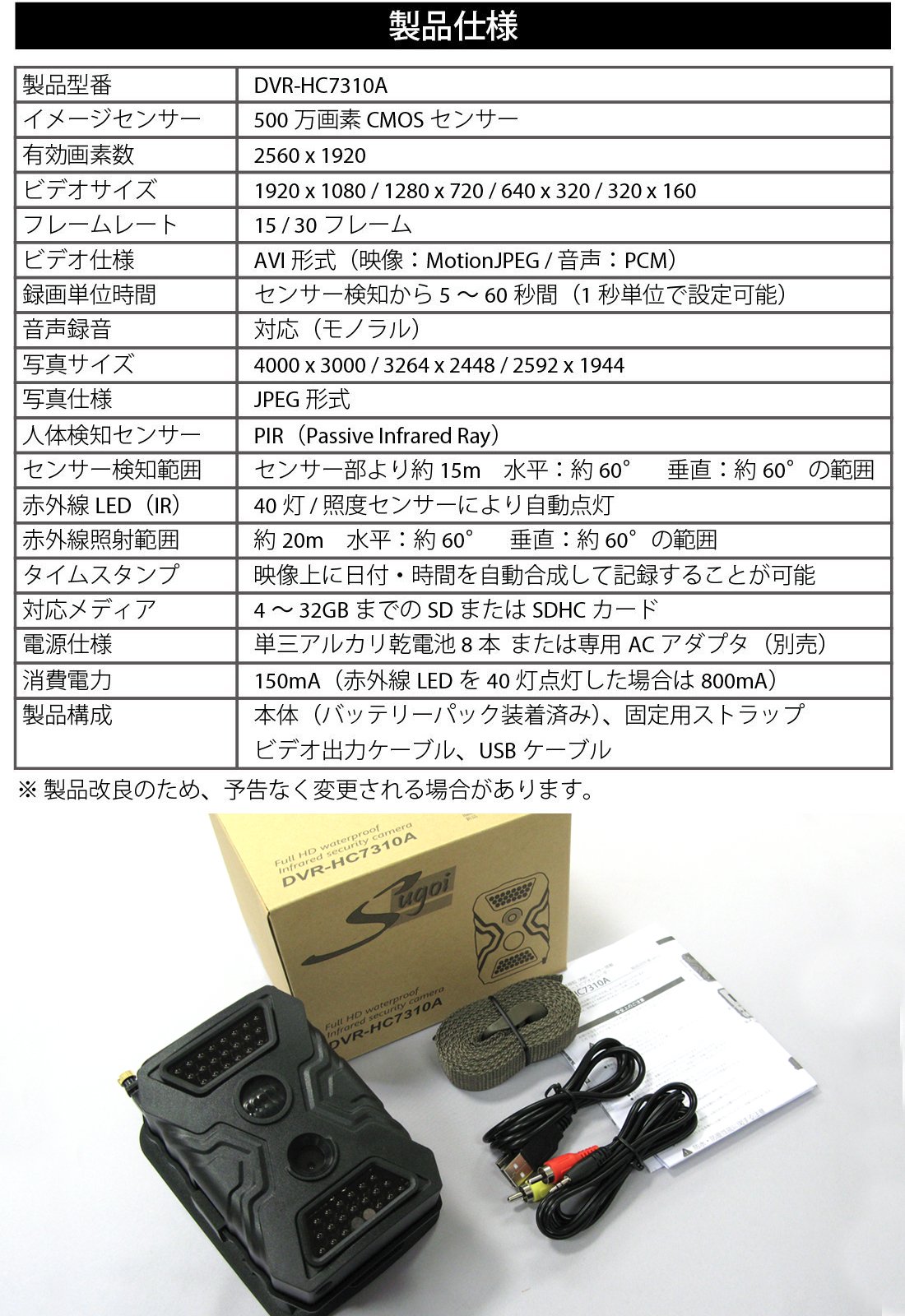

【Product Specifications】

Product model number: DVR-HC7310A

Image sensor: 5 million pixel CMOS sensor

Number of effective pixels: 2560 x 1920

Lens: F-3.0: FOV = 52 degrees Automatic IR cutting mechanism installed

Digital zoom: 2x / 3x / 4x

Video Resolution: Full HD 1080p / 720p / 640x320 / 320x160

Video format: AVI format (Motion JPEG + PCM)

Video recording time: Can be set between 5 and 60 seconds

Still image shooting resolution: 4000 x 3000/3264 x 2448/2592 x 1944

Still image format: JPEG

Support SD / SDHC card: 8GB ~ 32GB

LCD monitor: 2 "TFT color monitor

Night mode: Corresponding (shooting in the dark by infrared LED)

Infrared irradiation range: maximum 20 m Infrared LED: 40 lights (19 upper part + 21 lower part)

PIR maximum detection range: 12 m to 15 m

PIR detection angle: 60 degrees

Time lapse function: Correspondence (interval shooting)

Power supply: 4 or 8 AA alkaline batteries * 8 recommended

Standby time: Up to 18 months * When using 8 dry cells * It depends on installation environment / shooting situation "

Waterproof specification: IP54

External dimensions: width 9.8 cm x height 13.5 cm x thickness 7.8 cm * When installing the battery pack, excluding the protruding part "

Weight: Approximately 308 g ※ excluding batteries

Warranty period: 6 months from date of purchase

※ The shooting of the security camera varies depending on the installation environment.

※ All of the numerical values ​​of this machine are notation with maximum value.

* Please be aware that the function may fall below the numerical value depending on the installation environment.

Features:

• Please enter model number Confirm this is compatible:
• Detects the movement of infrared rays emitted by people and animals, and automatically shoots movies and still images.
• The data is saved to a SD card (sold separately) with a maximum of 32 GB.
• You can also shoot at night with an infrared LED light invisible to the human eye (automatic switching by illuminance sensor).
• JIS protection grade IP54 waterproof / dustproof specifications can be installed outdoors exposed to rain or dust.
• Standby time of up to 12 months with 8 AA batteries (fluctuates depending on shooting mode and shooting frequency).
• You can use it as a surveillance / security camera easy for wiring and power supply unnecessary, such as countermeasures against mischief in parking lot, countermeasures against birds and beasts in agriculture and livestock industry.
• It can also be used for emergence of insects and growth of plants with the time lapse function.
• It is also ideal for wildlife observation, if you work on railway roads or water fields you can take valuable images and it is ideal for free research on ecological investigation and summer vacation.
• Since all setting screens are also in Japanese, there is nothing to get lost with the settings.
• Booklet type with detailed Japanese instructions

Product information:

Shipping Weight: 539 g

Package Dimensions: 12.09 x 13.11 x 16.51 cm
