Item Descriptions:
color:
black
IR cutting mounted
By adopting an IR cut image sensor, stable high-quality shooting was realized.
Also, because the sensitivity is also high, we will respond well to monitoring under low illumination.
f 3.6 mm lens mounted
The f3.6mm lens is carried.
It is suitable for monitoring from short distance to medium distance than in front of the camera.
Viewing angle 82 °, visible distance: 1 to 5 m (distance in which a person's face can be clearly seen)
Day & Night function (Day & Night function)
You can shoot brightly with color at noon, high sensitivity black and white + infrared at night.
Compact body
It adopts a compact body and is a small design that makes the camera unconscious at installation.
IP66 waterproof standard compliant
With waterproof performance conforming to waterproof standard IP66, it corresponds to installation in a place where rainy wind hangs.
※ The connection terminal part is not waterproofed.

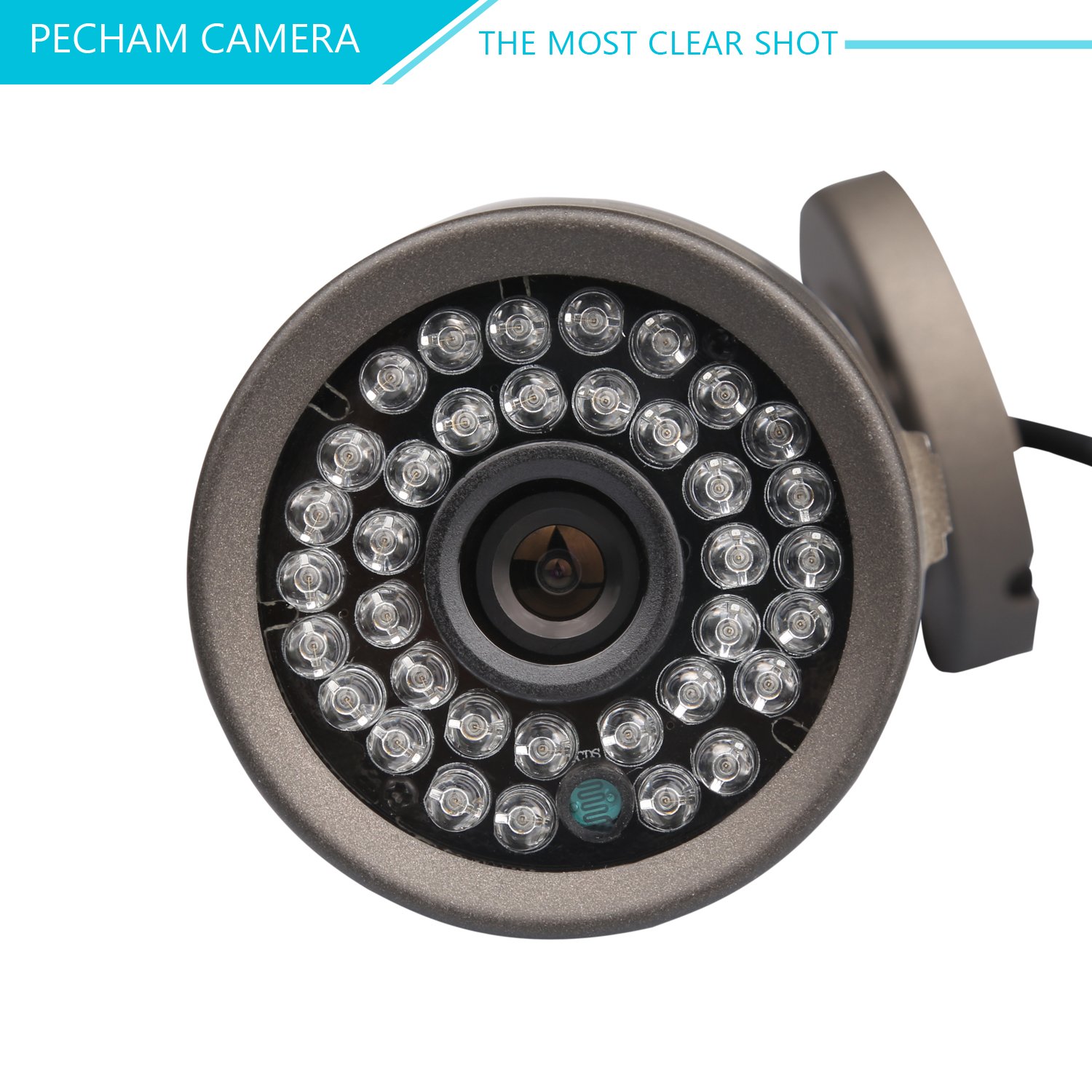

Infrared projector mounted
Infrared emitter equipped with 36 infrared LEDs is carried.
The infrared irradiation distance achieves a maximum of 15 m.
※ The light emitting part of the infrared LED glows glowingly red.

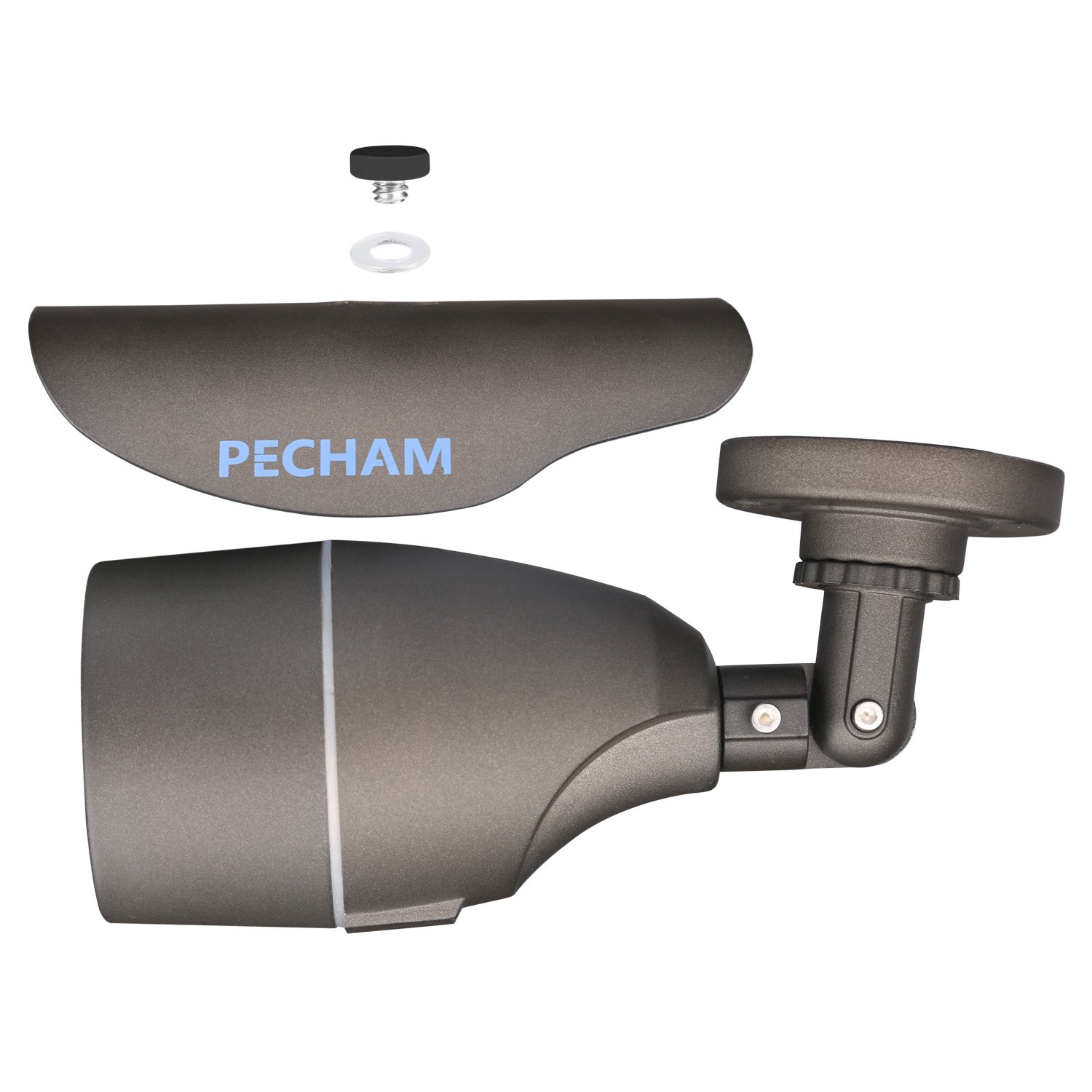

With roof cover
Rain water, roof cover to protect the main body from direct sunlight is attached.
※ Although the cover is removable, there is a risk of deteriorating waterproof performance when removed.
Built-in CMOS sensor
Built-in CMOS sensor, it automatically radiates infrared when it gets dark, and turns infrared off when it gets bright.
By efficiently irradiating infrared rays, it is possible to suppress power consumption and drastically increase the lifetime of infrared rays.

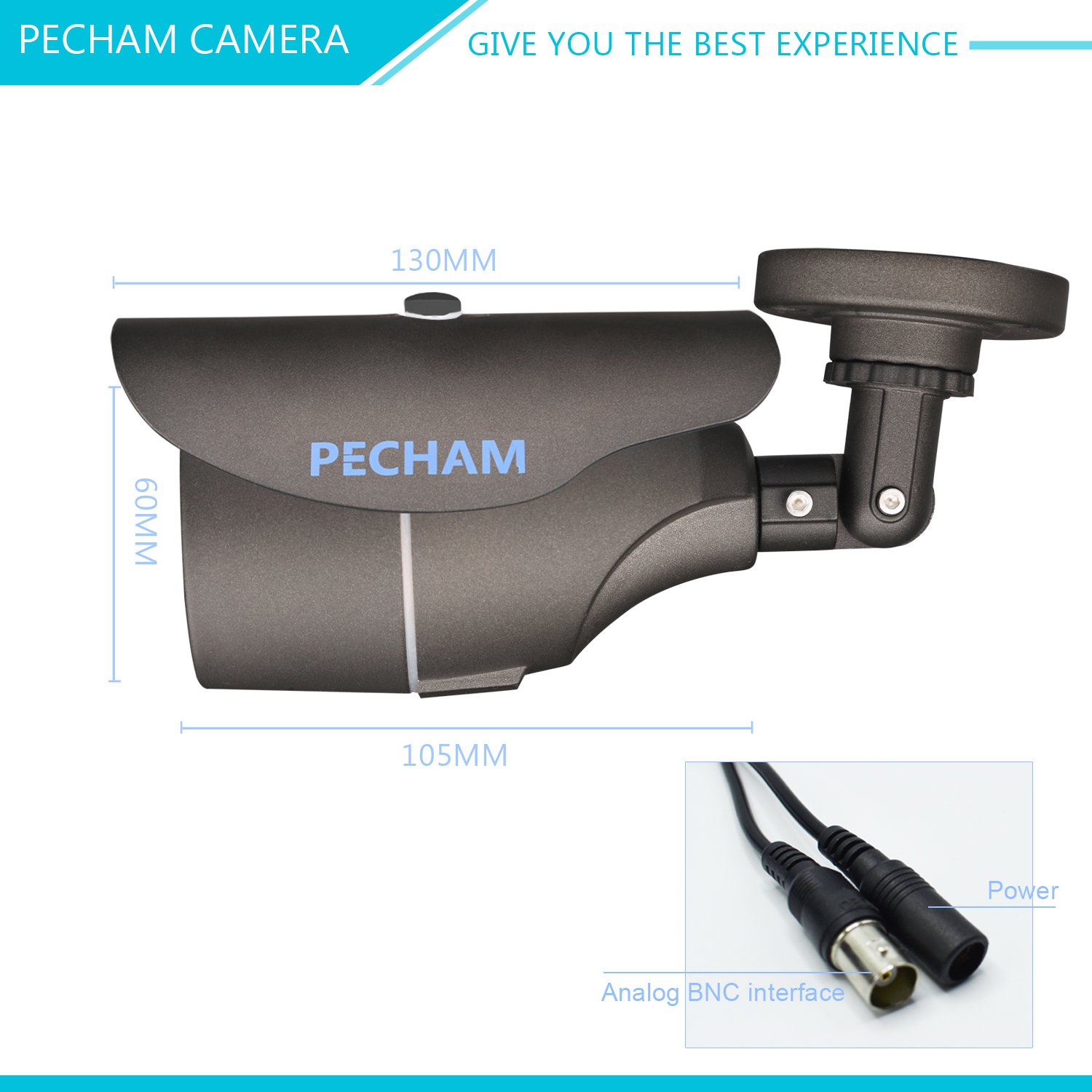

Back of main unit · Connection part
One cable comes out from the back of the main unit.
The cable length is about 36 cm to the terminal part.
At the end, it is divided into video output terminal (BNC) and power input terminal.
Since the connector part is not waterproofed, please be careful not to get wet.
Features:
- Analog camera, Video system: IR Cut Hi-Vision compatible, High quality HD 960H, Horizontal resolution 1200 TVL
- It is equipped with 36 infrared LEDs, the projection distance is approx. 15 m, it corresponds to nighttime surveillance with infrared function, automatic day / night mode switching, built-in light / dark sensor built-in, the infrared light will turn on automatically.
- F-3.6mm wide angle lens mounted, wide field of view wide-angle camera, viewing angle 82 °, visible distance: 1 to 5 m (distance with clearly visible human face) Can be used with coaxial cable.
- Waterproof / dustproof specification of IP66 with waterproof design, metal cover.

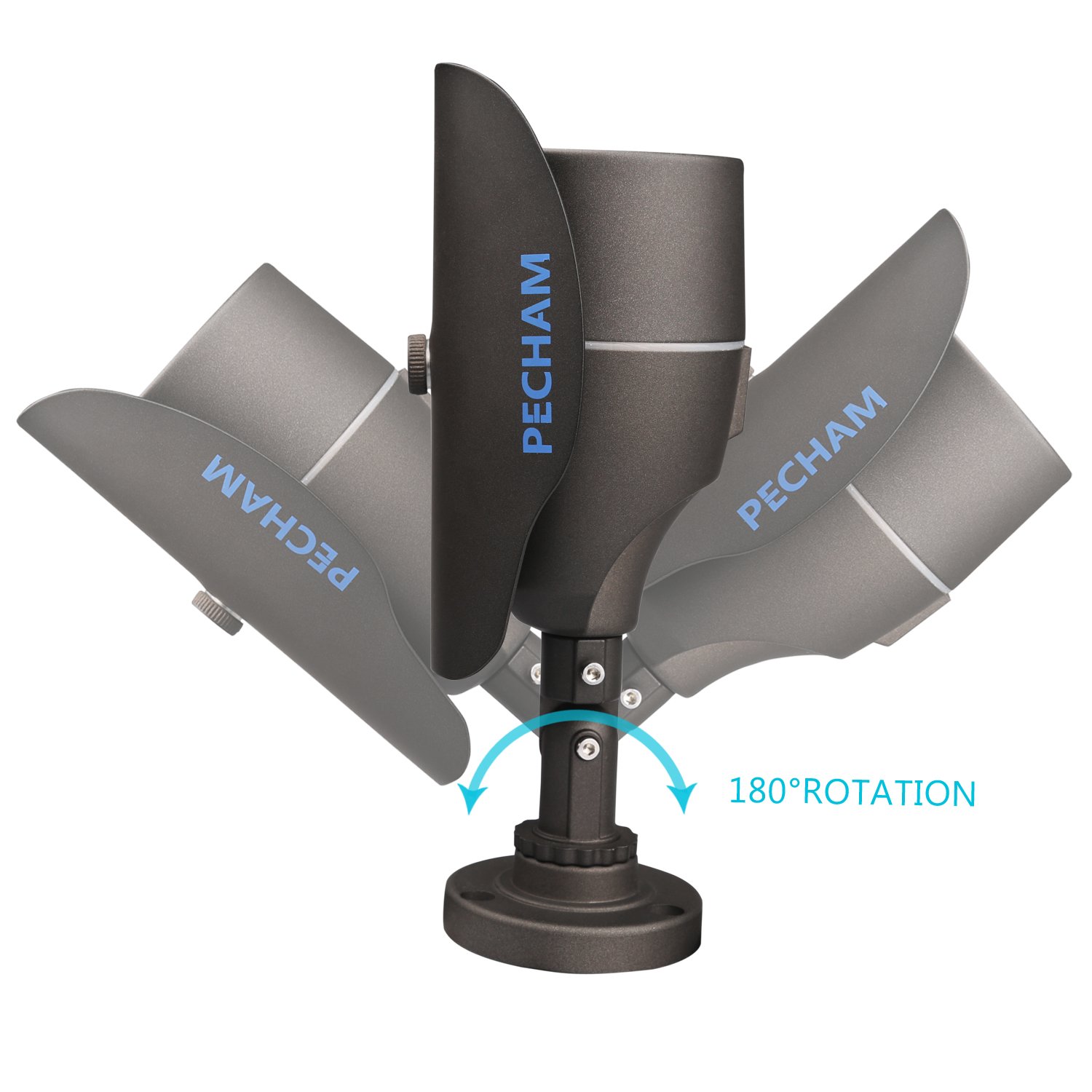

- Pedestal mountable on both wall and ceiling!

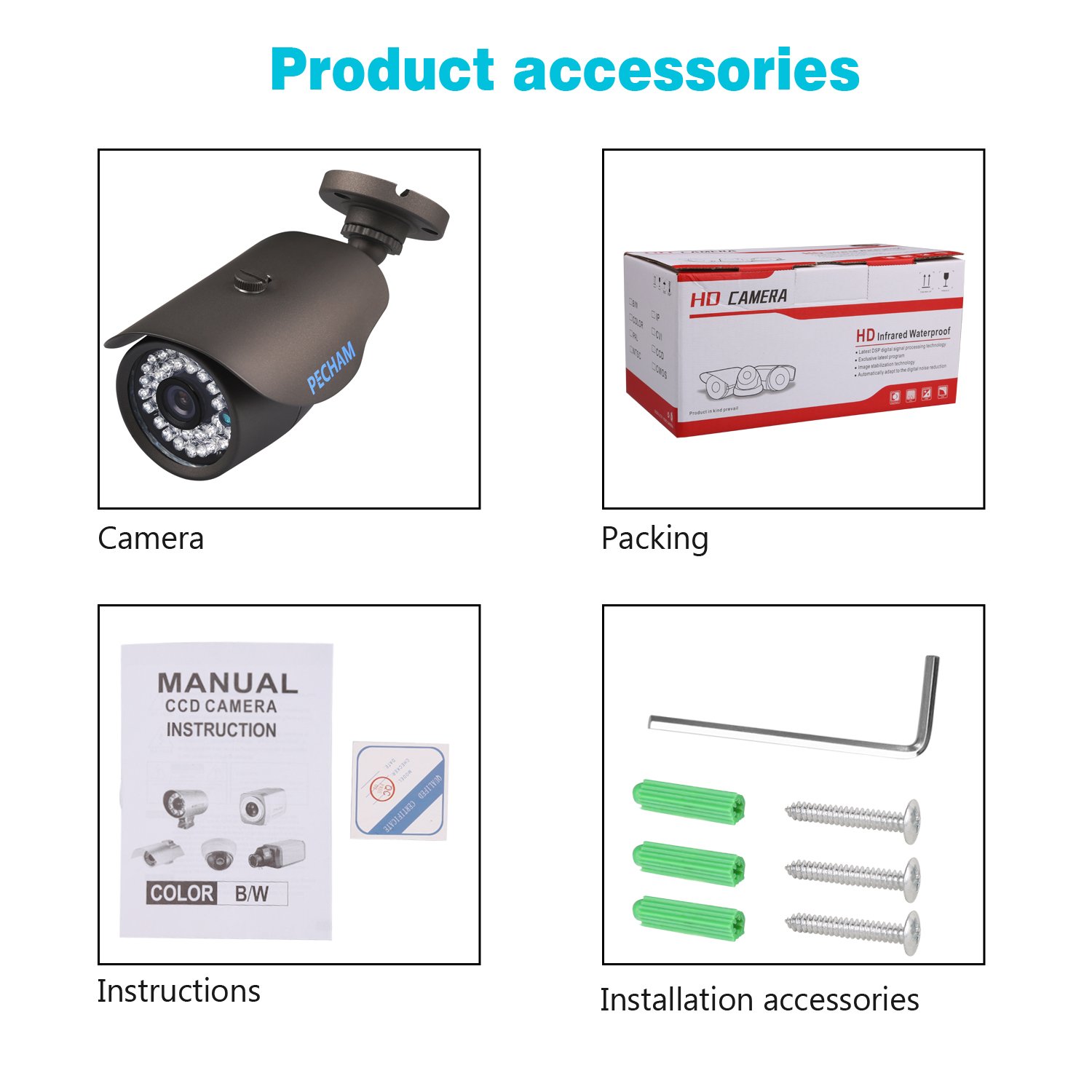

- Product Description: Camera body x1, screw x3, manual x1 1 year limited warranty, please order with confidence.
Product information:
Shipping Weight: 399 g
Package Dimensions: 9.80 x 10.59 x 19.89 cm
