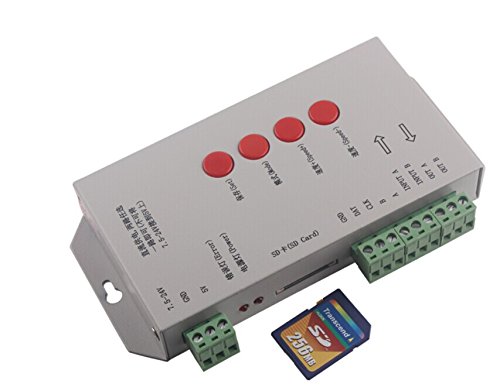

Product Description

NOTE：
1. When T-1000S controller less than 512 pixels the frame rate can reach 30fps. When T-1000S control more than 512 pixels the frame rate will slow down automatically.
2. T-1000S must use the new software LedEdit 2012.

Multiple T-1000S controllers can be cascaded together and work synchronous

T-1000S one TTL(SPI) signal and one RS485 signal port output，can control 2048 pixels

When the chip for LED is single line chip just with data, then just need to be connected with DAT and GND of the controller. If the chip for LED is double line chip with DAT and CLK, then need to be connected with DAT, CLK, and GND of the controller

If you need to use RS485 signal you need to connect controller A with LED A (DMX+), controller B with LED B(DMX-)

When you need to built a new project the controller type for the software is：T-1000-IC model

Special parameters:

Memory card：

type：SD card（suggest using high-speed SD card）

Capacity：128MB-2GB

Store file：*.led

Physical parameters：

Working temperature ：-30℃-85℃

Working voltage：DC5V / DC7.5-24V

Working power：1W

Size：16cm x 9cm x 2cm

Weight：253g

Signal port：3pin connect port

Feature

32-256 Gray，Support software Gamma correction
Off-line(SD Card) control, play back content stored in the SD card
Single-port output，can support 2048 lights
Support the rules and special-shaped handle
T-1000S store a maximum of 16 programs，copy multiple files to the SD card in order after formatting the SD card as "FAT" format
Brand : zowaysoon
Item model num : DMX512
MPN(PartNumber) : T-1000S
EAN : 0519162154723
Product Dimensions(LxWxH) : 2x1x1cm ; 340 g
