RGB Jumper Cap Header Pin Shunt Short Circuit Connector Open Top 2.54mm, for PCB PC DVD HDD Motherboard Shorting.









Product Description

INTRODUCTION

These are two pin jumpers (also called shunts) that will create an electrical connection for the 2.54 mm (0.1 inch) male Pin headers. Commonly used to modify settings on a board or device.

6 Layer Superimposed Parts Box for securely holding electronic components, screws, wires and any small parts in individual compartments. Unique design, six containers build as one cylinder, six-in-one is more closed and easier to distinguish the tiny parts. It's a great tool to keep your desk or workshop organized, so that you can find your components easily.

SPECIFICATION

Colorful Jumper CAP

- Rated Current: 3.0AMP
- Contact Resistance: 20mΩ Max
- Withstand Voltage: 1000V AC/DC
- Insulation Resistance: 1000MΩ Min
- Operotion Temperoture: -40 Degree Celsius to 105 Degree Celsius
- Contact Moteriol: Phosphor Bronze
- Coneact Plating: Au Over Ni
- Insulator Material: Polyester(UL94V-0)
- Standard: PBT
- Max.Processing Temp: 180 Degree Celsius for 30 - 60 Seconds(200 Degree Celsius for 10 Seconds)

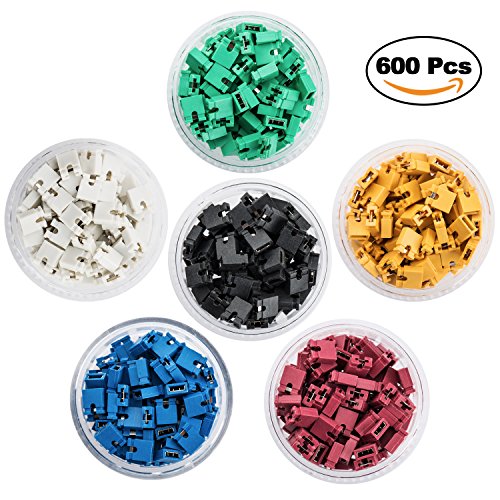

- QTY: 600

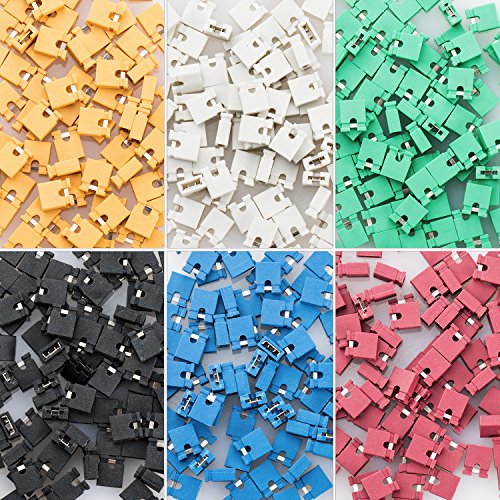

- Color: Black, Yellow, Blue, Green, White, and Red

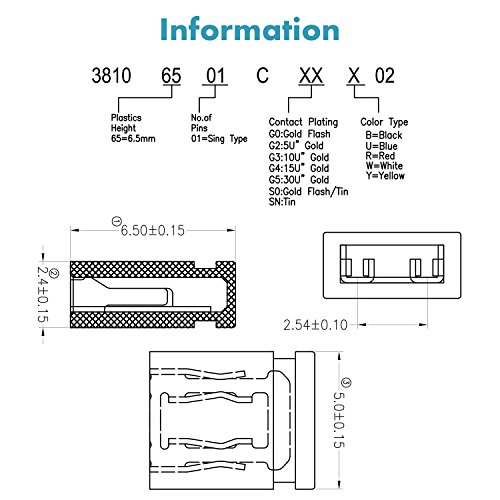

- Size: 5 mm * 6 mm * 2.4 mm (0.2 inch * 0.24 inch * 0.09 inch)

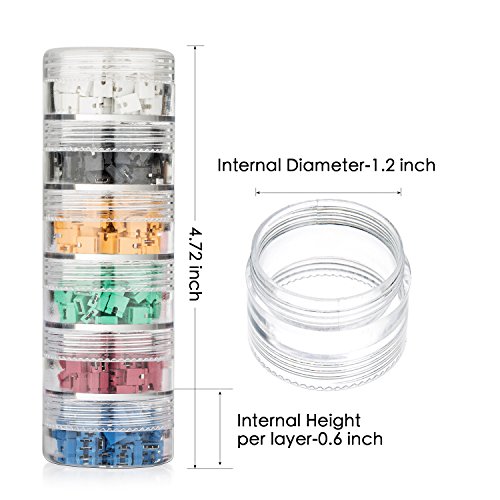

6 Layer Superimposed Parts Box

- Material: PS Plastic
- Overall Length: 120mm (4.7 inch)
- Overall Width: 38mm (1.5 inch)
- Internal Diameter: 32mm (1.2 inch)
- Inner Height / Per layer: 17mm (0.6 inch)
- Style: Connected
- Color: Translucent

SHIPMENT

100 * Red Jumper (Plus/Minus 2)
100 * Blue Jumper (Plus/Minus 2)
100 * Black Jumper (Plus/Minus 2)
100 * White Jumper (Plus/Minus 2)
100 * Green Jumper (Plus/Minus 2)
100 * Yellow Jumper (Plus/Minus 2)

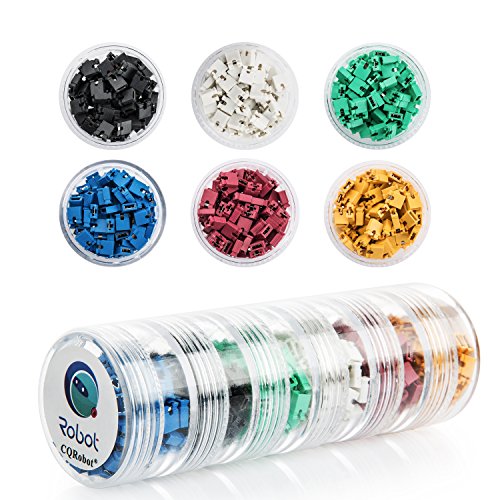

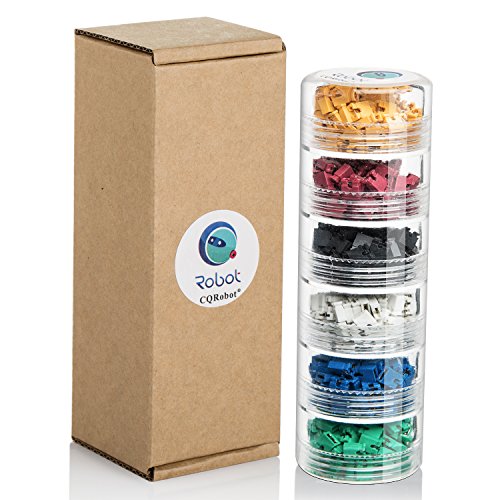

1 * 6 Layer Superimposed Parts Box


Feature

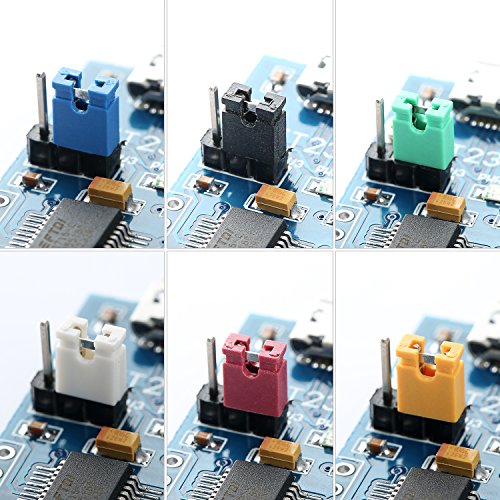

These are two pin jumpers (also called shunts) that will create an electrical connection for the 2.54mm(0.1") male pin headers. Commonly used to modify settings on a board or device.
Hop hat, is turning two male pin connector, a feature similar to the switch circuit board or circuit. Plug-hop cap some settings change the circuit board is typically used.
Application: Jumpering Pins Together, Computer, Electronic Communication, Instrument, Meter, Industrial Control, Electronic Toys.
6 Layer Superimposed Parts Box for securely holding electronic components, screws, wires and any small parts in individual compartments.
Unique design, six containers build as one cylinder, six-in-one is more closed and easier to distinguish the tiny parts.
Brand : CQRobot
Item model num : 1
MPN(PartNumber) : 1
Package Dimensions(LxWxH) : 12x5x5cm ; 82 g
