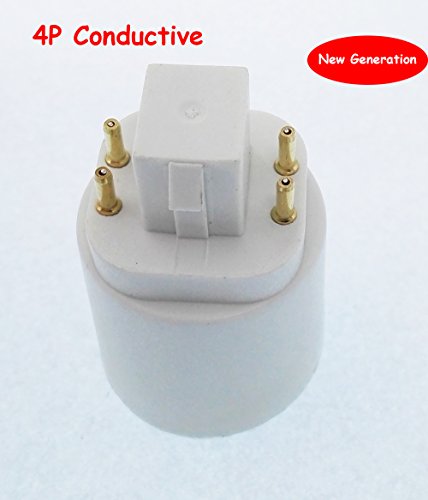

6pcs E-Simpo 4P Gx24q to E26/E27 Lamp Base Adapter,G24q to Medium Edison Socket Converter,Need Bypass Ballast,Short Version 15.5mm, 4P Conductive,Plug E26 Bulb into PL G24Q/GX24Q socket.
[Product Information]
- This is 4P, NOT FOR 2P;Need BYPASS OR REMOVE the ballast, otherwise, it doesn't light on. G24q Series (Female Socket Fixture) to E26 (Male Bulb Base) Adapter - 15.5mm Short Version, Q series has a shorter tip than D series and is more common in the US.

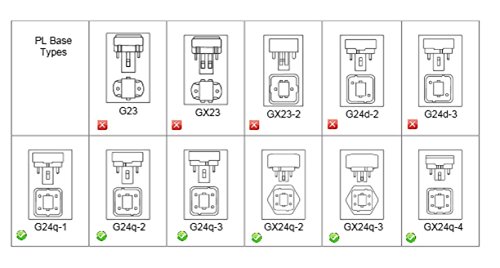

- Suit for G24Q-1, G24Q-2.G24Q-3, GX24q-1,GX24q-2,GX24q-3 socket; If your socket is 2P, buy: https://www.amazon.com/dp/B017T1UJEE Physically change the contact.

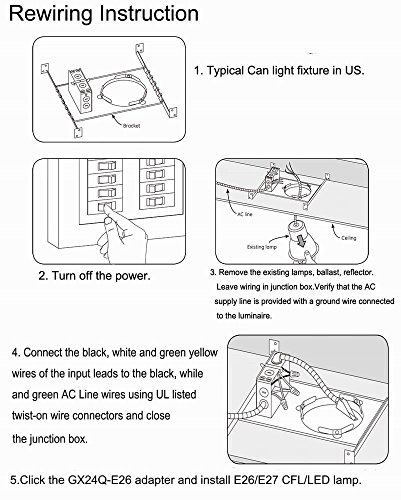

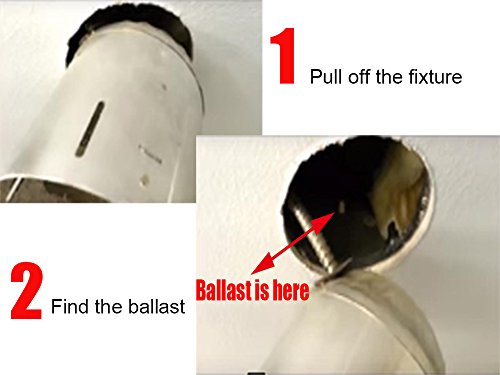

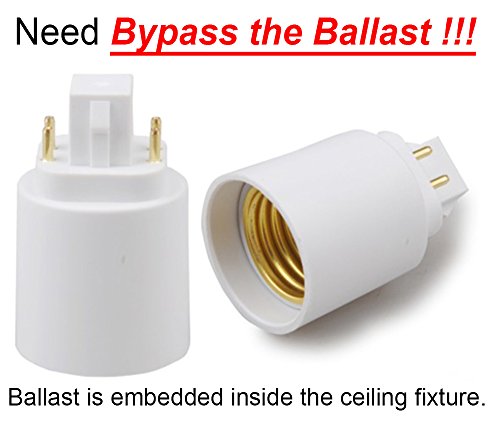

- THE BALLAST IN YOUR FIXTURE MUST BE REMOVED OR BYPASSED FOR THESE ADAPTERS TO FUNCTION PROPERLY. CONSULT AN ELECTRICIAN IF YOU ARE UNSURE. DO NOT OPERATE A LED BULB WITH A BALLAST IN THE FIXTURE, DOING SO WILL LIKELY DAMAGE THE BULB.
- All pin-based CFL, like GX24Q G24 GX23 G23 are lamp-ballast separated, but all screw-in E26 E27 are lamp-ballast integrated. ballast is a must to start a high voltage(600V-1500V 1ms) to light up the CFL, but it is dangerous for LED Lamp. Because LED Lamp are built with LEDs and Driver which is transforming the 100-240V AC to DC for LEDs. So the LED Driver input should be 100V-240V or 85-265V, so 600-1500V will be too high, and easily destroy the led lamp.
- There are LED bulbs with Driver compatible with the ballast,which you may find work without bypass ballast. BUT no LED Driver can be compatible with all ballast.Ballast is there consuming power,cause high temperature which will damage LED Bulb, So the Professional doing is bypass it. All pin-based CFL is ballast-lamp seperated, E26/E27 bulbs are self-ballast.
