Item Descriptions:

High quality tone hands free call

In case

With the Bluetooth function, you can automatically and easily pair this product with a smartphone etc, then use a built-in microphone to make a hands-free call safely while driving so as not to miss an important phone.

With CVC technology, you can play calls and music with high quality sound.

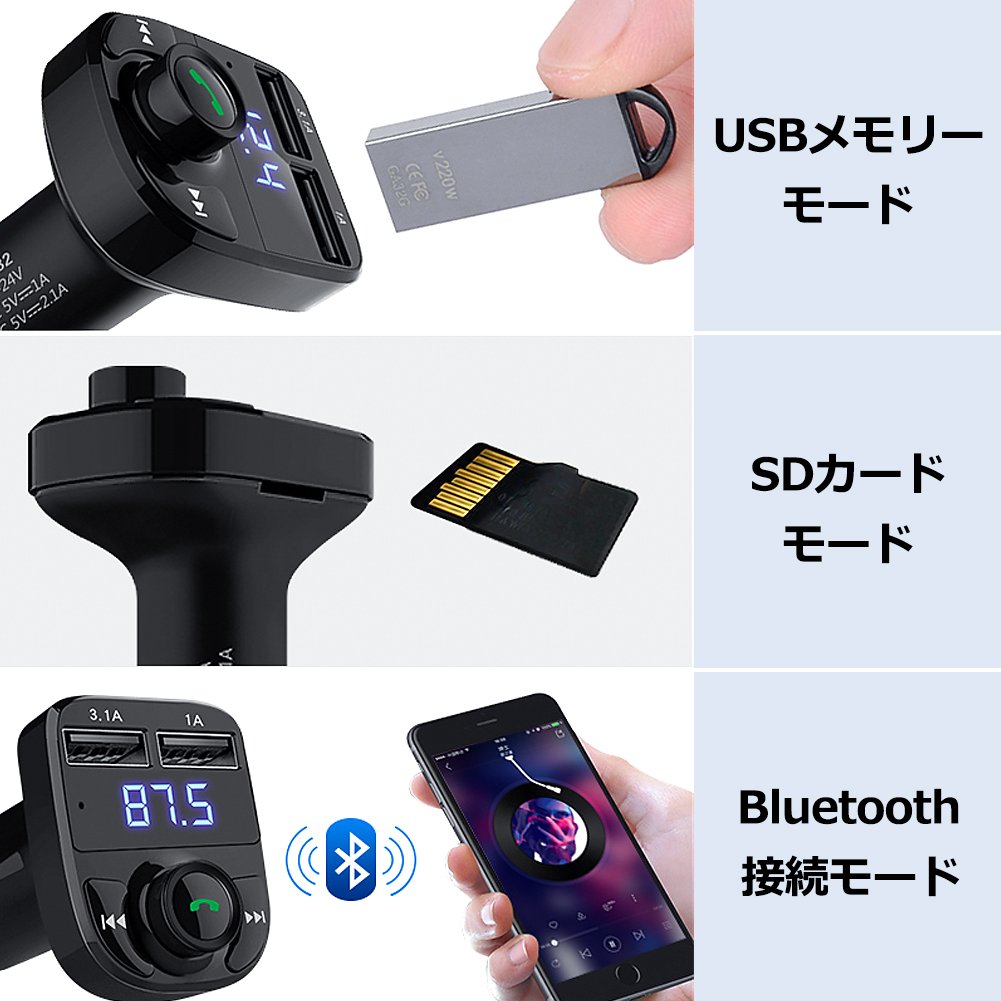

Various playback modes

A: via Bluetooth.

B: via micro SD card (supports MP3, WMA, WAV format).

C: via USB flash disk.

In case

Car Charger

There are also two USB ports, 3.1 A USB port is compatible with rapid charging such as iPhone, iPad, tablet etc, and smart output current safely charges the device.

In addition, it charges with the optimum output, so it will not damage the battery.

1A USB port can be used to charge ordinary smartphones and wireless earphones, as well as inserting the USB memory - you can play the music in it.

You can charge while enjoying music, so there is no worry about running out of the battery.

Voltage measurement function (applicable to 12V to 24V car)

When inserting this product into the cigar socket, long press the multifunction button, the voltage of the car battery is displayed on the LED display.

At the same time, the voice announcer of the current voltage situation flows.

12 to 24 V drag, mini bus, passenger car etc can be fully addressed.

Easy Bluetooth pairing

1. Insert the product into the cigarette lighter.

2. Set the Bluetooth function of the mobile on and search for pairable devices.

Please pair this product with the name "HY - 82" that was searched.

3. Please adjust the frequency of this product and the car stereo radio.

4. This completes pairing setup.

The setting is only the first one, you can play music in your terminal such as iphone.

Explanation of operation of body button

1. Multifunction button

① Press short button to go off hook and talk.

② During a call Pressing a multifunction button for a short time makes it on hook and ends the call.

③ Press and hold the button for 5 seconds to reject the phone that came.

④ If you press the button twice shortly, you can call back the last phone.

In case

⑤ By turning the button, the volume adjustment becomes possible.

In case

⑥ When you press and hold the button for a long time, you can adjust the frequency by turning the button.

2.

Music playing

① [▷ ▷ | |] Press and hold the BODAN to change the mode.

The change procedure is Bluetooth mode> SD card mode> USB memory mode.

② [〃 ✔ ✔ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓

③ [◁ ▷] Bodin and [▷ ▷ │ │ |

Product Specifications

Bluetooth version: V 4.0 + EDR

Connected equipment display name: HY-82

FM transmission frequency: 87.5 - 108.0 MHz

Output frequency: 20 Hz - 20 KHz

Supports both input voltage: 12 to 24 V

Output voltage: 5 V / 2.1 A

Support file: MP3 / APE / FLAC / WAV

USB memory: 0 to 32 GB

Micro SD card: 0 ~ 32GB

Transmission distance: within 5 m

SNR: 85 db (FM: 65 db)

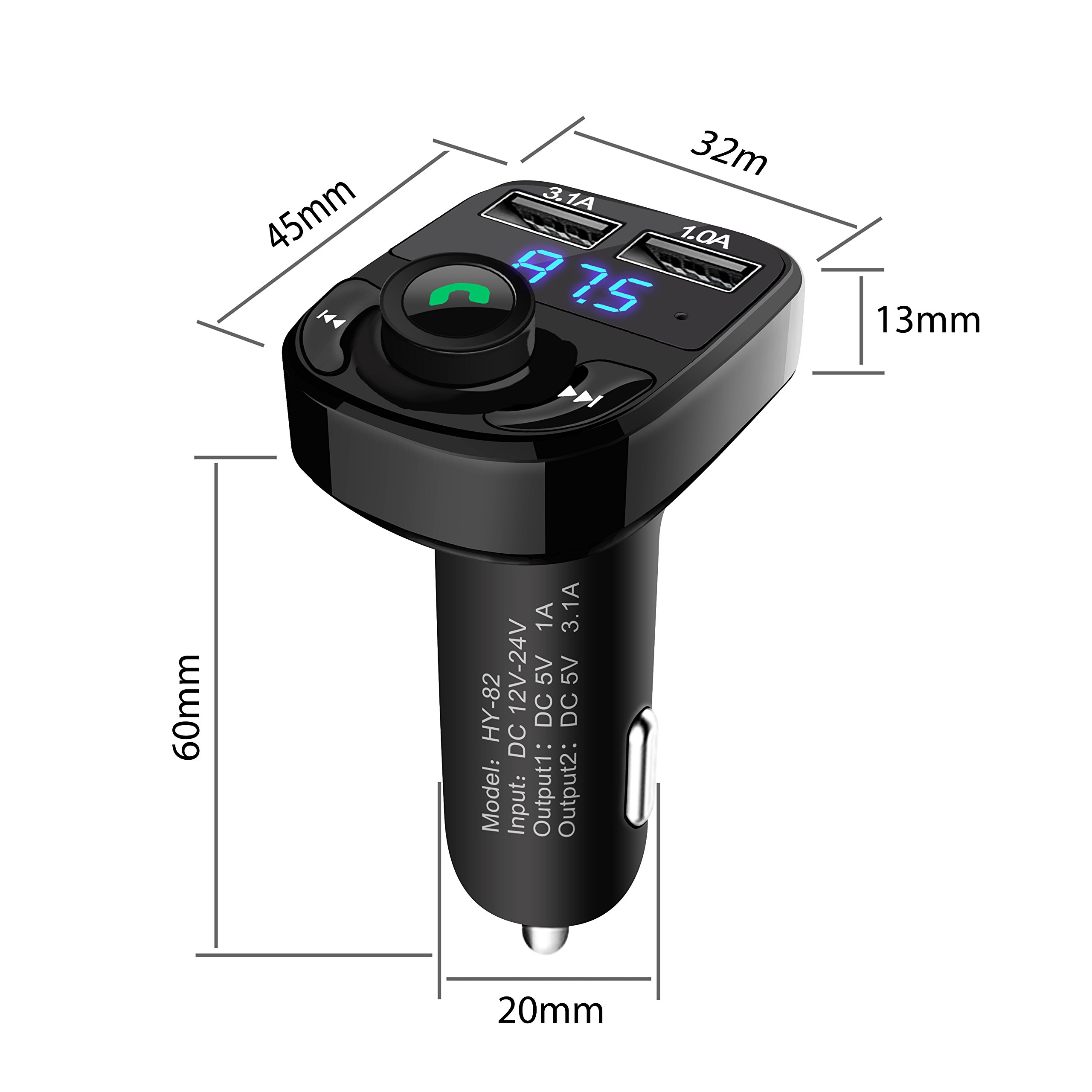

Body size: 46 * 39 * 80 MM

Weight: About 30 g

please note

1. Although most smart phones can be applied to products, some functions may not be available depending on the model, please note.

2. Direct sunlight, extremely high frequencies, excessive bass may cause malfunction.

3. It may not be possible to connect depending on the model of mobile phone or smartphone.

4. The color appearance may differ from the actual product depending on the monitor.

PS: We also have a Japanese manual for electronic version, so if there is demand, please copy the following link and download it.

Link: http: // yahoo.jp/box/OAhKVC

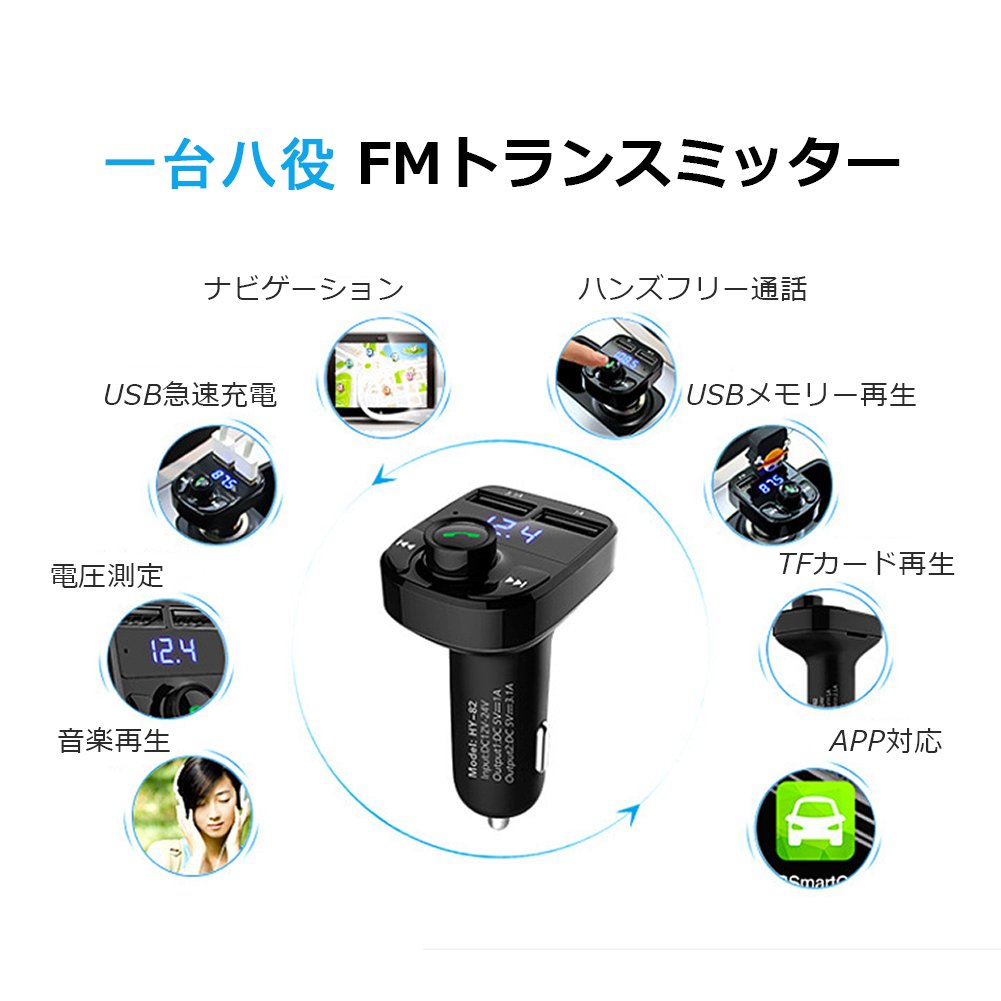

Features:

• Please enter model number Confirm this is compatible:
• 【Easy to connect】 Connect this product to a Bluetooth device such as a smartphone or tablet, with simple pairing, Bluetooth and FM transmission, you can enjoy smartphone and iPad music at the car stereo speaker inside the car!
• 【Music playback】 When you plug in the USB flash memory or micro SD card in addition to the connection with Bluetooth, the saved MP3 format music will be played automatically in order.
• ※ Please use slot 1A for USB memory.

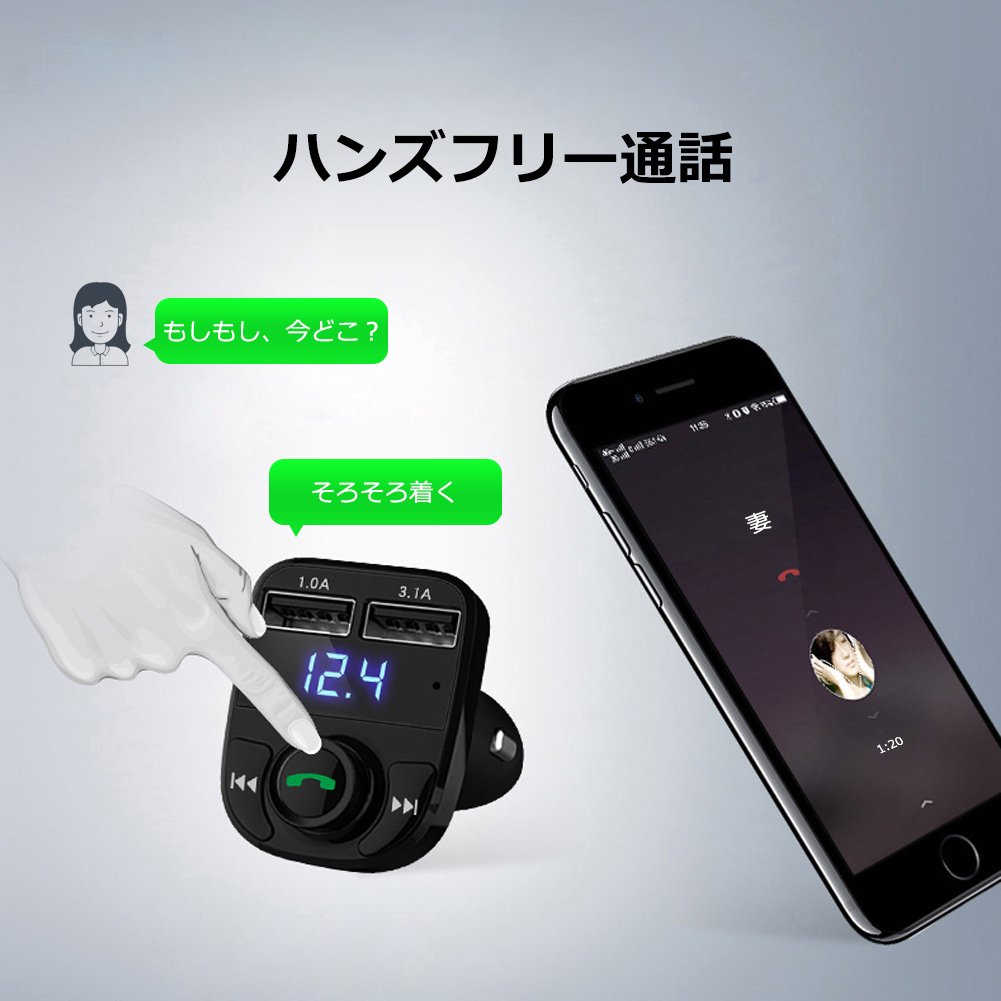

• [Hands-free] After phone and Bluetooth pairing, when a call comes in, handsfree safety calling is possible from the built-in microphone with button one push.
• CVC noise cancellation technology makes it easy to send clear handsfree calls.

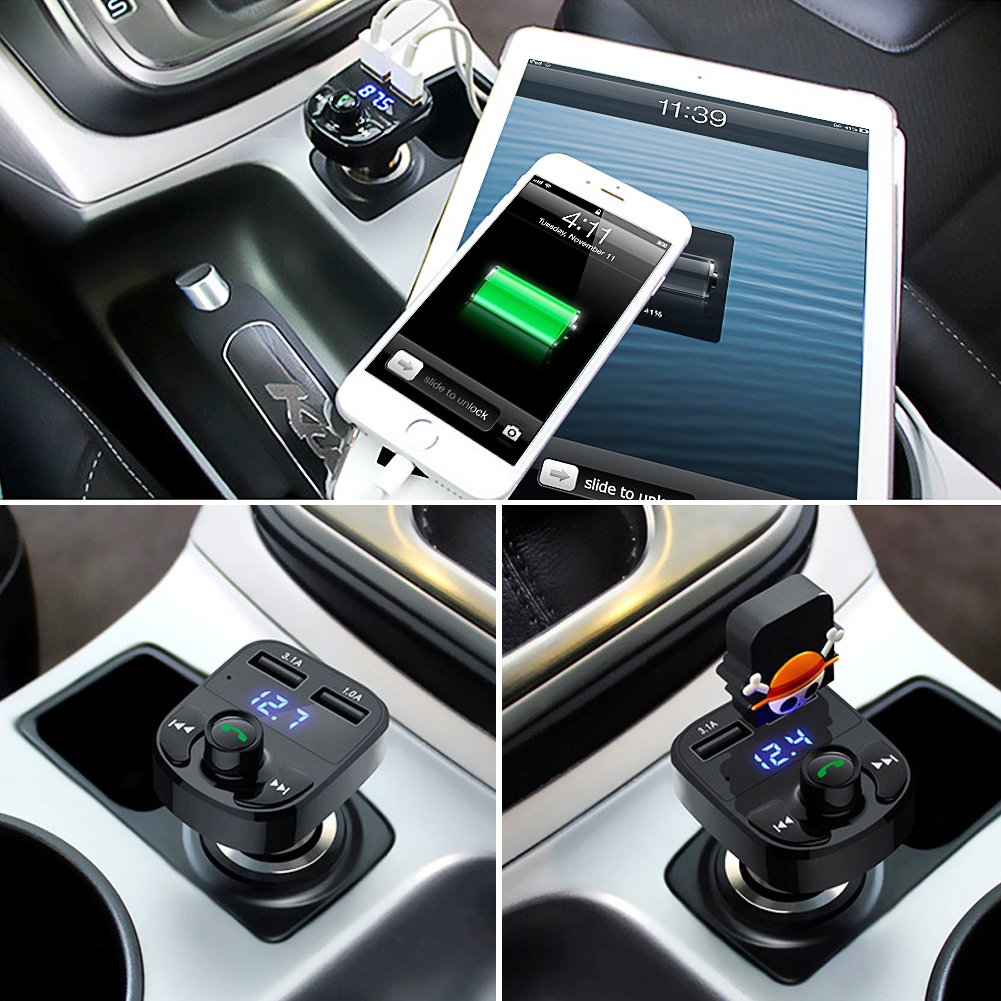

• 【USB Charging Function】 Two charging USB ports are also installed, and simultaneous charging of 2 terminals such as smartphone, tablet etc. possible as well as rapid charging with total 4.1 A (3.1 A + 1 A) output is possible.
• You can also charge smartphones while playing music.
• While listening to music, you can check the voice of the navigation guide of the smartphone with the car stereo!
• [Voltage measurement function] Display voltage of car battery in real time on LED display, convenient to prevent power shortage!
• Since it corresponds to both 12V and 24V, you can use it with a wide variety of cars.
• For Elinker products, only buycheapDG (JP) is an authorized dealer.
• Please note that it will be outside the scope of the warranty for 12 months if purchased otherwise.

Product information:

Shipping Weight: 117 g

Package Dimensions: 5.79 x 8.41 x 13.21 cm
