Note:

1.Qi receiver can not use alone, must work together with the wireless charger.

2.Please choose correct type for your moblie phone. if you don't know how to choose it , please make a note what's your phone model.we will send the receiver which match your phone, thank you.

3.This receiver fit for most USB port phone, not all the phones, if you can not sure wheather your phone can use it or not , please feel free contact our customer service to advise.

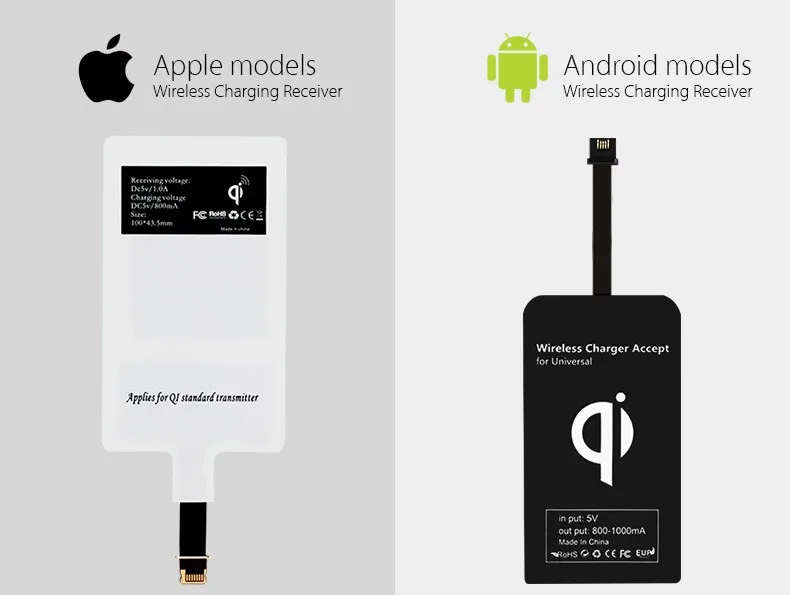

{32D0C845-6908-4238-893C-6B5E86A14D89}

Specifications:

Color: white & Black

Input voltage: DC 5V

Input Current: 1A

Transmitting power: 5W

Charge Current: 500-1000mA

Transmission distance: 8mm

Charging efficiency: 70%

Implementation of the standards: QI Wireless charging standard

For iPhone:

for iPhone 6 --- External(need to install the Qi receiver back case and, need to install the Qi receiver )

for iPhone 5/5S --- External(need to install the Qi receiver back case and, need to install the Qi receiver )

for iPhone 6 plus --- External(need to install the Qi receiver back case and, need to install the Qi receiver )

For Samsung:

S3(9300/9308) --- External(reserved interface, need to install the Qi receiver)

Note 2 (7100/7102) --- External(reserved interface, need to install the Qi receiver)

Note 3 (9000) --- External(reserved interface, need to install the Qi receiver)

S4 --- External(reserved interface, need to install the Qi receiver)

S5 --- External(reserved interface, need to install the Qi receiver)

Note4 --- External(reserved interface, need to install the Qi receiver)

For Nokia:

925 --- External(reserved interface, need to install the Qi receiver)

720 --- External(reserved interface, need to install the Qi receiver)

820 --- Built-in(need to replace the battery cover)

How to use it:

1. (Samsung)

Step 1: Open the back cover of the Samsung Galaxy S4 /S5 /NOTE 3

Step 2: Stick the receiver card to the mobile phone's battery and the two protuberant touch points must touch the two recesses next to the battery.

Step 3: Close the back cover.

Step 4: Place the mobile phone onto the Qi wireless charger.

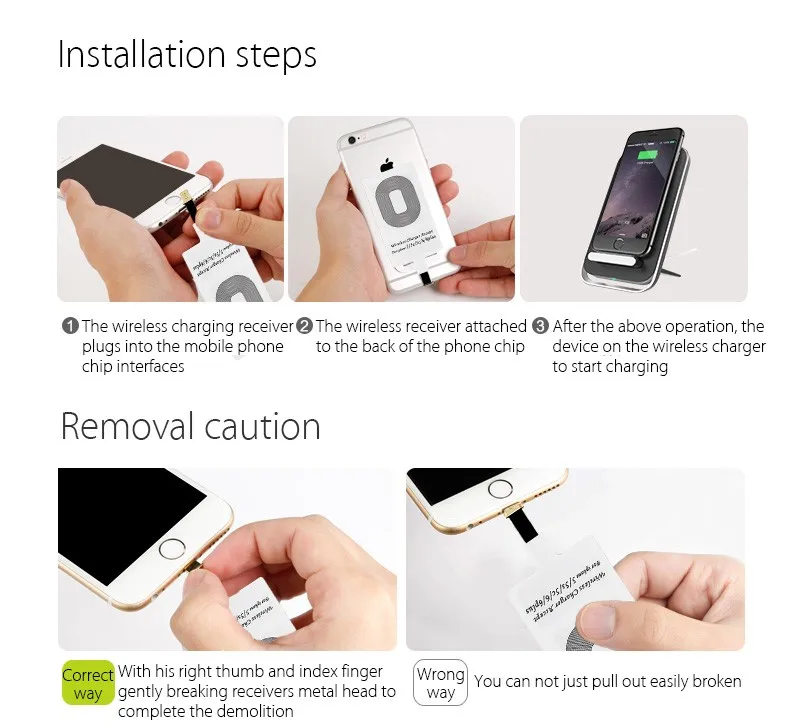

2.iPhone & Android phones

Step 1: Insert the receiver card to the mobile phone's USB port

Step 2: Put on the phone case.

Step 3: Place the mobile phone onto the Qi wireless charger.
