Product Description

CircuitPython is our beginner-oriented flavor of MicroPython - and as the name hints at, its a small but full-featured version of the popular Python programming language specifically for use with circuitry and electronics.

Please note, CircuitPython is still in beta and we're working hard to make it awesome! Please pick up one of these Feather M0 Expresses if you want to try it out - maybe even help us find bugs and make improvements!

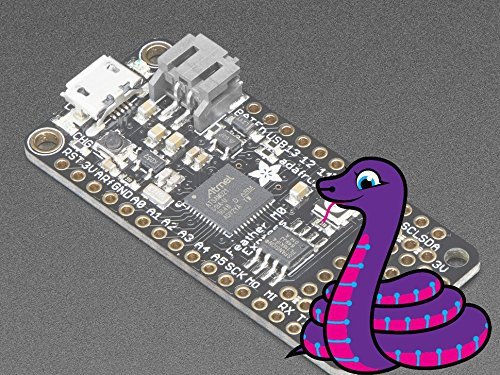

That doesn't mean you cant also use it with Arduino IDE! At the Feather M0's heart is an ATSAMD21G18 ARM Cortex M0+ processor, clocked at 48 MHz and at 3.3V logic, the same one used in the new Arduino Zero. This chip has a whopping 256K of FLASH (8x more than the Atmega328 or 32u4) and 32K of RAM (16x as much)! This chip comes with built in USB so it has USB-to-Serial program & debug capability built in with no need for an FTDI-like chip.

Here's some handy specs!
ATSAMD21G18 @ 48MHz with 3.3V logic/power
256KB of FLASH + 32KB of RAM. No EEPROM
32.768 KHz crystal for clock generation & RTC
3.3V regulator with 500mA peak current output
USB native support, comes with USB bootloader and serial port debugging
Built in 100mA lipoly charger with charging status indicator LED
Pin #13 red LED for general purpose blinking
Power/enable pin
4 mounting holes
Reset button

The Feather M0 Express uses the extra space left over to add a Mini NeoPixel, 2 MB SPI Flash storage and a little prototyping space. You can use the SPI Flash storage like a very tiny hard drive. When used in CircuitPython, the 2 MB flash acts as storage for all your scripts, libraries and files. When used in Arduino, you can read/write files to it, like a little datalogger or SD card, and then with our helper program, access the files over USB.

Feature

ATSAMD21G18 ARM Cortex M0+ processor with 256K Flash and 32K RAM
CircuitPython is still in beta
Measures 2.0" x 0.9" x 0.28" (51mm x 23mm x 8mm) without headers soldered in. 5 grams
20 GPIO pins. Hardware Serial, hardware I2C, hardware SPI support. PWM outputs on all pins. 6 x 12-bit analog inputs. 1 x 10-bit analog ouput (DAC)
Comes fully assembled and tested, with a USB bootloader that lets you quickly use it with the Arduino IDE or for loading CircuitPython. We also toss in some header so you can solder it in and plug into a solderless breadboard.
Brand : Adafruit
EAN : 0717520031277
Product Dimensions(LxWxH) : 8x6x3cm ; 86 g
Package Dimensions(LxWxH) : 8x6x3cm ; 86 g
