Item Descriptions:

YABER = your car's best partner! It is the best companion of your car.

No problem if provided

When traveling, driving, etc. while driving, when the battery of the car goes up, in case of emergency such as charging of the mobile terminal is low, the battery of the video camera has run out, it is very useful if there is this jump starter!

It is better to have one for one family so as not to panic at the time of emergency.

Powerful jump starter

When the battery goes up with a cooler or the like, such as when stagnating at high speed, you can start easily without calling the car service company.

It is a jump starter that took about 6 times on 6L gas engine car and 5L diesel car (12V) at full engine charge with engine starter up to 800A.

Of course, vehicles with less than its displacement can be handled.

Easy to carry mobile battery

All necessary accessories fit in one case, the case is solid and very convenient!

There are two 5 V 2.1 A USB terminals so you can charge mobile phones, tablet terminals, etc. as mobile batteries.

Note: Pressing the power key will display "OUT" "► 5.0 V 2.1 A" (图标) on the LCD screen and charging begins.

If "OUT" "► 5.0 V 2.1 A" (图ition) is not displayed on the LCD screen, press the USB active switch.

It can also be used as an emergency light, it is a necessity at evacuation!

(1) Press the power key and hold down the power key for a long time to light the LED light.

(2) Each time the power key is pressed, the flash mode changes in the following order.

(3) Flash Mode: Lit → SOS → Blink → Off

It is a convenient engine starter that can also be used as a flashlight, camping light, lighting light, rescue light or warning light.

Multiple safety protection function

The smart battery clamp is adopted, and when there is a misoperation, the indicator light lights, it does not output.

In addition to reverse connection protection, we also offer low voltage protection, reverse charge protection, short protection and overtemperature protection, so do not worry.

Body

charging

You can charge by car cigarette lighter or garden AC charger.

Charging of the main unit starts and the number of the remaining indicator displayed on the LCD screen flashes.

When charging is completed, the remaining amount indicator stops flashing the number.

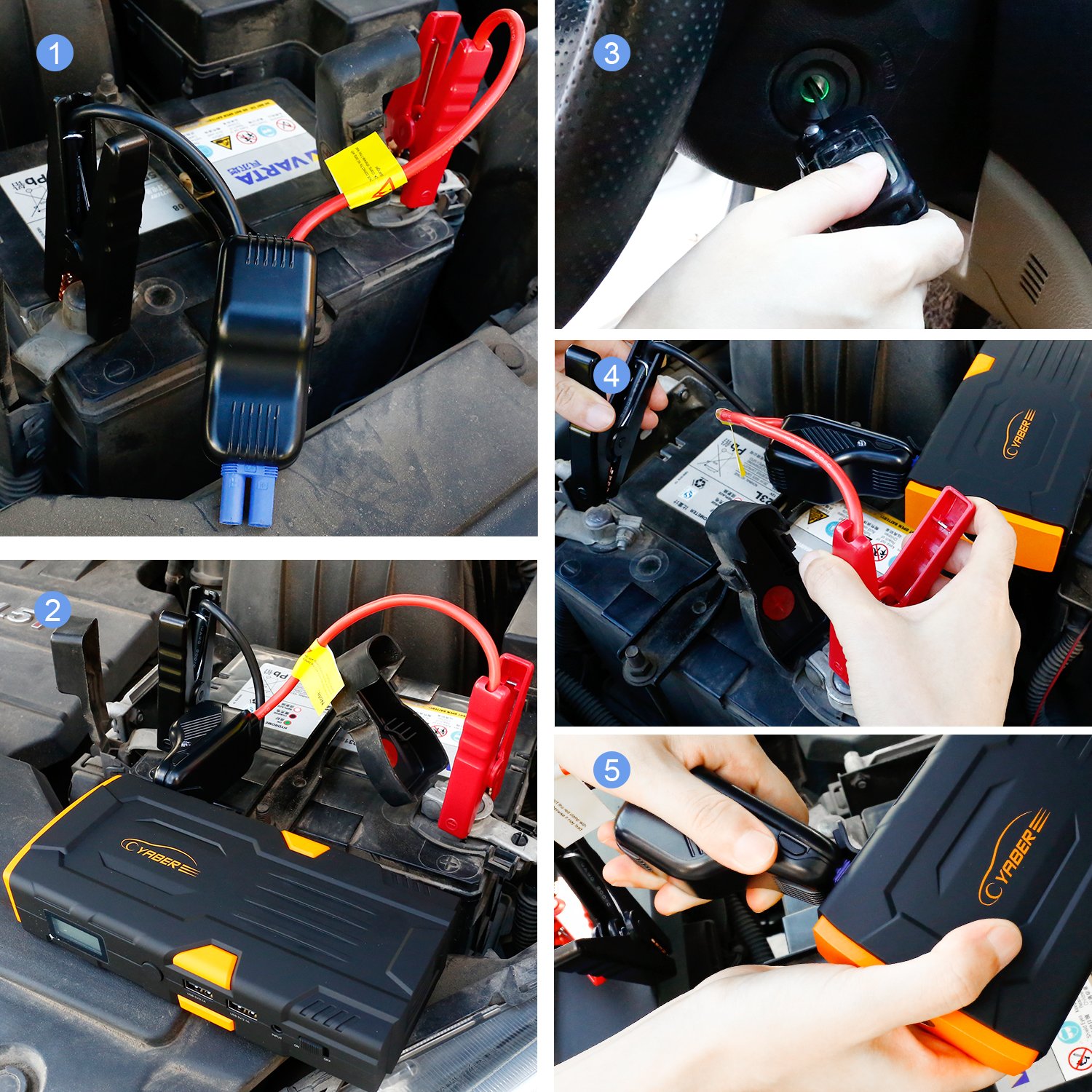

how to use

(1) Connect the clip of the jump starter cable to the battery terminal of the vehicle.

First connect the red clip to the positive ⊕ terminal of the vehicle battery, then the black clip to the minus terminal.

Note: Do not touch (short) the red and black cable of the jump start cable.

(2) Open the dust cover on the main unit and connect the EC5 plug to the EC5 jump start output terminal.

(3) Press the power key to confirm that the remaining battery level is 30% or more.

(The remaining battery power is displayed on the LCD screen.)

After completing the connection, the jump starter cable automatically measures the voltage of the vehicle battery.

Attention: When the remaining battery level becomes 30% or less, the car engine may not work!

(4) Jump Starter Cable Indicator When the lamp 1 lights up in green, start the engine of the car.

(5) When the engine starts, remove the jump start cable from the main unit and remove the clip connected to the in-vehicle battery within 30 seconds.

* Remove the clip (black) on the minus (-) terminal side, and then remove the clip (red) on the plus (+) terminal side.

If the engine did not start up, please wait more than 10 seconds and turn the cell motor again!

specification

Model number: YRBER JS - 01

Battery capacity: lithium polymer battery 18000 mAh

Car: Diesel 5 L, gasoline 6 L

Protection function: Low voltage protection, Reverse charge protection, Reverse connection protection, Short protection, Overtemperature protection

USB output: 5 V / 2.1 A

Charge: 15 V / 1A

EC 5 Jump start output terminal: 12.6 V

Start current: ≥ 400 A

Peak current: 800 A

LED light: lighting mode, blinking mode, SOS mode

Charging time: about 4.5H

Used life: 1000 times or more

Operating temperature: -20 ° C - + 60 ° C

Body size: 184 * 88 * 38 mm / 7.3 * 3.5 * 1.5 inches

1 year manufacturer's warranty

This product comes with 1 year manufacturer's warranty from date of purchase.

If you need consultation about products and use, exchange or repair your use, please contact <[email protected]> directly.

Specialized staff will respond quickly.

Features:

• "Compact and powerful" When fully charged, it is a jump starter that took about 25 times the 6L gas engine car and 5L diesel car (12V) at the engine starter 800A maximum.
• Of course, vehicles with less than its displacement can be handled.
• "18000 mAh high capacity" It carries a mobile battery of 18000 mAh, and it can fully charge in about 4.5 hours using the accessory charger.
• There are two 5 V 2.1 AUSB terminals so you can charge mobile phones, tablet terminals, etc. as mobile batteries.
• "Multiple safety protection function" Smart battery clamp is adopted, and when there is a misoperation, the indicator light turns on red and it does not output.
• In addition to reverse connection protection, we also offer low voltage protection, reverse charge protection, short protection and overtemperature protection, so do not worry.
• "Three light modes" Daily lighting, strobe lighting and SOS signal lighting These three light modes are carried and it is a convenient engine starter that can also be used as a flashlight, camping light, lighting light, rescue light or warning light.
• "Extensive accessories" YABER car jump starter, battery clamp, car charger, AC adapter, micro USB cable, user manual (with Japanese page), storage bag.
• There are 12 months warranty, so please feel free to contact us at any time!

Product information:

Shipping Weight: 1202 g

Package Dimensions: 10.79 x 13.79 x 25.20 cm
