Product Description

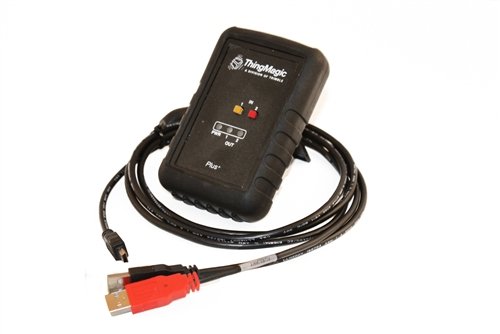

The ThingMagic UHF USB Plus RFID Reader is an affordable reader perfect for developing and deploying interactive RFID applications. Powered by the Mercury 5e-Compact UHF RFID reader module from ThingMagic, the USB RFID Reader is powered and controlled through a PC. The USB RFID Reader's small form factor, integrated antenna, deployment feasibility, and low cost make it an ideal choice for application developers and their agile projects. NOTE: ThingMagic has recently upgraded the "USB Reader" and is calling the improved version, the "USB Plus Reader". The Plus reader is identical in all respects to the original reader, but one - the Plus reader contains a new, higher performance antenna. What's Included? USB Reader Unit, USB Cable, and a One Year Factory Warranty. SPECIFICATIONS ELECTRICAL: Air Interface Protocol: EPCglobal UHF Class 1 Gen 2 (ISO 18000-6C) Operating Frequency: UHF 860- 960 MHz Transmit Power: Up to 23 dBm Max Receive Sensitivity: -73 dBm Max Read Distance: From 3 in. up to 3 ft. (0.91 m)* Max Read Rate: Up to 200 tags/second** Data Interface: USB GPI: 2 I/O command controlled LEDs GPO: 2 I/O command queried switches Power Source: USB cable MECHANICAL: Antenna Ports: Internal linear polarized antenna with peak gain of 1 dBi Dimensions: 3.8 x 2.4 x 1.0 in (97 x 61 x 25 mm) Weight: 0.34 lbs (154.22 g) ENVIRONMENT: IP Rating: IP 52 Operating Temperature: -20° to 60°C APPLICATION INTERFACE: Host API: Mercury API Demo Software: Universal Reader Assistant
