Item Descriptions:

size:

H4

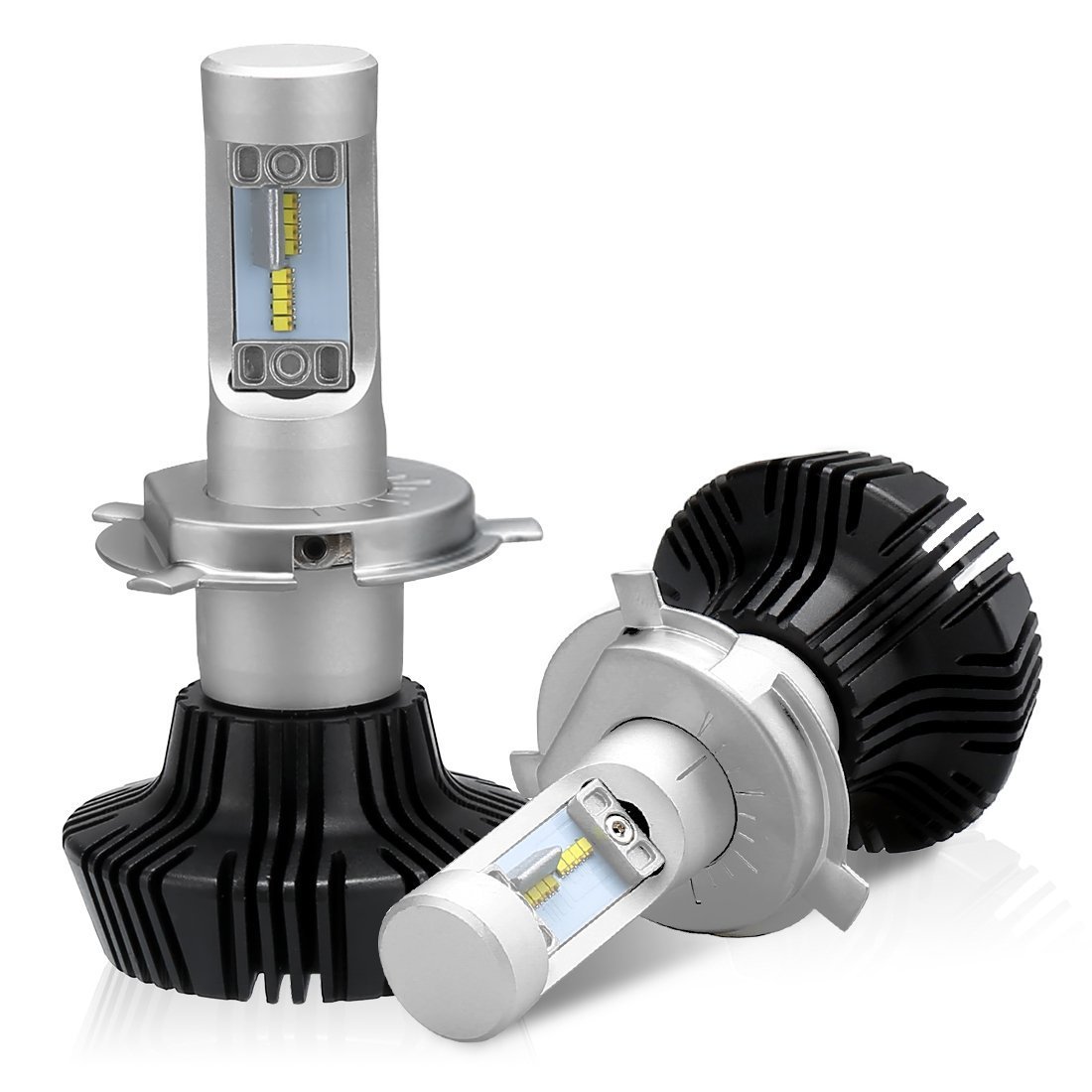

[Product specifications]

★ PHILIPS Lumileds LUXEON ZES CHIP installed!

★ LED power: 25 W × 2 ★ Applicable voltage: DC 9 - 32 V

★ Lumen: 8000 LM × 2 ★ Color temperature: 6500 ± 500 K

★ Operating temperature environment: -40 ° C to + 80 ° C

★ Size: Approximately 94 * 50 mm (H * W) ★ Weight: 325 g / set

★ LED life: over 30000 hours

★ Body Material:

Adopted cutting edge aluminum material Aviation aluminum 6063

★ Body color: silver · black

★ Warranty: 1 year ★ Waterproof standard: IP65

【Achieve brightness not to beat HID!

Most of the high-grade LED headlights that are circulated carry CREE chips, but originally CREE is not for in-vehicle use, but is an element developed assuming general lighting such as flashlight to the last.

This product is a new type H4 LED head light equipped with Lumileds chip specialized manufacturer element which is producing LED for genuine headlight such as Audi.

Brightness which does not lose to HID even though it has very easy-to-see color temperature, it is super-lifetime and power-saving, but it does not worry even at night and it drives safely!

【Excellent durability, long service life】

It realizes long life which is characteristic of LED chip.

It has a long life of over 30000 hours and surpasses halogen, and durability is outstanding!

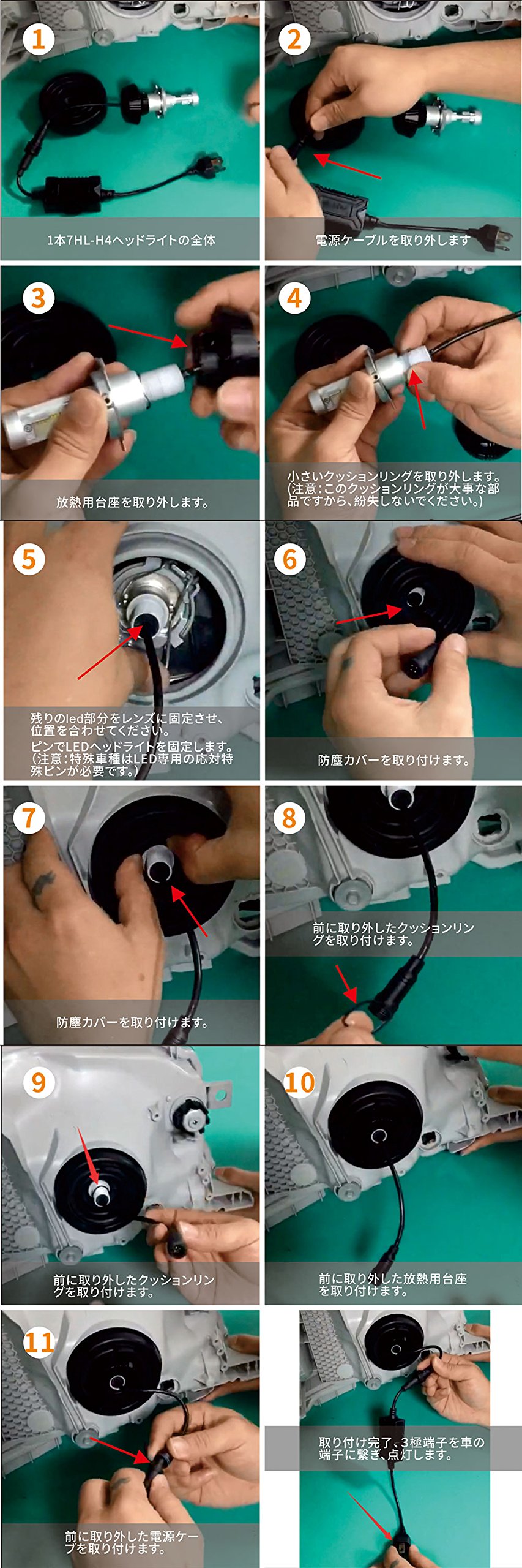

【Can set detailed setting according to car model】

Pedestal separable, the hole of the fixing screw is on the side of the narrow part on the pedestal.

Loosen the fixing screw with a hexagonal wrench and remove it, you can loosen the base by hand and separate it, you can also use the base with reverse rotation.

There are fixed screws on both sides of the claw for angle adjustment.

Loosen one screw and turn the claws.

Adjust it to the appropriate angle, turn the scale on the claws and aim towards the engraved line of the main body and stop it.

By loosening the emo screw with a hexagonal wrench, the positional relationship between the light emitting point of the LED chip and the mouthpiece part can be adjusted so that detailed setting according to the car type is possible.

【Adjustable angle of reflector and LED】

Distribution possible by making full use of reflector in all models!

[Heat dissipation measure]

The heat radiation measures are also battle, the aluminum body excellent in heat dissipation property realizes fanless with the heat sink function excellent in heat conduction.

You can use it without worrying about fan breakdown or noise.

【Inspection for car inspection】

A beautiful cut line is realized, a new standard vehicle inspection also passes the passing optical axis! Vehicle inspection that did not pass by conventional products can be handled with this product! (There are cases when fine adjustment of the optical axis is required depending on the type of vehicle)

【Waterproof】

IP65 protection effectively prevents rain and ensures safe driving in various weather conditions.

Features:

• Please enter model number Confirm this is compatible:
• ★ Ultra high brightness PHILIPS Lumileds LUXEON ZES CHIP installed!
• 4000 LM x 2 Ultra high brightness!
• Luminescent efficiency is over 95%!
• It is compact type and excellent in light emission and bright!
• Design that condenses technology and design!
• ★ Thermal Principle: Heat Pipe Technology + A380 Aluminum Heat Sink ★ Kelvin Count 6500 k (White) ★ Adjustable valve position about 1 mm in the direction of 360 degrees in the direction of rotation to match the shape of the reflector.
• ★ Ultra low load resistor!
• Low consumption!
• Long life!
• ★ LED power: 25 W × 2 ★ Applicable voltage: DC 12 - 24 V ★ LED life: over 30000 hours ★ Color temperature: 6500 K ± 500 K ★ LED light color: intense white daylight color ★ LED chip: PHILIPS Lumileds LUXEON ZES CHIP installed!
• Waterproof standard: IP65 ★ Total length approx. 94 mm LED mounting part Approx. 50 mm Heat sink part Siderai width About 50 mm LED part width About 17 mm ★ Operating temperature: -40 - + 80 ° C ★ Warranty: 1 year
• ★ Lumileds company's chip which produces LED for genuine headlight such as Audi is mounted, authentic LED headlight equipped with special manufacturer elements!
• ★ Efficient thermal resistance (2.5 ° c / w) and heat radiation performance: Efficient thermal resistance (2.5 ° c / w) and heat dissipation performance extend the life of the product, excellent durability is lighting
• Improve efficiency!
• ★ A beautiful cut line also realized, the new standard vehicle inspection also passed the mid-range optical axis! ★ Vehicle inspection that did not pass by conventional products can be handled with this product! (There are cases when fine adjustment of the optical axis is necessary depending on the type of vehicle)
• ★ New heat sink design that enabled high efficiency heat radiation without using cooling fans!
• ★ "Fanless type" so silence & noise ★ IP65 protection effectively prevents rain and ensures safe driving in various weather conditions.
• ★ "Please be sure to see" There is a one year warranty on the applicable product, so please rest assured on the quality, in order to protect the interests of the customer, please do not hesitate to contact us if there is any problem.

Product information:

Shipping Weight: 730 g

Package Dimensions: 6.71 x 16.79 x 21.69 cm
