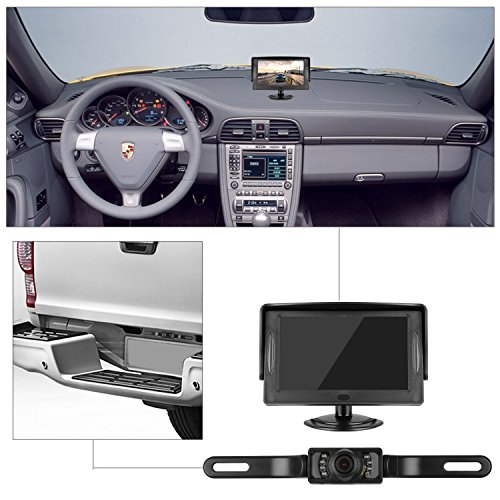

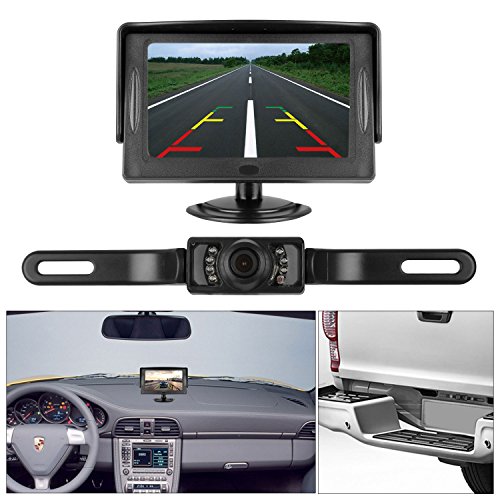

DohonesBest Backup Camera and 4.3 Display Monitor Kit only need Single power source and Rear view or Fulltime View optional Waterproof license plate Rear view camera Night Vision for Car Vehicle

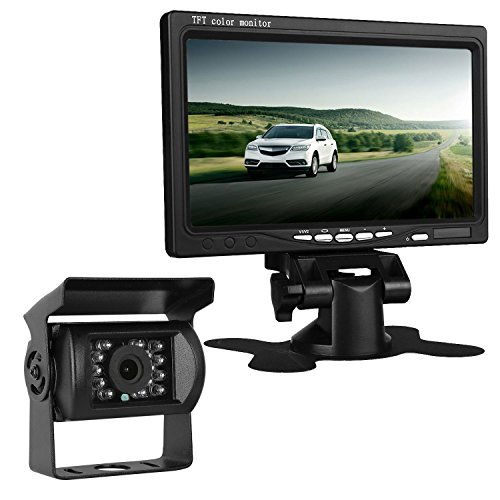

7"-NZWXDB


4.3"E-FPWX

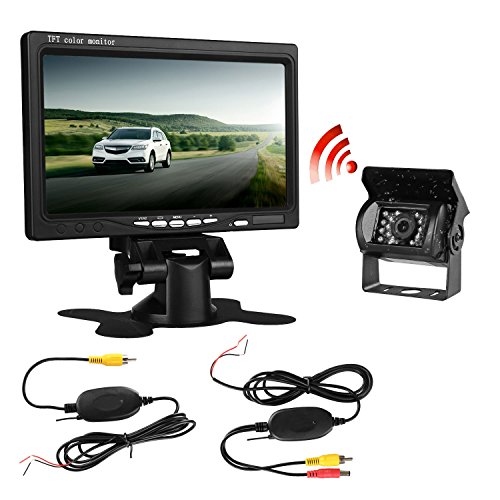

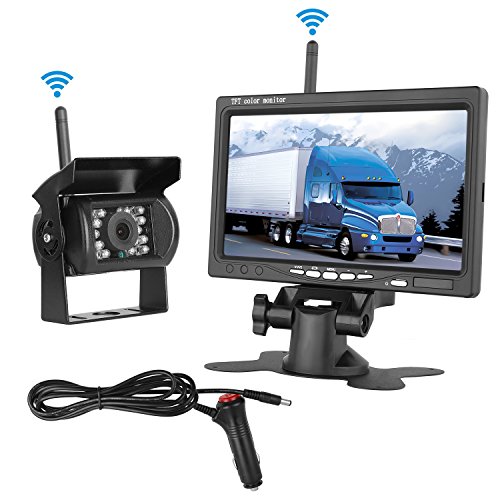

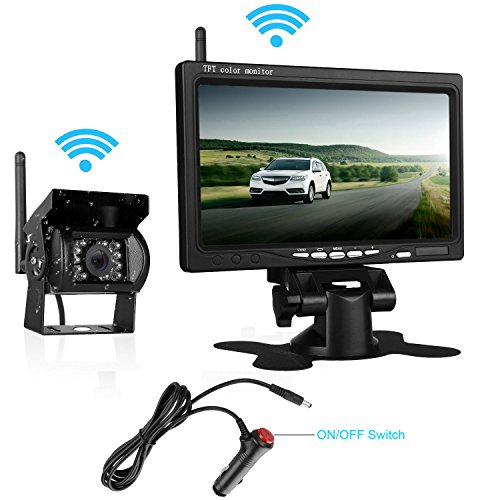

7" monitor and camera wireless


G-7DB-ybx


backup camera DB- 0901

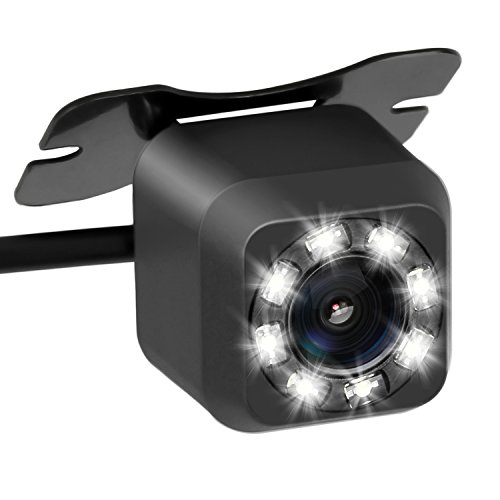

backup camera white light


5'-fpwx


7'-NZWXCC


7'-db15ft


Backup camera IR night vision


Rear View Front Camera

Product Description

Features:
High quality and good durability.
Supports multi-role display.
Ultra-low power consumption to prevent overheat.
Mini size and handy, very convenient for carrying and installing.
Default displays black screen when it's not working, no signal.
Monitor will start up automatically, and synchronously display the video from rearview camera when you're backing your car, the monitor will close itself after backing.
Scenes will be cut to rearview camera automatically while you're backing the car and change back to the original scenes after that.

Specifications:
Resolution: 480 (W) × 272 (H)
Signal format: NTSC
Rated Voltage: DC 12V
Image sensor: PC7070
Resolution: 480 TV line
S/N Radio: better than 48db
Effective Pixels: 648 X 582 pixels / NTSC
Video output: RCA connector, 1.0vp-p,750hm
Power: 12V DC
Waterproof Grade: IP68

Package Includes:
1 x 4.3 inches LCD Monitor
1 x Lisence Plate Rearview Camera
2 x Power Cable (3.94 ft)
1 x Video Cable (19.70 ft)
1 x User Manual (Updated and Detailed)

Tips:
Recommended power supply for camera is the reverse lights power, and power supply for monitor is the cigarette lighter power. Other power supplys and installations are also feasible, if the volt is proper and it will not influence other functions of the car. The length of cables needed for installation also needs consideration, because the power cable is 3.94ft and video cable is 19.70ft. Fits most sedan, pickup, mini van in the market. Please take the actual length of you car into account before you place your order .

Feature

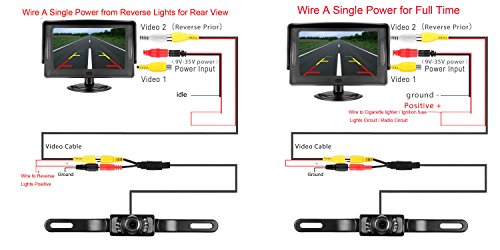

Very easy install, the system can be powered with a single power from reverse lights for rear view only or fuse box / running lights / Radio / Cigarette lighter for full time view

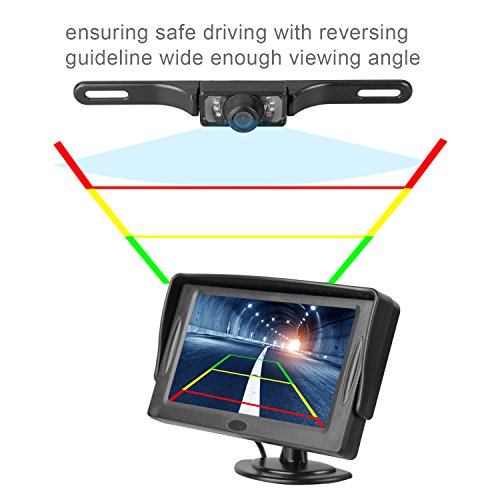

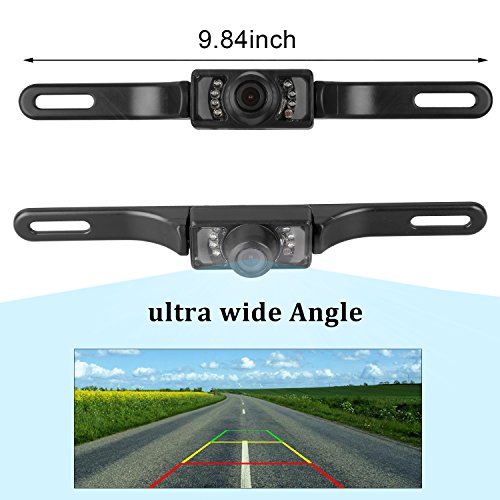

IP68 Waterproof license plate Color HD backup camera 135° viewing angle with 7 LED IR light Night Vision see clearly at night.
Monitor have V1/V2 two video inputs, V2 has priority, so normally the rear view camera wire to V2, you can wire another front/side camera to V1, when you driving, you can view front by V1,when you turn on reverse and off, the V2 will working automatically on and off too.

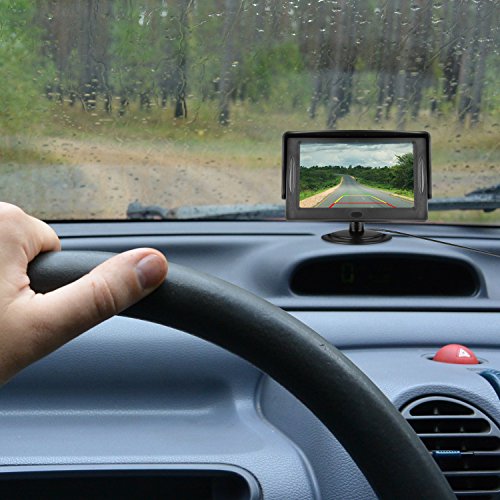

4.3 LCD display monitor easy to install on Car center console by Double-sided adhesive stickers
We provided a professional instruction in package and installation video, please contact us with any installatlation problem and quality issue we provide tech support and replacement service : Dohonestbest@outlook.com
Brand : DohonesBest
EAN : 6369864163776
Package Dimensions(LxWxH) : 27x17x6cm ; 0 g
