Product Description

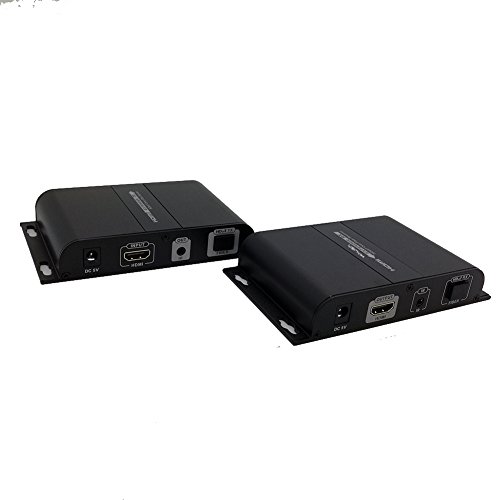

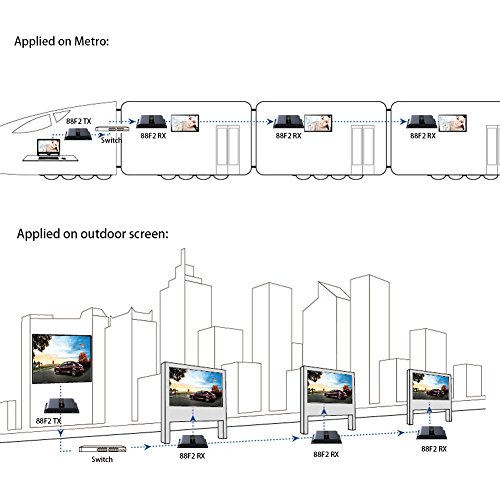

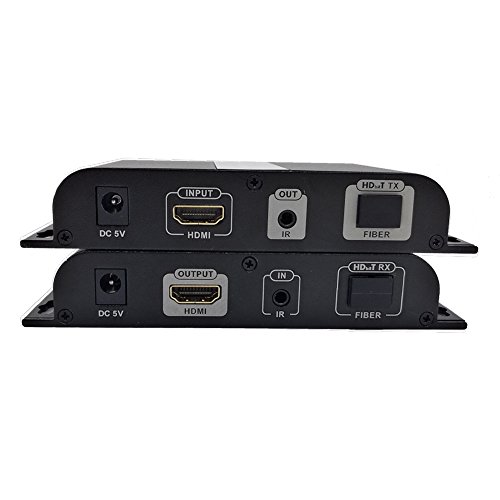

This HDMI over fiber optic incorporates HDBitT transport technology, allowing you to extend 20KM distance between the source devices to display end and supporting IR pass back function. It can be widely applied in video conference, medical system, shopping mall, multimedia presentation etc filed.

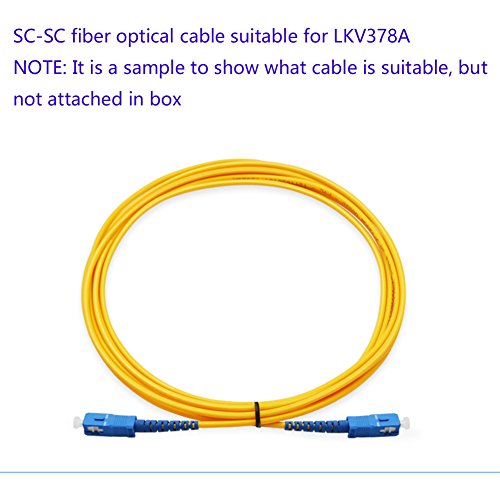

Single mode fiber optic transmission.
No need extra installation driver
Transmit 1080p signal up to 20KM
Support IR pas back for easy control
Avoid the electromagnetic interference in environment for long distance transmission
Low signal loss, wide frequency band and strong anti-interference

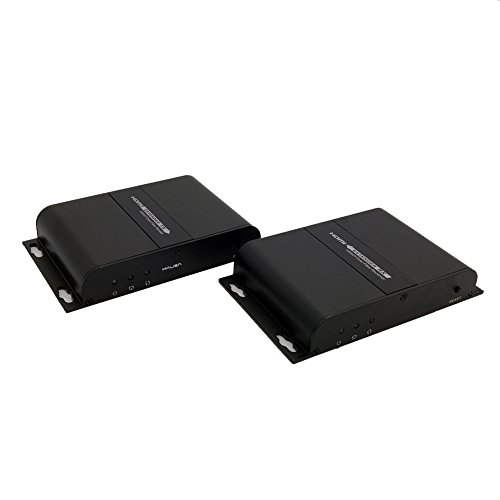

High-end aluminum alloy enclosure design
Wall-mountable design for convenient installation
HDMI 1.3 Full compatible with HDCP
Decode: H.264
Support resolution: 480i@60Hz,480p@60Hz,576i@50Hz,576p@50Hz,720p@50/60Hz,1080i@50/60Hz,1080p@50/60Hz
DDC signal voltage 5Vp-p(TTL)
TMDS bandwidth 10.2Gpbs
Central wave length 1310nm
Transmission distance 1～20km
Link loss ≤14dB
Output light power ≥-11dBm
Receive sensitivity ≤-32dBm
Return loss 15dB
IR remote control Support 20~60KHz IR remote control
Power supply DC5V/2A * 2pcs
Power consumption TX<4W RX<3.5W
Working temperature 0℃～60℃
Enclosure material Aluminum alloy
Product dimension 138x81.5x24(WxDxH) *2pcs
Weight TX:178g RX:177g
Color Black

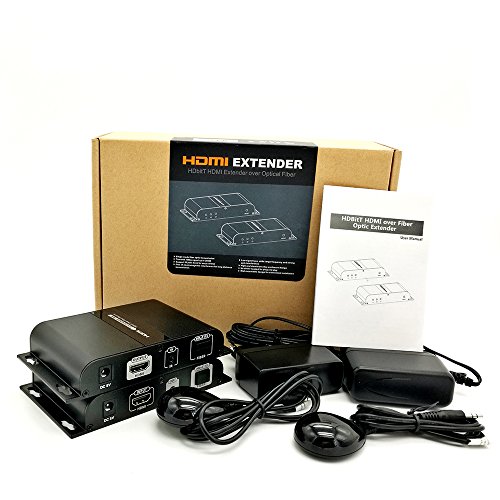

PACKAGE CONTENTS
HDMI extender TX*1pcs
HDMI extender RX*1pcs
DC5V2A*2pcs
