Item Descriptions:

size:

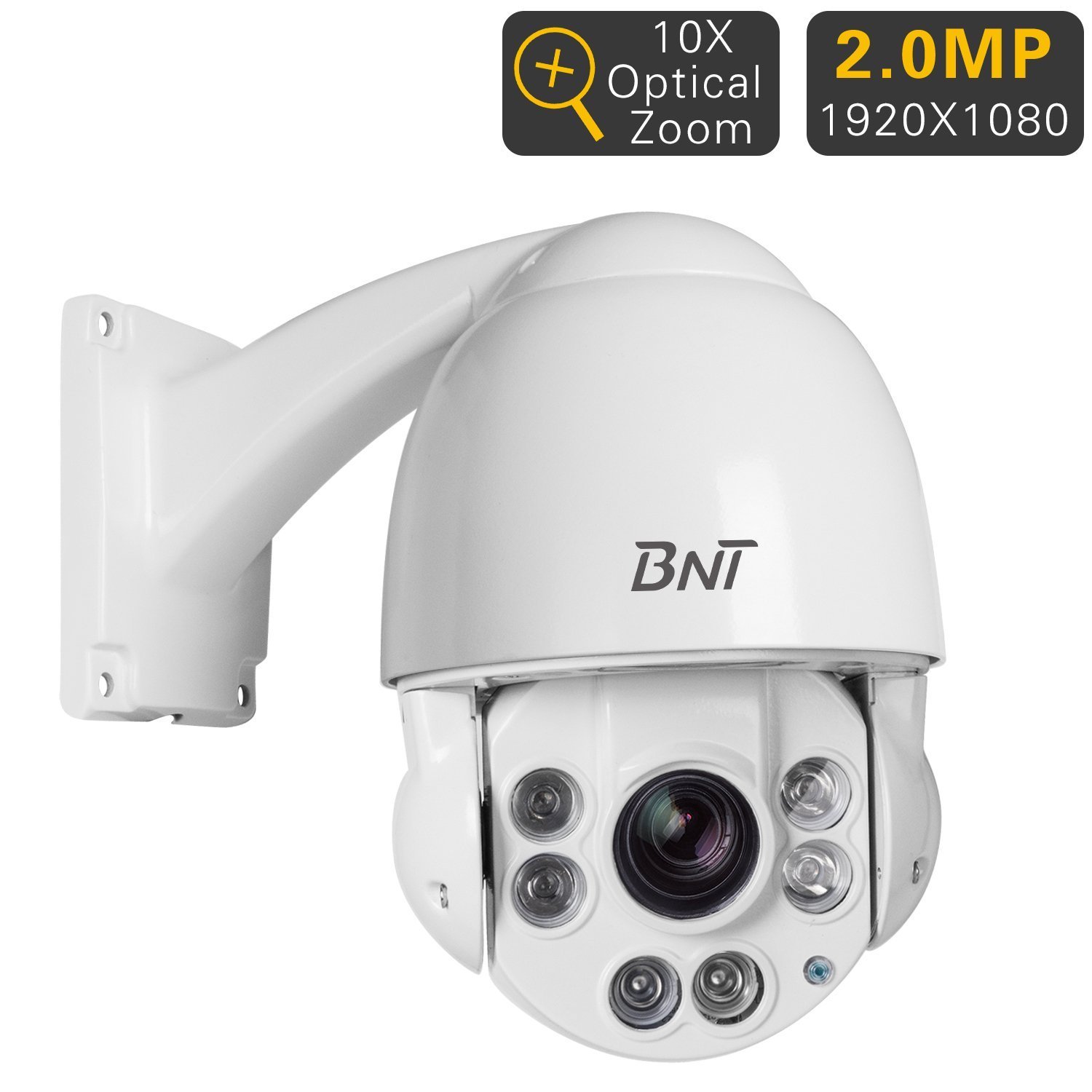

10 times optical zoom 1080P

Product specification:

Number of pixels: 1080 P (1920 X 1080) 2 million high image quality

Output pixel: 1920 * 1080 @ 30 fps 1920 * 1080 @ 25 fps

Lens: 10 times optical zoom f = 5.1 mm (W) to 51 mm (T) ± 5%

Iris: F1.6 to F1.8

Minimum illumination: Color: 0.1 Lux \ B / W: 0.01 Lux / IR ON: 0 Lux

S / N ratio: ≧ 50 dB

Communication protocol: TCP / IP, HTTP, FTP, RTSP, UPnP, DNS, NTP, RTP, UDP, IGMP

Software control: IE, CMS, management platform

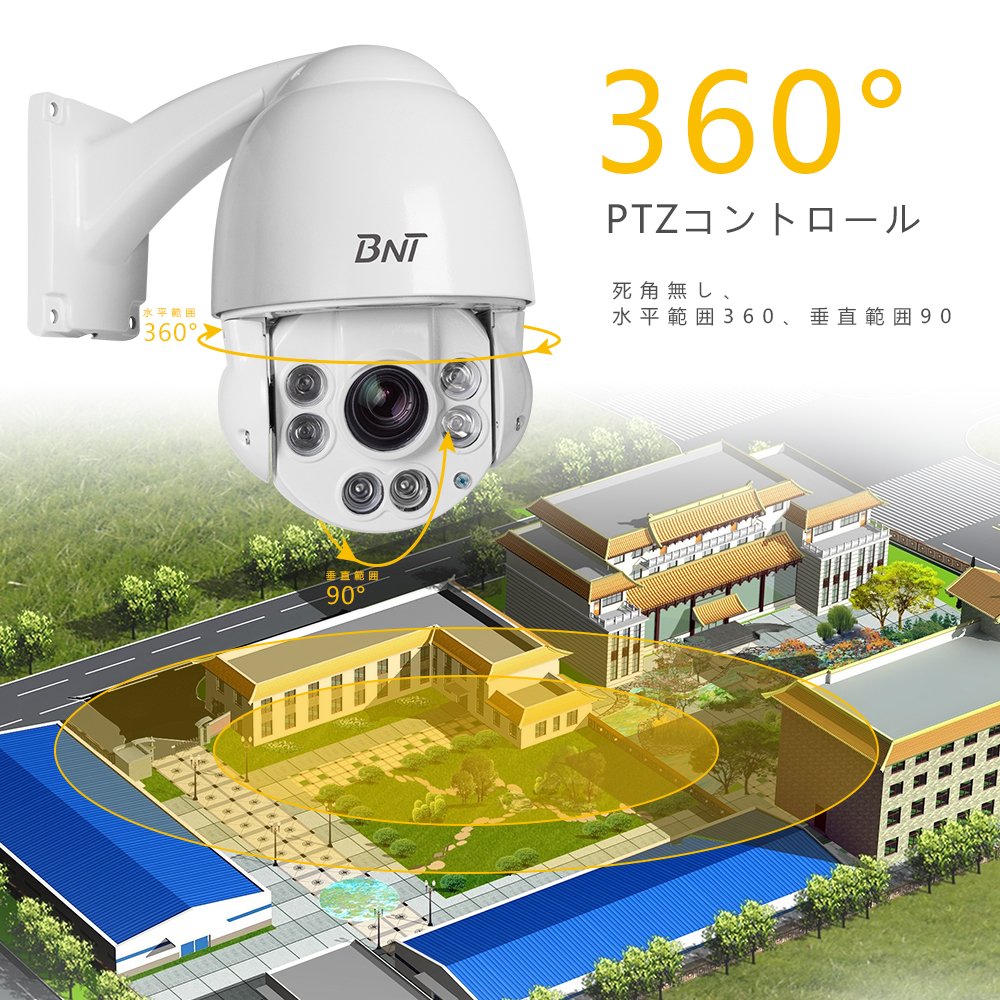

Horizontal rotation range: 360 ° Horizontal rotation speed: 0.02 ° / s - 45 ° / s

Tilt rotation speed: 0.02 / s - 30 / s

Auto Flip: Horizontal 180, Vertical 93 °

A-B Scan: User programmable

A-B Scan speed: 1 to 9 levels can be set

Dwell preset: 1 to 60 seconds interval

Preset speed: 01 ~ 64 levels available

PWR ON operation: Memory / Tour 1/360 ° Scan / A-B Scan / Preset 1-8 / None

Park time: 01 - 60 minutes available

Guard point: Up to 16 points, user selectable dwell time

Operating temperature: Indoor: 0 ° to + 40 °, outdoor: -40 ° to + 60 °

Automatically controlled IR LED: PWM

Supports ambient light detection: 1 to 15 grade IR lighting can be selected

Lightning protection: Transient voltage 6000 V

package:

1 * 1080P PTZ dome camera

1 * Power adapter (PSE approved)

1 * CD

1 * Japanese User Manual

1 * Screw bag

1 * warning sign

Features:

• 【Automatic tracking · 10 times zoom】 220 preset point, 3 group guard tour, maximum support per tour.
• 16 preset points, A-B scan, LED array 42 Mil, 150 feet, 360 degree rotation.
• It is possible to 10 times moose, even if the image is enlarged it is perfect!
• 【High Quality · Long Distance Night Vision】 High fidelity and fine reproducibility of shooting scenes with high performance 2 million pixels 1/3 "CMOS sensor (full HD 1080P), with 6 large red line LEDs, night vision distance of 50 m
• Up to 50 meters distance is possible.
• 【Rear-Time Monitoring · Easy Handy】 There are three methods.
• ① If you connect directly to the router without using a monitor, you can remotely monitor computers and smartphones.
• ② It is to connect to POE NVR or IP NVR.
• You can display it on a smartphone or PC in this way, or you can connect it to an HD monitor.
• ③ It is connecting to PTZ keyboard controller.

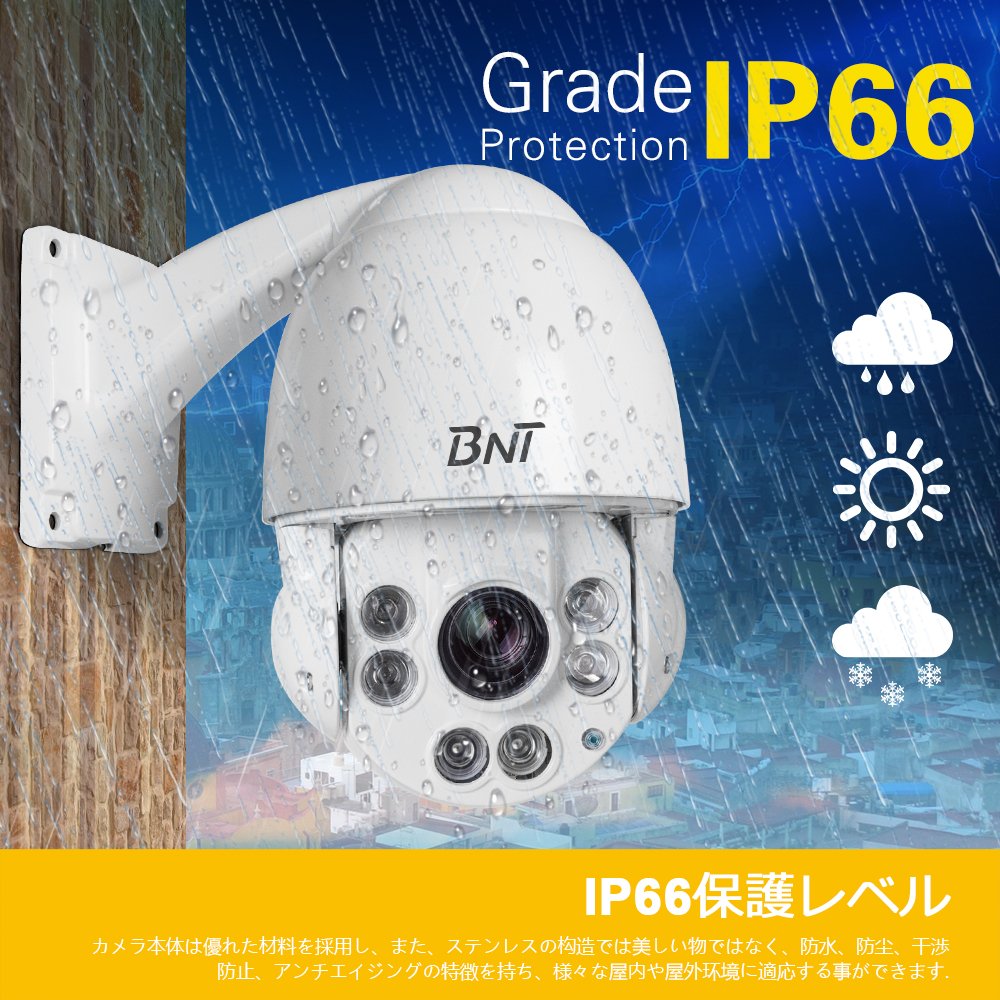

• 【High Performance Waterproof / Lightning Stop Prevention】 Designed double full metal structure, IP66 waterproof standard and 6KV lightning prevention function.
• You can install it outdoors even if it gets wet with light rain.
• 【High quality red light · 2 year warranty】 Unique PWM infrared light control technology, brightness uniform, low calorific value, infrared lamp life can be extended more than 3 times.
• If you have any questions or problems, please do not hesitate to contact us.

Product information:

Shipping Weight: 2399 g

Package Dimensions: 17.80 x 28.40 x 29.59 cm
