Item Descriptions:

color:

black

This product has two functions of connecting the two HDMI displays, switching the display of the output destination as necessary, and switching the source by connecting two PCs or players to one display

Bidirectional

4K2K (2160P) video support

It is an HDMI switching device.

Aluminum body is very light and small, so it is convenient to carry.

You can switch between two PCs at a conference or presentation.

Adopted gold-plated plug on the connector terminal.

All HDMI ports are gold-plated and strong against rust and prevent signal degradation.

It corresponds to various HDMI equipment such as HDD recorder, Blu-ray, projector, PS 4 · PS 3 · Xbox 360.

HDMI 2.0 compatible

Maximum 4 K / 60 Hz (4096 × 2160 @ 24 fps or 3820 × 2160 @ 30 fps, 3820 × 2160 @ 60 fps)

HDCP 2.2 compatible

It corresponds to the latest protection technology "HDCP".

HDCP is a standard that encrypts the path of sending and receiving digital signals and prevents unauthorized contents.

This product can read accurately even encrypted data.

3D compatible

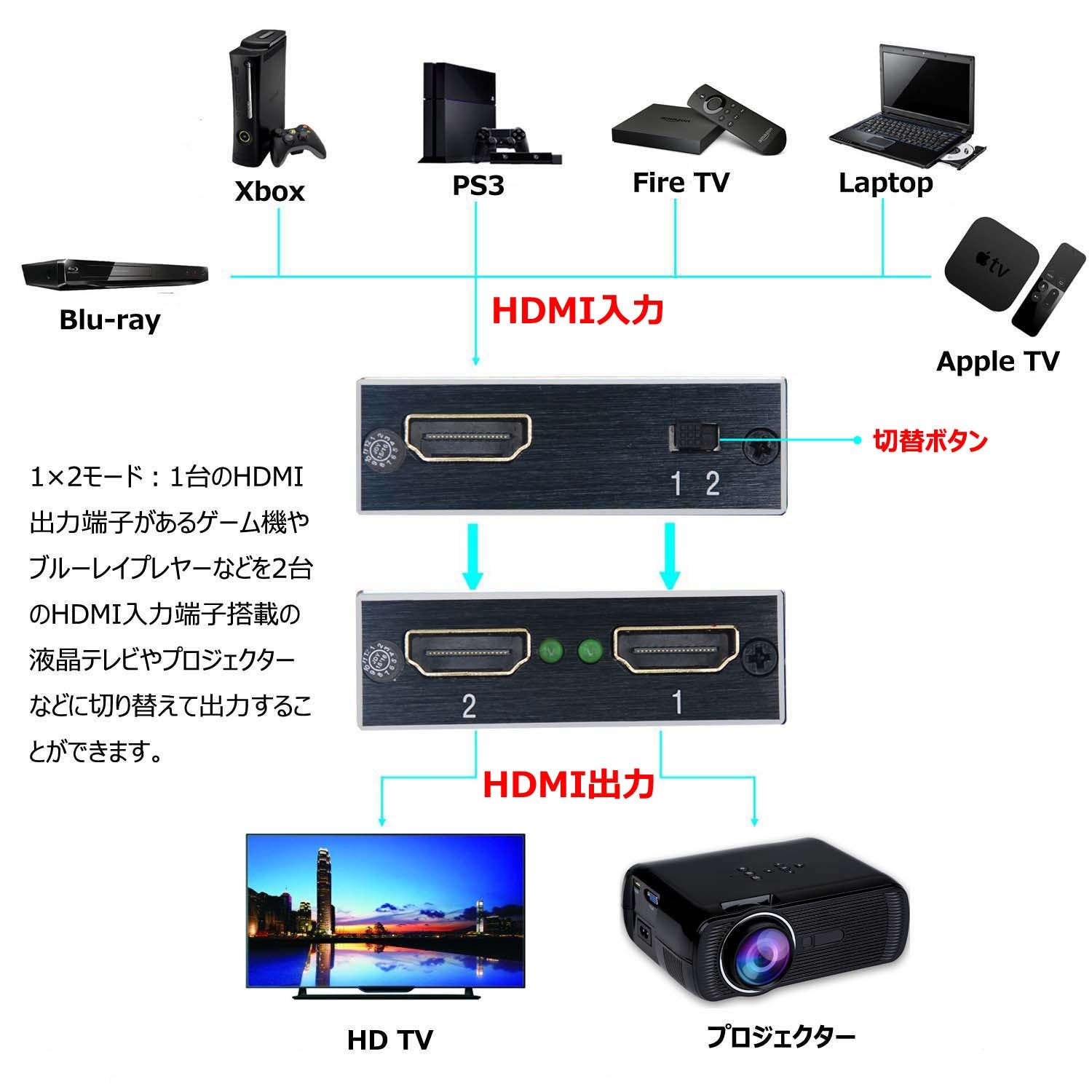

1 × 2 mode:

You can switch and output game machines (PS 3 · PS 4) with one HDMI output terminal and Blu-ray player etc to LCD TV with 2 HDMI input terminals or projector etc.

Note: In 1 × 2 mode, two HDMI ports can not be output at the same time!

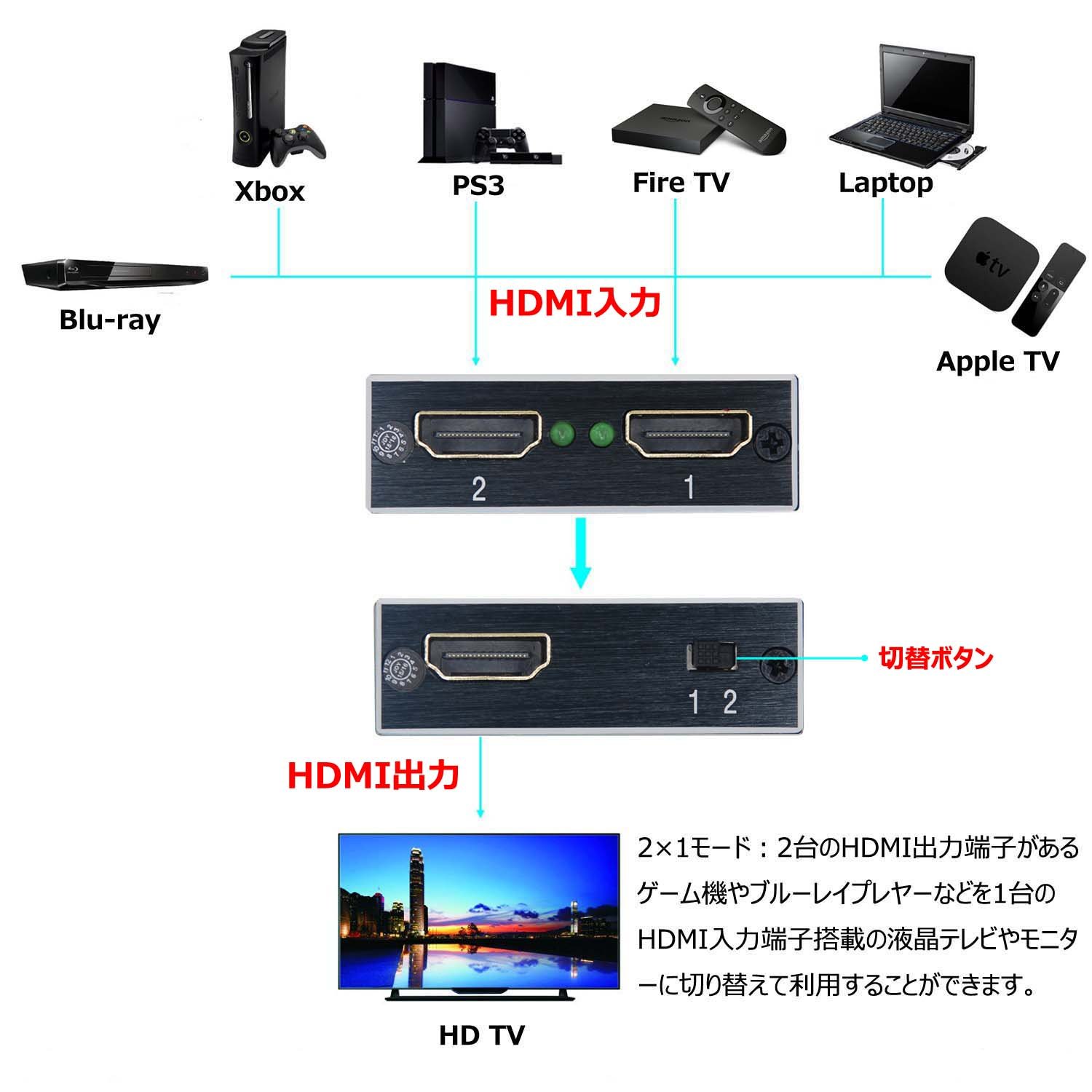

2 × 1 mode:

You can use game machines (PS3 / PS4) with two HDMI output terminals and Blu-ray player etc by switching to LCD TV with one HDMI input terminal or monitor.

please note:

Since there is a possibility that power supply shortage occurs when using with low output HDMI equipment, in this case

Within 1.5 m

We recommend using high standard HDMI cable.

Especially

4K

, In order to stabilize the output,

4K compatible Premium cable within 1.5m

Please use.

This machine

No ARC compliant

※important※

When using this product to PS4Pro, 4KHDR may become unstable or may not reflect due to the setting of PS4Pro or TV side, compatibility with 4KTV, compatibility with HDMI cable, etc. Therefore,

Please acknowledge it beforehand, thank you for purchasing.

★ Product specification ★

HDCP 2.2 --- 4 K / 60 Hz (signal source and display also require HDCP 2.2)

HDCP 1.4 --- 4 K / 30 Hz

HDMI version: HDMI 2.0v HDMI 1.4v (backward compatible with HDMI 1.0, 1.1, 1.2, 1.3 is possible)

HDMI resolution: 4 K × 2 K / 1080 P / 1080 i / 720 P / 576 P / 576 i / 480 P / 576 i

Supported video color format: 24bit / deep color 30bit, 36bit, 48bit

Supported audio formats: PCM 2.0, 5.1, 7.1 CH / Dolby Digital 5.1 / DTS 5.1 / Dolby DTS-HD / Dolby-true HD / DTS / Dolby-AC 3 / DSD HD etc.

3D compatible

Input / output TMDS signal: 0.5 to 1.5 Volts p - p (TTL)

Input / output DDC signal: 5 Volts p - p (TTL)

Input cable distance: ≤ 5 m AWG 26 HDMI standard cable

Output cable distance: ≤ 5 m AWG 26 HDMI standard cable

Working temperature: -15 ° C to + 55 ° C

Work humidity: 5% to 90% RH (noncondensing)

Body size (approx.): 50 × 50 × 15 mm

Body weight (approx): 43 g

set content

1 x body

1 x Instruction Manual (English)

Features:

• Please enter model number Confirm this is compatible:
• [BLUPOW] It has two functions of connecting two HDMI displays, switching the display of the output destination as necessary, and switching the source by connecting two PCs and players to one display
• It is a bidirectional HDMI switch.
• 1 x 2 mode: You can switch and output game machines (PS 3, PS 4) and Blu-ray players with one HDMI output jack to LCD TVs and projectors equipped with two HDMI input terminals.
• 2 x 1 mode: You can switch game machines (PS 3, PS 4) with two HDMI output terminals, Blu-ray player etc to LCD TV with monitor with HDMI input terminal or monitor.
• It corresponds to high definition image of full Hi-vision, audio transfer is also supported.
• Resolution: 4K x 2K (4096 x 2160 @ 24 fps or 3820 x 2160 @ 30 fps, 3820 x 2160 @ 60 fps), 3D, 1080 p, HDMI 2.0, HDCP 2.2 compatible.
• HDMI audio formats such as PCM 2.0, 5.1, 7.1 CH / Dolby Digital 5.1 / DTS 5.1 / DTS-HD / Dolby-AC 3, etc.
• Easy to connect, no power supply required.
• The gold plating process is applied to the HDMI terminal, it is strong against rust, and signal deterioration is prevented.
• Note: In 1x2 mode, two HDMI ports can not be output at the same time!

Product information:

Shipping Weight: 322 g

Package Dimensions: 3.40 x 11.20 x 15.19 cm
