Atomization head diameter: Φ46mm high H25mm
Wire specifications: black 3.8mmPVC line, long L1200 ± 20mm
Plug Type: Φ 5.5 × 2.1mm female plug
Rubber plug: Φ 12mm
1. Place the nebulizer in a water container and inject clean water into the container until the water level exceeds 50 mm of the atomizing sheet (ie, the water level should exceed 0.5-2 cm for the door or 1 inch).
2. Connect the power supply of the nebulizer to the transformer, and then turn on the power to the transformer (note that the input voltage of the transformer must match the local voltage). The LED on the nebulizer lights up to indicate that the nebulizer is running State, at the same time began to fog and produce a small fountain, no LED atomization movement is a direct water mist.
3. The atomizer has the function of automatic water cut protection. If the water level is lower than the sensor, the atomizing head will stop working automatically and the dry burner will damage the atomizer for a long time.
Please refer to the following steps to replace the atomized sheet:
1. Unplug the power and remove the atomizer from the container.
2. Insert the key into the press ring with the key and twist the ring in the counterclockwise direction.
3. Remove the old atomized film, put on a new atomization film; pay attention to the front and back of the atomization film, re-install
No black side of the ring up. Refer to the assembly drawing to install the components correctly.
4. Before installing the components, make sure that the atomization chamber is completely dry.
Question one:
Install the nebulizer, turn on the power, the power indicator on the surface of the atomizer is bright but not spray
reason analysis:
1, the water is not high enough, the water does not exceed the water level door-type sensor switch;
2, the water level sensor switch surface of the heat shrink tube rupture or damage;
3, the atomization of the energy piece rupture or by.
solution:
1, to the container to add water, so that the liquid level to achieve the best atomization range.
2, cut off the power, check the water level sensor switch and atomization transducer is broken or damaged. If the water level sensor switch surface of the heat shrinkable tube rupture or damage, can be dry in the sensor switch with a waterproof adhesive adhesion rupture or damage, pay attention to the adhesive layer can not be too thick, the thickness of the best less than 0.6mm. If you are replacing the energy meter, please replace the atomizer.
Question 2:
Install the nebulizer, turn on the power, and the power indicator on the atomizer surface is off and no spray
Cause Analysis:
1, the atomizer and the transformer power plug is not properly docked.
2, the transformer input plug and external power supply is not properly docked.
3, the transformer is damaged.
4, the atomizer is damaged.
Solution:
1, the power cord plug out and then re-correct docking.
2, if the transformer or atomizer is damaged, you need to replace or please repair the transformer, atomizer.
Question 3:
Install the atomizer, turn on the power, the atomizer surface of the power atomizer only spray the water column is not spray
Analyze the reasons:
1, water quality deteriorated.
2, the water contains oil and other ingredients lead to excessive water surface tension.
3, the surface of the transducer plate deposited too much scale.
4, the atomization of the energy meter over the life of the deadline and failure.
5, the water is too high, more than the best atomization of the liquid range.
Solution:
1, the regular replacement of the water in the container or water into a small amount of edible vinegar (about 0.2 ml per liter of edible vinegar), to destroy the surface tension of water.
2, clean the atomizer to change the surface of the scale or replace the atomization film.
3, the water surface to the best atomization of the liquid range.
Precautions:
1, do not turn on the atomizer after power is turned on, this will damage the atomizer.
2, please ensure that the daily running time of not more than 10 hours.
3, do not touch the atomizer when the atomizer is running.
4, to ensure water quality, please use clean tap water. (Deterioration of water quality will affect the service life)
5. Turn off the power before moving or servicing it.
6, atomized tablets are consumables, the service life of about 3000 hours, such as the fog was found to significantly reduce the amount of atomization Please use a cotton swab cleaning atomization film (without any cleaning agent), to keep the atomization of the clean. If you find that the amount of fog after cleaning is still very small, please replace a piece of atomized film.
A: decorate the family garden, park, community environment. Architectural design model effect.
B: food preservation: supermarket food, vegetable counters, cake dessert shop.
C: Vegetable greenhouses. Farms. Orchid room.

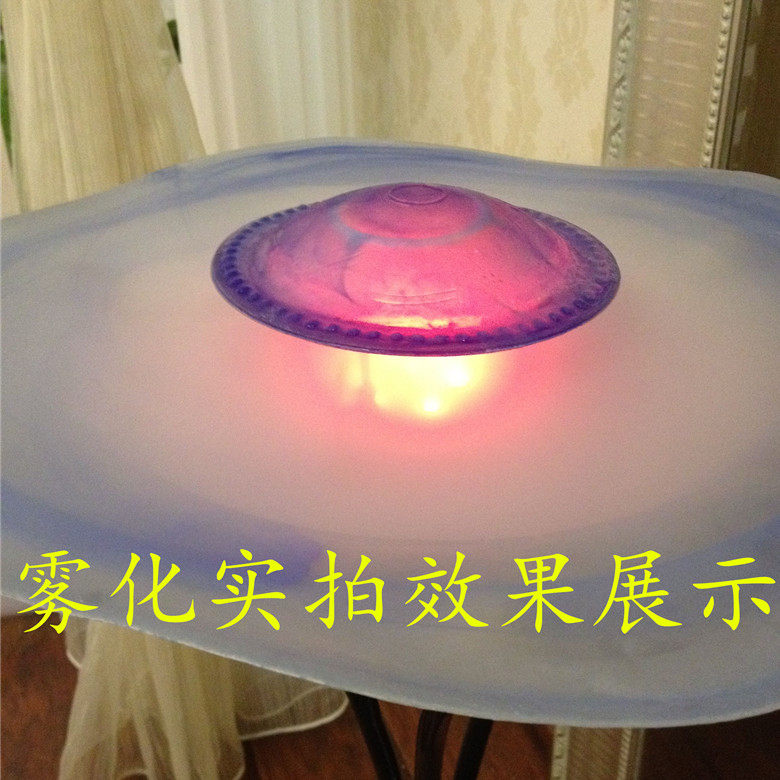

Atomized head at the same time work a lot of fog. So that you are in Yaolin Wonderland.
